Femco Drain Plug Systems
Drain plug/Standard Femco System
What are the benefits of the
Femco® drainage system?
- Less downtime during maintenance.
- The ability to safely drain oil
at operating temperature.
- Used oil is collected in a collection tray,
thereby eliminating the risk of spillage.
- Prevents thread damage.
- No heavy wrenches needed, just the drain hose.
- Prevents environmental pollution during on-site maintenance or mobile service.

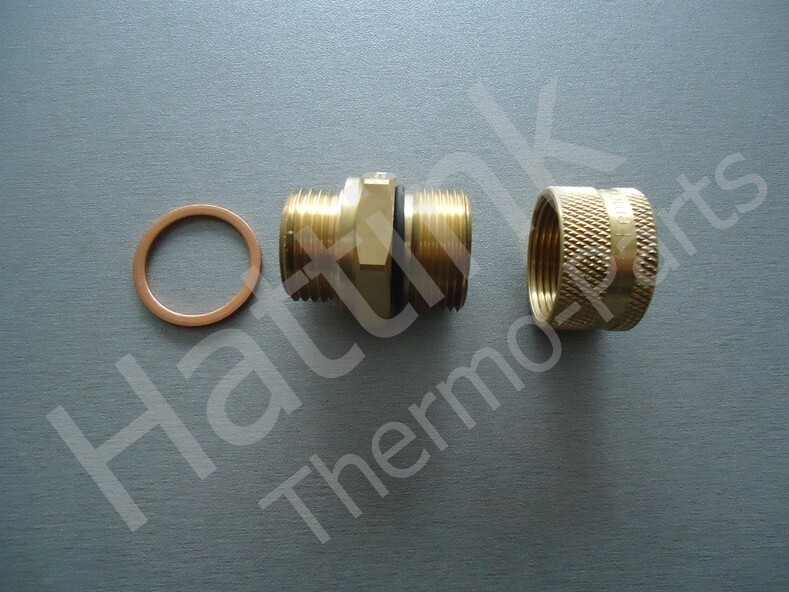

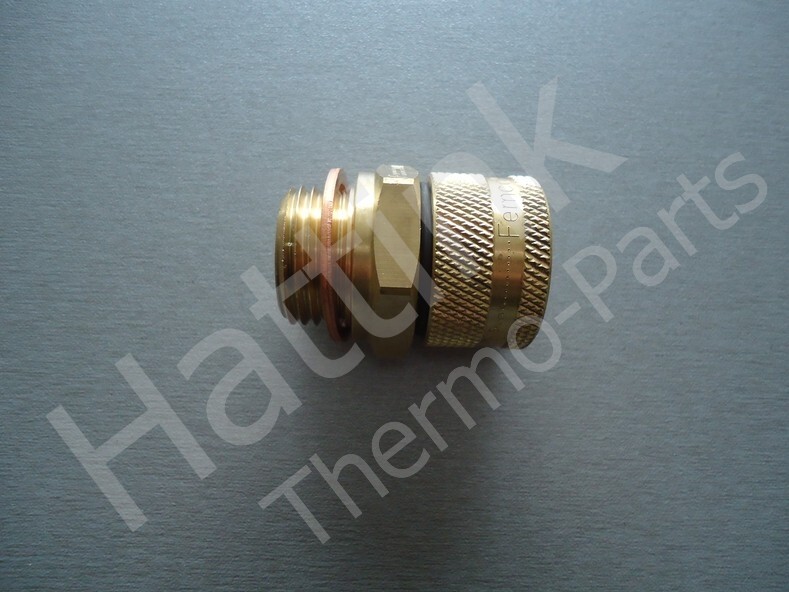

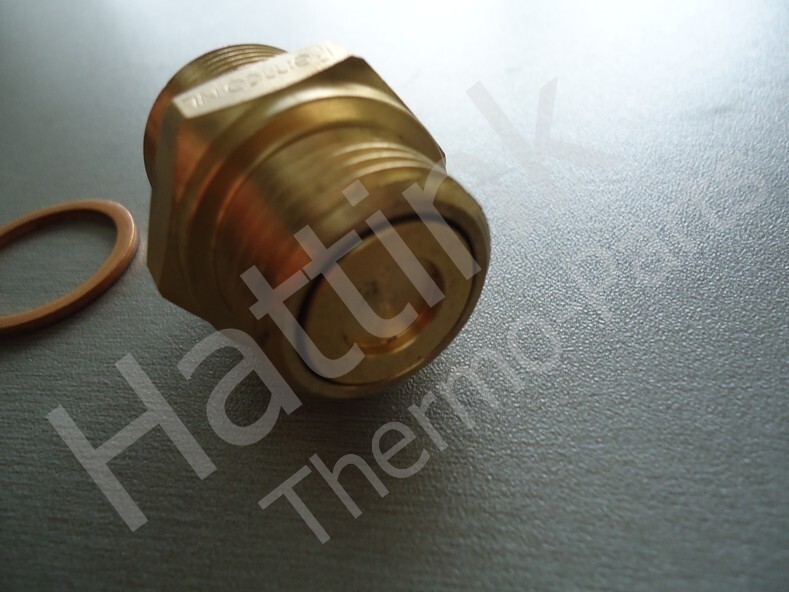

Drain plug LB M24x2.0-T12
Type: Standard Drain plug
Brand: Femco
Version type: Large Bore(LB)
Thread connection: M24x2.0
Thread depth with sealing ring: 12mm(T12)
Drain plug height from: 30mm (A)
Cap width: 30mm (B)
Wrench size: 30 (Hex)
Sealing ring thickness: 2mm (S)
Sealing ring Red/Copper:
29.6mm x 24.4 x 1.9
Caution important!!!
Tightening torque 40 Newtons
OE code number:
FA-6090020057/FA 6090020057
8719831411764/FA-8719831411764
Article description:
Femco Drain Technology
Standard M24x2.0-T12
Part no. 8090020426
Torque 40 Newton
Made in The Netherlands
137 grams / 152 grams
To be mounted on the following
vehicles/machines with this
same oil drain
connection: M16x1.5-T10
Femco Drain plug interchangeable
with the following oil drain plugs from:
ISUZU Engine
ISUZU 4HK1
ISUZU 4JJ1
ISUZU 4L2X
ISUZU DH10H
ISUZU 6BF1
ISUZU 6QA1&2
ISUZU 6RA1
ISUZU 6RB1
ISUZU 6SA1&2
ISUZU 6SB1
ISUZU 8PA1
ISUZU 8PB1
ISUZU 8PC1
ISUZU 10PA1
ISUZU 10PB2
ISUZU OPC1
ISUZU 10PE1
ISUZU 12PB1
ISUZU 12PC1
ISUZU DA220
ISUZU DA640
ISUZU E120
ISUZU Tier3
Femco Drain plug interchangeable
with the following oil drain plugs from:
Volvo Engine
Volvo FH16
