Femco Drain Plug Systems
Drain plug/Standard Femco System
What are the benefits of the
Femco® drainage system?
- Less downtime during maintenance.
- The ability to safely drain oil
at operating temperature.
- Used oil is collected in a collection tray,
thereby eliminating the risk of spillage.
- Prevents damage to threads.
- No heavy wrenches needed, just the drain hose.
- Prevents environmental pollution during on-site maintenance or mobile service.

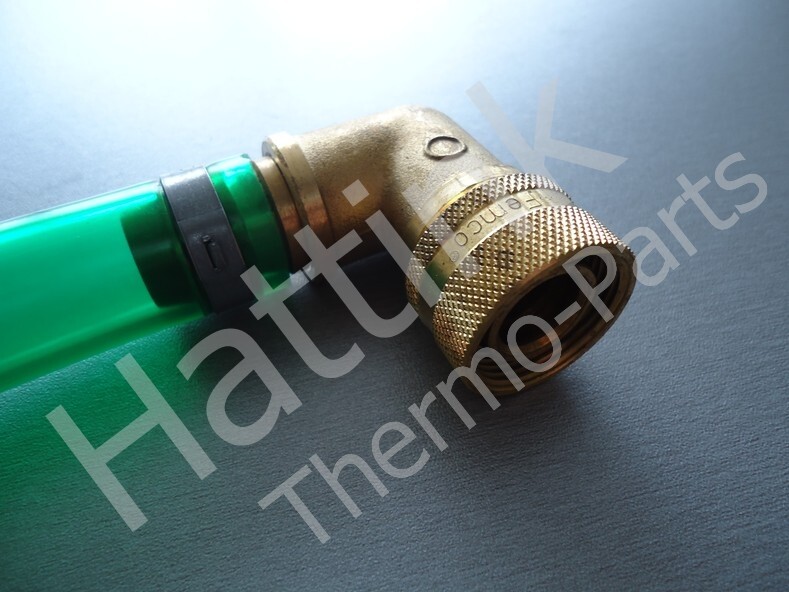

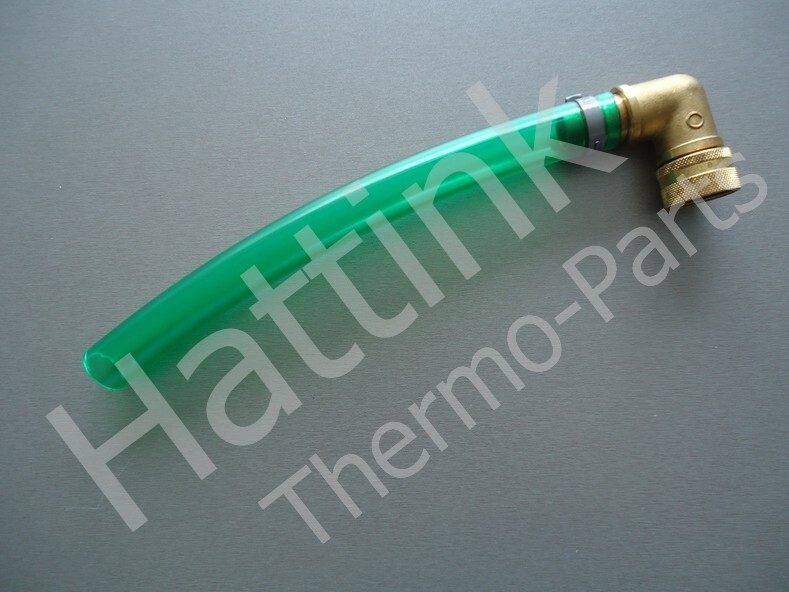

Drain pipe with a 90° angle and a 25 cm hose.
Drain coupling M26x1.5
Type: Standard Drain Coupling
Brand: Femco
Type: Large Bore (LB)
Thread connection: M26x1.5
With hose barb: 19mm
Drain plug height from: 30mm (A)
Cap width: 20mm (B)
Operation: Manual
With 25 cm transparent green hose.
O-ring Sealing ring:
mm x x
OE code number:
FA-650108/FA 650108
F0020290015/F0020290015
Description:
Femco Drain Technology
Angled drainer 90° with hose 25cm
Standard Angled 90° Drain (LB)
Standard LB 90° angled drain
with hose 10″ (25 cm) M26X1.5
Part no. 650108
Made in The Netherlands
211 Gram
