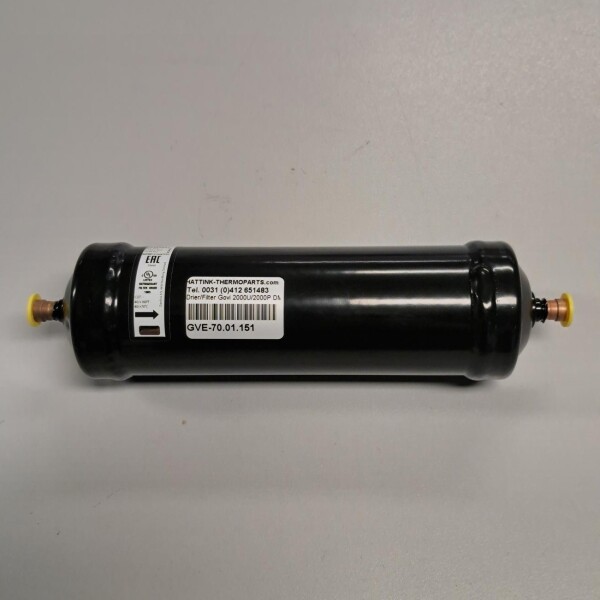

Filter/dryer Danfoss 023Z7007
Used in Type:
Govi unit Artik 2000U
Govi unit Artik 2000P
Product details:
Gross weight:0.695 Kg
Net weight:0.698 Kg
Volume:1,518 Liters
EAN:5702428154734
Type:DMC
Product group:Filter driers
Product Name Description:Hermetic receiver filter drier
Acid capacity [g]: 0.27 g
Acid capacity [oz]: 0.01 oz
Activated alumina [%]:0 %
Approval: UL
Body material:Steel
Braket:No
Brand: ELIMINATOR
China RoHS compliance: Yes
China RoHS exemption clause: No
Connection Code:(3001:X:6)
Connection material:Steel Cu-plated
Contains batteries: No
Core:Solid core
Core Size code: 20 cu.in.
Core type: Solid core
Drying Cap[Drops of Water]24°C:
R134a: 126
R290: --
R32: --
R404A: 132
R407C: 123
R410A: 115
R507: 138
Drying Cap[Drops of Water]52°C:
R134a: 116
R290: --
R32: --
R404A: 125
R407C: 113
R410A: 102
R507: 124
EU RoHS compliance:Yes
EU RoHS exemption clause:No
Filter application:High Moisture Capacity
Flow capacity [kW]:
R134a: 6.3
R290: 7.6
R32: 9.6
R404A: 4.4
R407C: 6.4
R410A: 6.5
R507: 4.3
Flow capacity [TR]:
R134a: 1.8
R290: 2.2
R32: 2.7
R404A: 1.3
R407C: 1.8
R410A: 1.9
R507: 1.2
Flow direction indicator:
Label printed 1-way arrow
Fluid Group: 2
Inlet connection size [mm]: 6 mm
Inlet connection type: Solder, ODF
LiqCap Cond (ARI 710-2009)[SI]:
Delta p=0.07bar
tliq= 30°C
tvap=-15°C
LiqCapCond (ARI 710-2009)[IMP] Delta p=1psi
tliq= 86°F
tvap=5°F
Lubricants compatibility: Oilfree applications
Max. Working Pressure [bar]: 42 bar
Max. Working Pressure [psig]: 610 psig
Molecular sieve [%]: 100%
Net volume [foz US]: 10.99 Fluid Ounce US
Net volume [l]: 0.325 L
Oil free refrigerators:
R1234ze(E)
R134a
R513A
R515A
Outlet connection size [mm]:6 mm
Outlet connection type: Solder, ODF
Packaging format: per piece
PED category: Art. 4, par. 3
Product description:Combi filter drier
Quantity per packing format:10 pc
REACH Candidate List substances:No
Refrigerants:
R1233zd(E)
R1234yf
R1234ze(E)
R125
R134a
R22/R407C
R23
R290
Read more
Serviceable:No
Shell volume [foz US]:12 Fluid Ounce US
Shell volume [l]:0.35 L
Solid core surface [cm2]:72 cm²
Solid core surface [in2]:11.14 in²
Solid core volume [cm3]:30 cm³
Solid core volume [in3]:1.83 in³
Temperature range [°C] [max]:70 °C
Temperature range [°C] [min]:-40 °C
Temperature range [°F] [max]:160 °F
Temperature range [°F] [min]:-40 °F
Type designation:DMC 2032S
UL approval file name:SA6398
UL approved refrigerators:
R125
R134a
R22
R23
R404A
R407A
R407C
R407F
Read more
UL mark Yes
R449B
R450A
R452A
R507A
R513A
