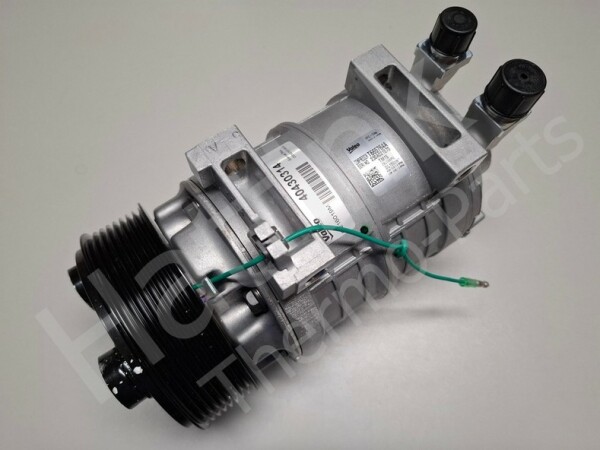

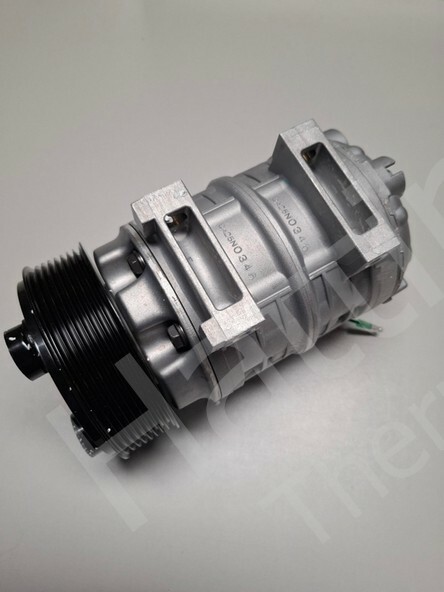

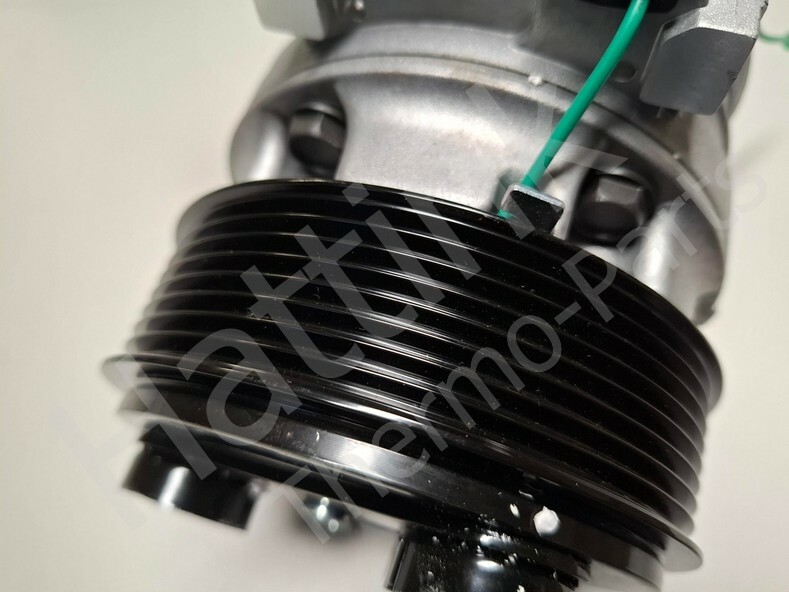

TM15 HD Ø119mm Poly-V 8 24V OR Vertical Direct mounting
Refrigerant R134a
Displacement [cc] 146.7
Compressor Type Valeo TM 15 Direct
Voltage [V] 24

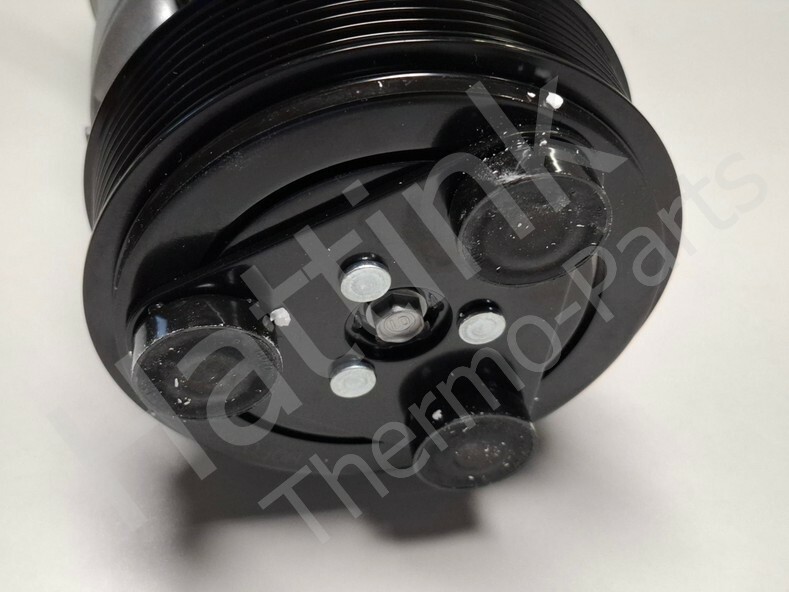

Number of grooves 8 Poly-V
Pulley Diameter [mm] 119

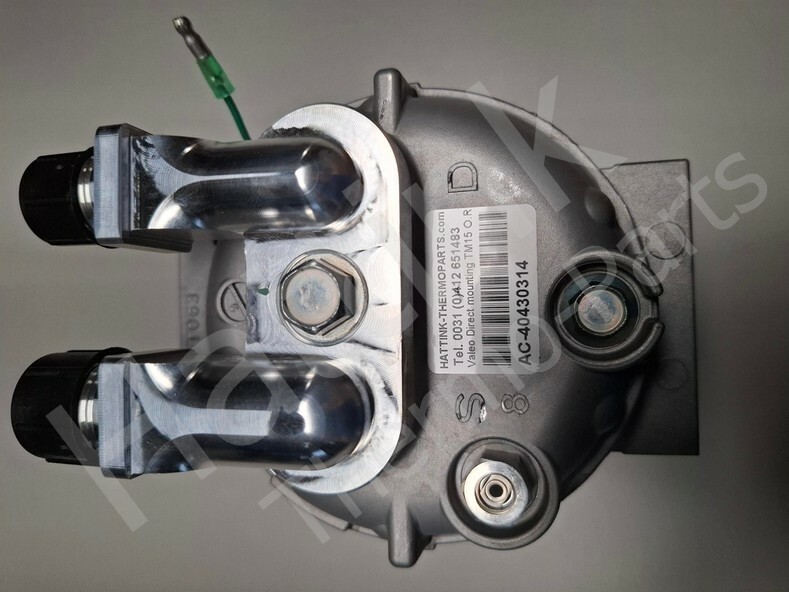

Fittings OR V.
Discharge fitting 3/4" 16UNF
Suction fitting 7/8" 14UNF
Oil Type PAG 46
Oil Quantity [cc] 150
Section Groove [mm] 3.56
Gauge final groove [mm] 46.5
Distance or fixing points [mm] 83.3

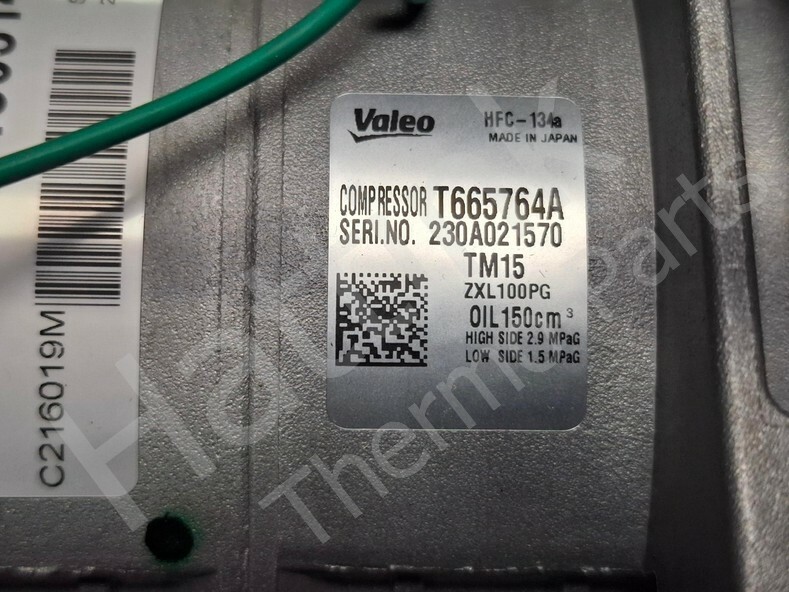

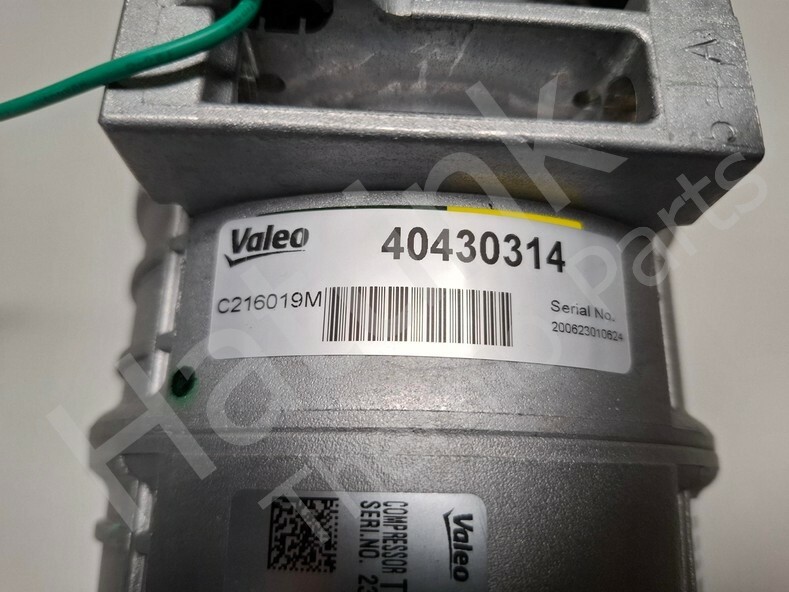

Description on Air conditioning pump:
Valeo
40430314
C216019M
HFC-134a
Made in Japan
Compressor T665764A
TM15
ZXL 100PG
Oil 150cm
High side 2.9 mPaG
Low side 1.5 mPaG
< br/>
< br/>
