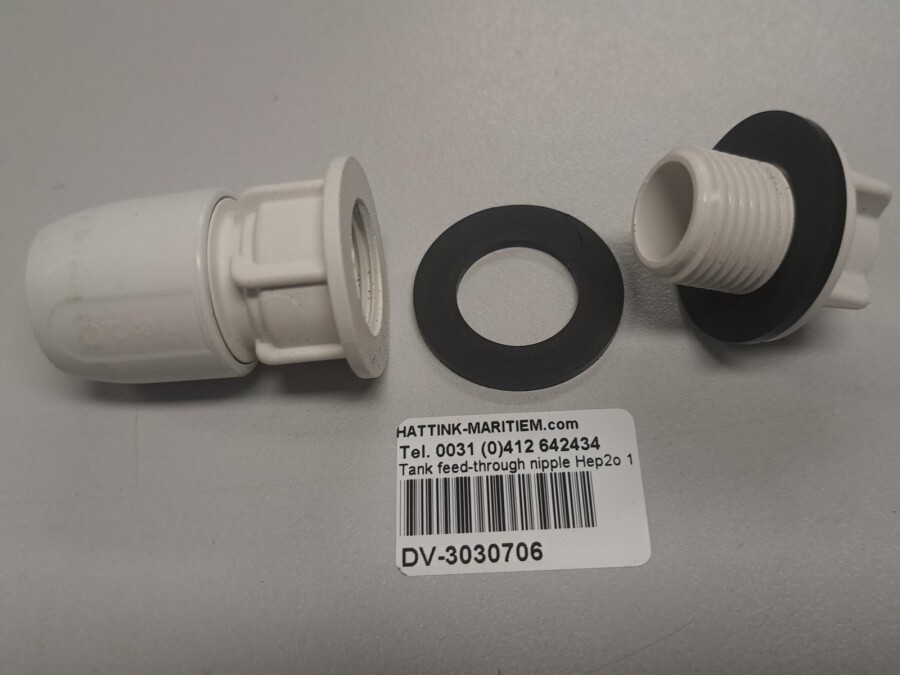

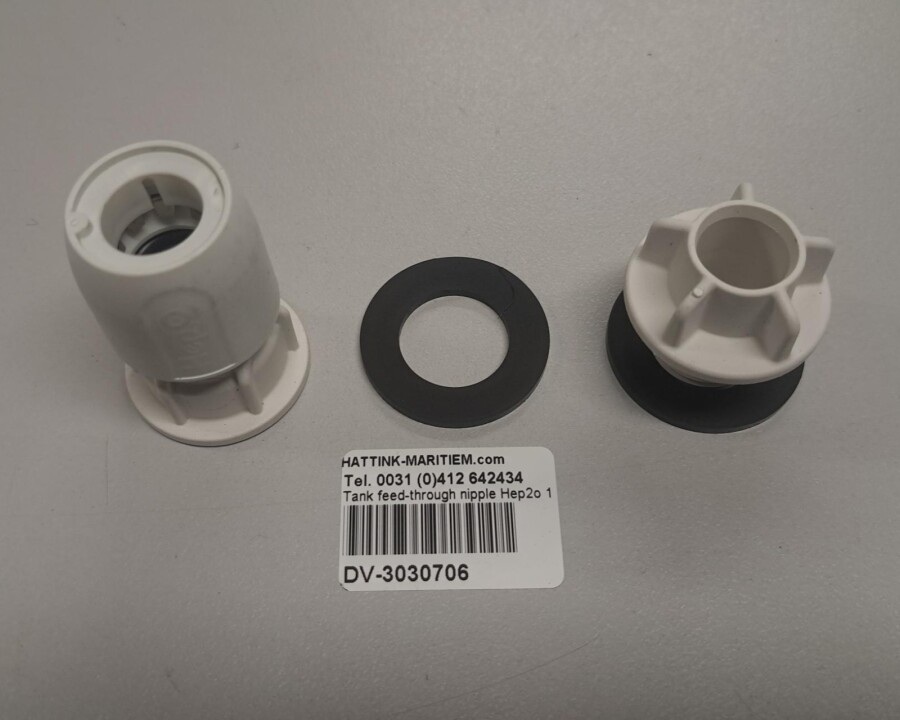

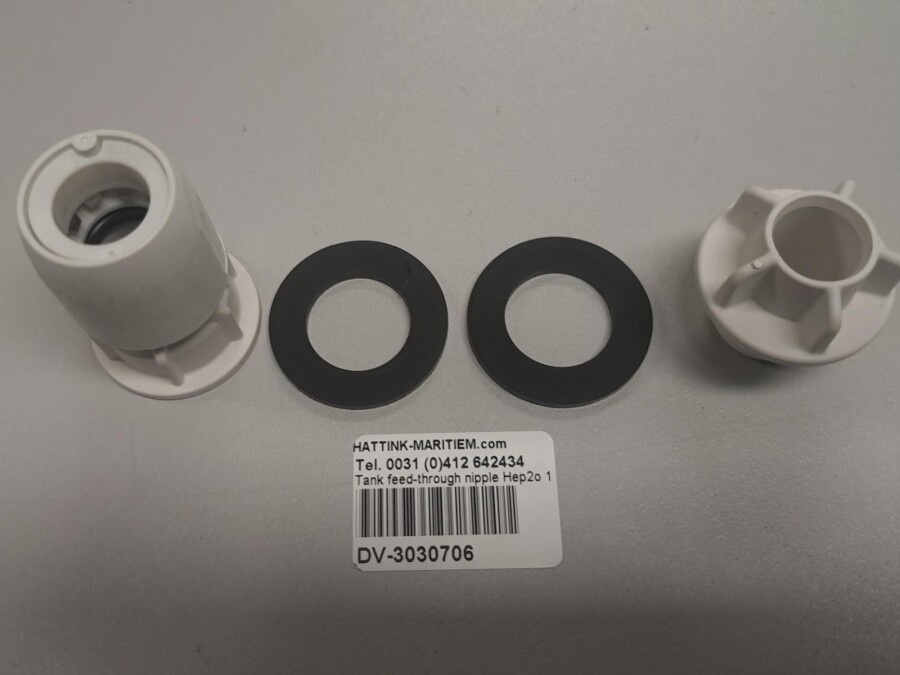

Tank feed-through coupling Hep2o 180° 15mm x1/2BU
Hep2o Push-Fit System
WAV HEP2O TANK GATE-THROUGH 15X1/2BU
Hep2o coupling 180° 15mm
For plastic pipe/tube 15mm
The easy way of working by inserting the
pipe into the coupling and the connection
with the pipe/tube is ready,
Wavin Article Description:
Class: Tank feed-through nipple
Material: Polybutylene (PB)
Surface protection: None (untreated)
Nom. Connection diameter 1: DN 15
Connection 1: Push-in
External pipe diameter connection 2: 15 mm
Remote thread connection size lock nut: 1/2"
Max. working pressure at 20 °C: 12 bar
Operating length connection 1: 0 mm
Operating length connection 2: 0 mm
Zeta value: 0
Max. medium temperature (continuous): 20 °C
Recycle: Yes
Series: Hep2O
Material quality: Other
Shape: Straight
External pipe diameter connection 1: 15 mm
Nom. diameter connection 2: 1/2" (15)
Connection 2: Other
Remote thread connection lock nut: Other
Length connection 1: 32 mm
Length connection 2: 3 mm
System-related: Yes
Contour code: Other
KIWA approval: Yes
OE 4441515122/4677563/391931
39174000/391931/3030706
