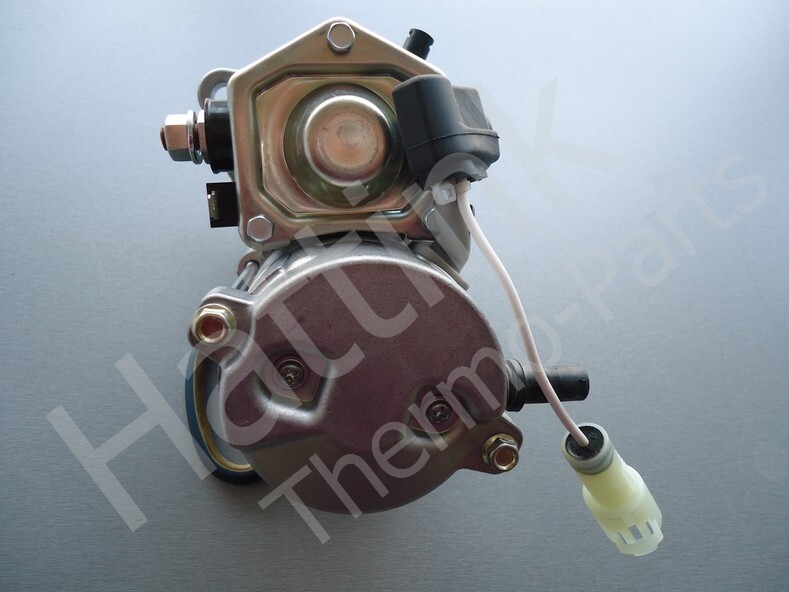

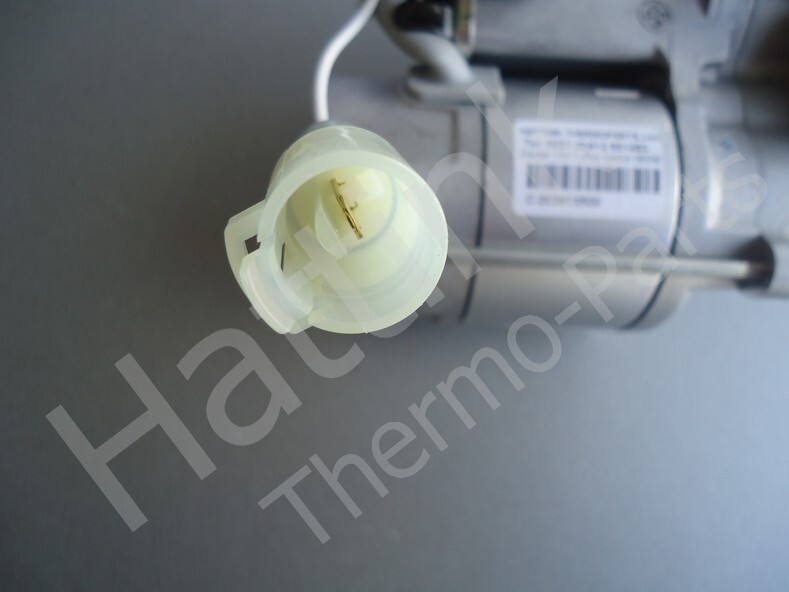

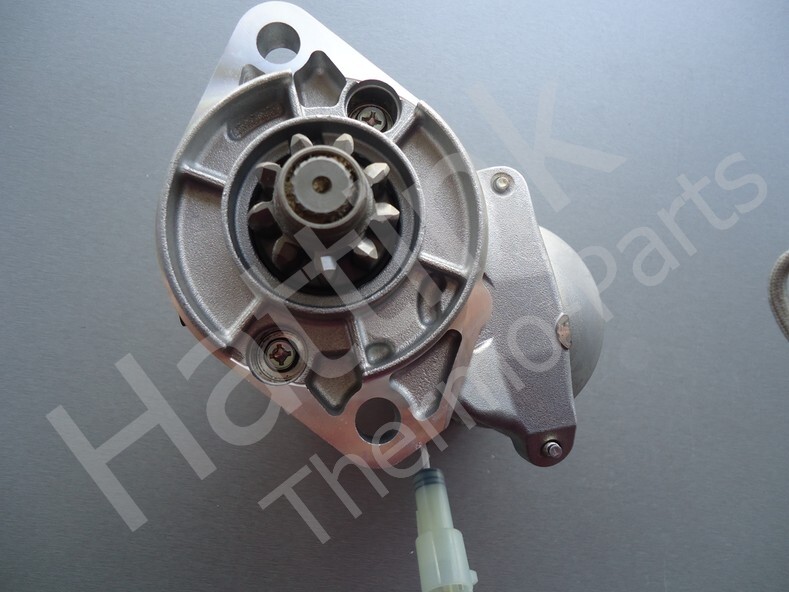

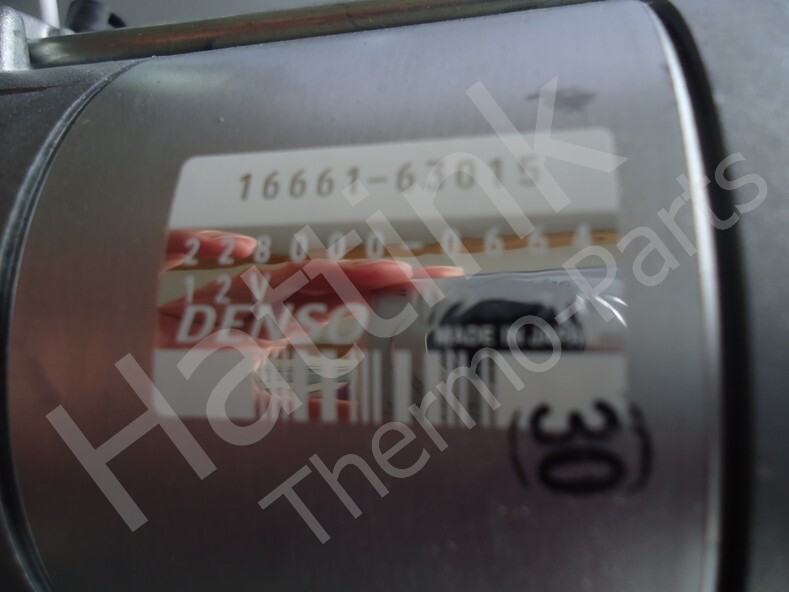

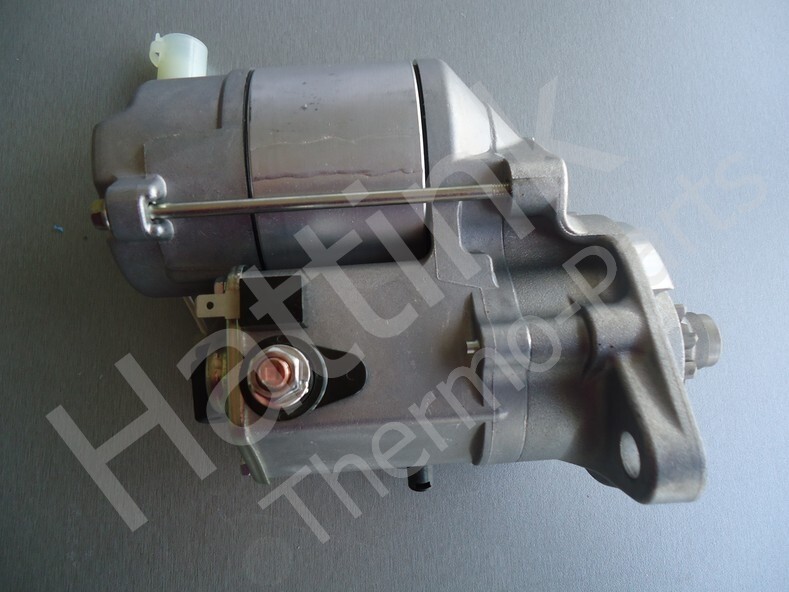

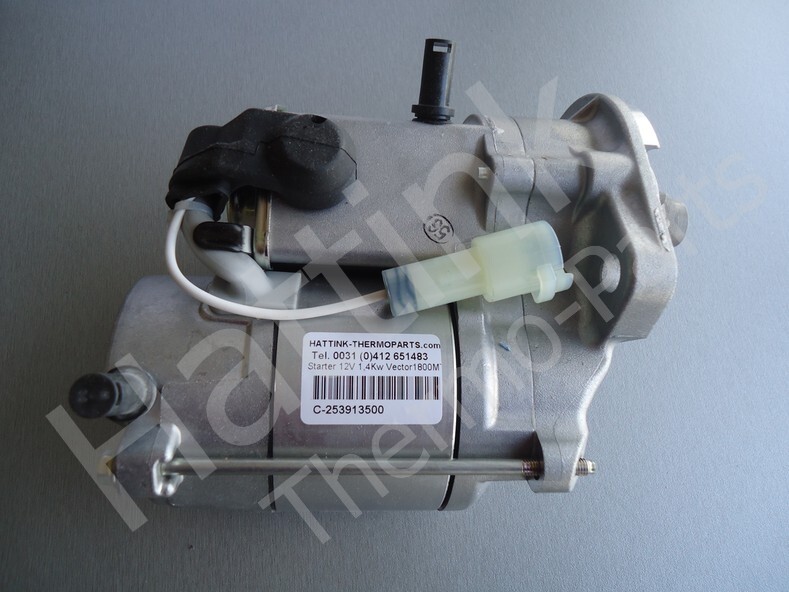

Vector starter motor.
For Carrier Transicold unit types:
Genesis TR100
Ultra
Ultra XL
Vector 1800
Vector 1850
with diesel engine:
CT 4-134 DI
CT 4-134 TV
CT4-114-IDI (V1902-IDI) - All
CT4-114-DI (V1902-DI) - All
CT4-114-TV (V1903-TV) - Prior to S/N 4A0001
CT4-133-DI (V2202-DI) - All
CT4-134-DI (V2203-DI) - Prior to S/N XA0001
CT4-134-TV (V2203-TV) - Prior to S/N 4A0001
Additional info:
Total length from mounting flange: 152mm
Intermediate section: 52mm
A 2kW starter motor may also be installed;
in that case, it is best to replace it with the same type.
You can verify this by checking if the total length is 185mm
and the intermediate section is 70mm.
If so, you should select that starter motor
in the webshop. HC-25-39316-00 (2kW)
Carrier Transicold Description:
Starter
Carrier Transicold no. C-25-39135-00
C-25-39135-00/C-25-39135-00
C-253913500/C 253913500
Old numbers:
25-39700-00/
25-39250-00 1.4 kW
25-39135-00 1.4 kW
25-39135-00RM 1.4 kW
Examples and applications or
Designations and part numbers:
Copying this is not permitted
C253913500 / C-253913500 / C.25.39135.00 / C25-39135-00
C253970000 / C-253970000 / C.25.39700.00 / C25-39700-00
