Femco Drain Plug Systems
Drain plug/Click drain Femco System
What are the benefits of the
Femco® drainage system?
- Less downtime during maintenance.
- The ability to safely drain oil
at operating temperature.
- Used oil is collected in a collection tray,
thereby eliminating the risk of spillage.
- Prevents damage to threads.
- No heavy wrenches needed, just the drain hose.
- Prevents environmental pollution during on-site maintenance or mobile service.

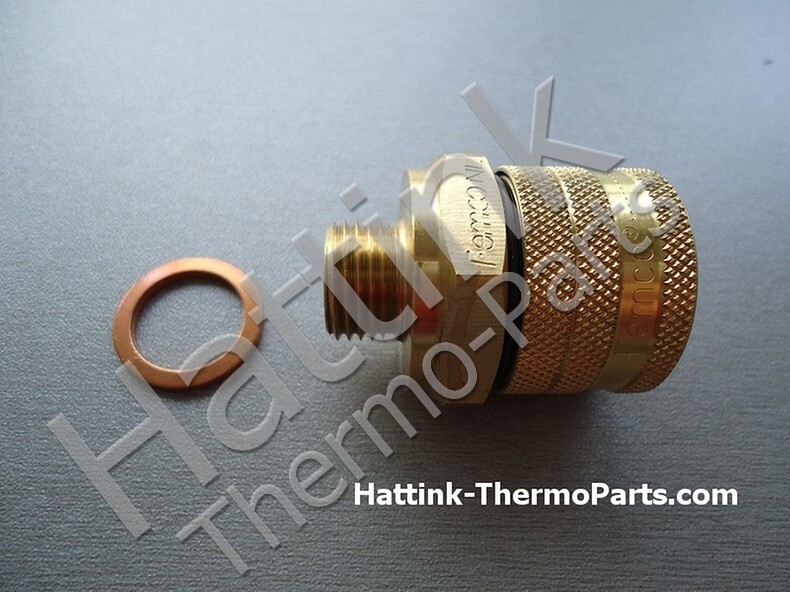

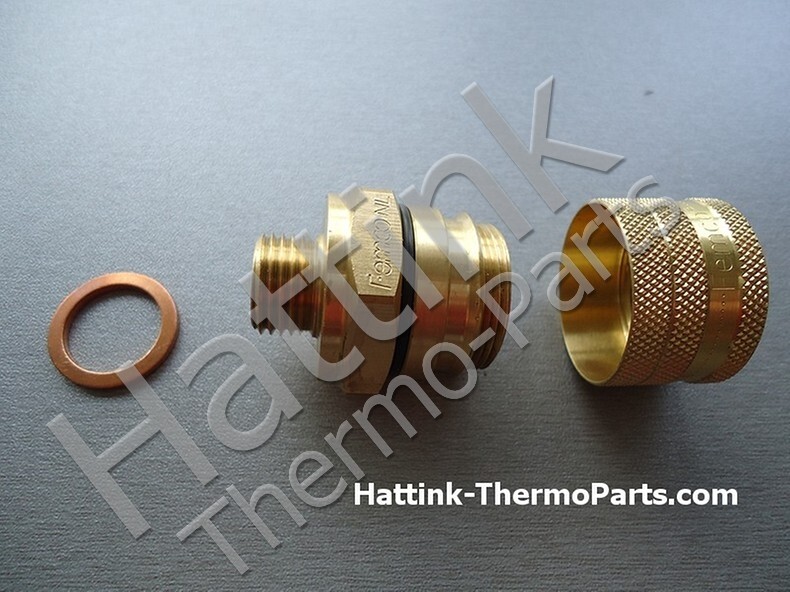

Drain plug LB M16x1.5-T10
Type: Speed-Click
Brand: Femco
Version type: Large Bore(LB)
Thread connection: M16x1.5
Thread depth with sealing ring: 10mm(T10)
Drain plug height from: 32mm (A)
Cap width: 30mm (B)
Wrench size: 30 (Hex)
Sealing ring thickness: 2mm (S)
Sealing ring Red/Copper:
21.8mm x 16.3 x 1.84
Caution important!!!
Tightening torque 25 Newtons
OE code number:
OE 09-7180-04
8719831413010
FA-8090020426/FA 8090020426
8090020426
F0020290242
Carrier no.88-11250-16
Description on item:
Femco Drain Technology
Speedclick M16-1.5-T10
Item no. 8090020426
Torque 25 Newton
Made in The Netherlands
137 grams
To be mounted on the following
vehicles/machines with this
same oil drain
connection:M16x1.5-T10
Femco Drain plug interchangeable
with the following oil drain plugs from:
Caterpillar 299D
Caterpillar XHP
Caterpillar 300.9D
Caterpillar 3011C
Caterpillar 3013C
Caterpillar 3014
Caterpillar 3024
Caterpillar 3024C
Caterpillar 303.5
Caterpillar 303E
Caterpillar 304E2
Caterpillar 305E2
Caterpillar C1.1
Caterpillar C1.5
Caterpillar C1.6
Caterpillar C1.7
Caterpillar C2.2
Caterpillar C22
Caterpillar CH3XL2
Caterpillar 22TIC
Caterpillar XQ20
Femco Drain plug interchangeable
with the oil drain plugs below from:
John Deere (parts & Engines)
OE T111565
Examples and applications or
Names and article codes:
Copying the following texts is prohibited
oil drain plug / oil drain coupling
oil drain plug / oil drain coupling
Hattink-Heesch.com
Replace drain plug with a quick coupling for draining
motor oil saves on labor and costs
reduces cleaning cloths and granules due to no mess
and no more dirty hands either, with the Femco system
Are you environmentally conscious? Use the Femco drain plug system
Clean oil drain system from Femco
Works pleasantly and quickly, saving 50% on labor.
Clean oil drain system from Femco
Drain oil without making a mess with the system from the brand Femco
