Mounting set for mounting a Spal fan
which has this capability for which this set has been developed

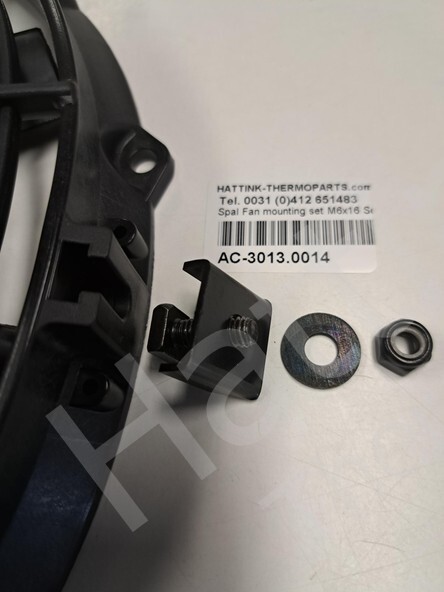

This side-left mounting option is sturdy and safe.
The square head (M6x16) can be used in the existing holder
be slid from the spline grid over it becomes a
U-profile must be slid after which the possibly. bracket/bracket or dot
can be fixed with the supplied washer and nut.

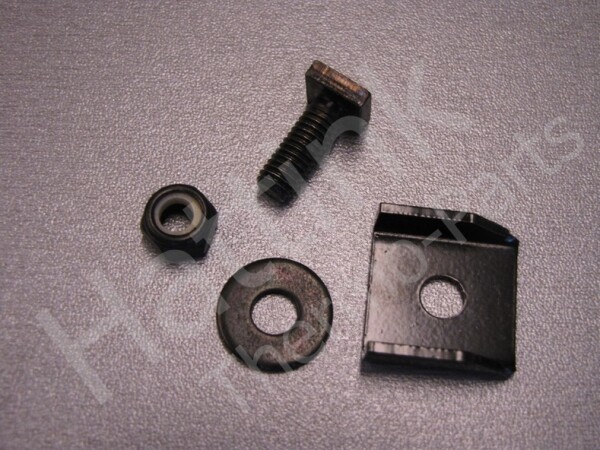

Set consists of:
1x bolt with square insertion head M6x16 (black)
1x locknut for this bolt(Black)
1x washer (Black)
1x u-profile for this bolt (Black)
Hint: possibly. best mounting on 4 sides
