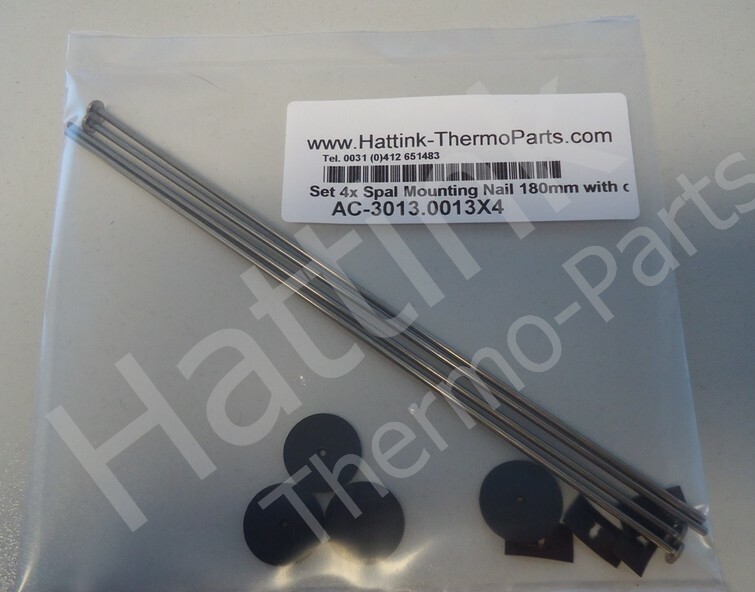

Mounting Nail stainless steel 2mm around 180mm length
For bevesteging by cooler block
the air conditioning condenser, radiator, oil cooler
of a total maximum thickness of 150mm

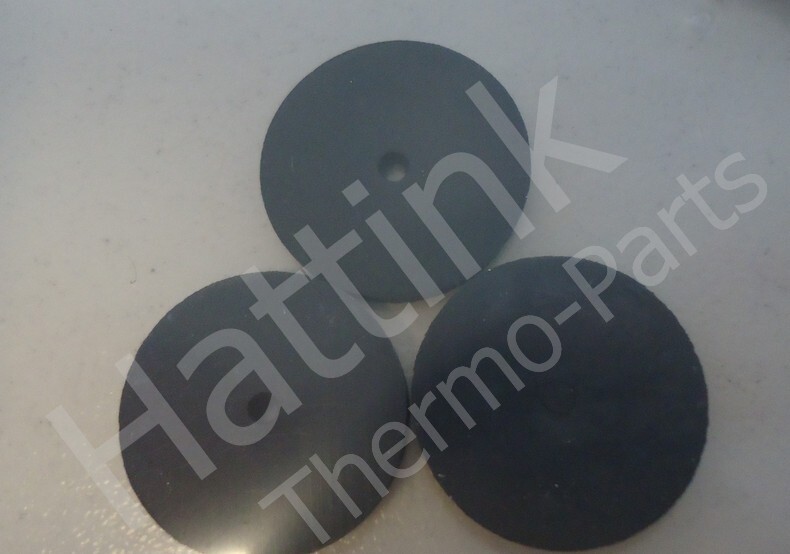

comes with rubber ring to protect cooler block
17.7 mm round 2mm thick.
with spring clamp for stable Mounting Nail.
Fitting advice:
First, select the proper place for mounting the fan
on the block, and that the Mounting Nail by the block
so that it can be properly and securely attached.
Then the stainless steel nail / pin through the
for holes 3,2 mm fan
by stabbing to head of the nail / pin
Possibly. the four large holes of 6.5mm around
a drop of sealant (silicone / windows kit) of 8-9 mm, preferably black
.
in order to prevent it rubbing against the cooler block.
and to mount the fan on the chosen spot
the nail / pin ends by executing the block.
and then to press against fan cooler block.
and sliding the rubber laps over the ends go against cooler block
Then cross the left spring clip with the four-point contact surface on the nail / pin
sliding until it is tight against the rubbering.
Old Artikelcode :
nvt.
Description on Article:
Applications and Examples or
Names and product codes:
It is not allowed to copy this.
C-3013.0013X4/AC3013.0013X4
AC 3013.0013X4
AC-30130013/AC30130013X4
AC 30130013X4
