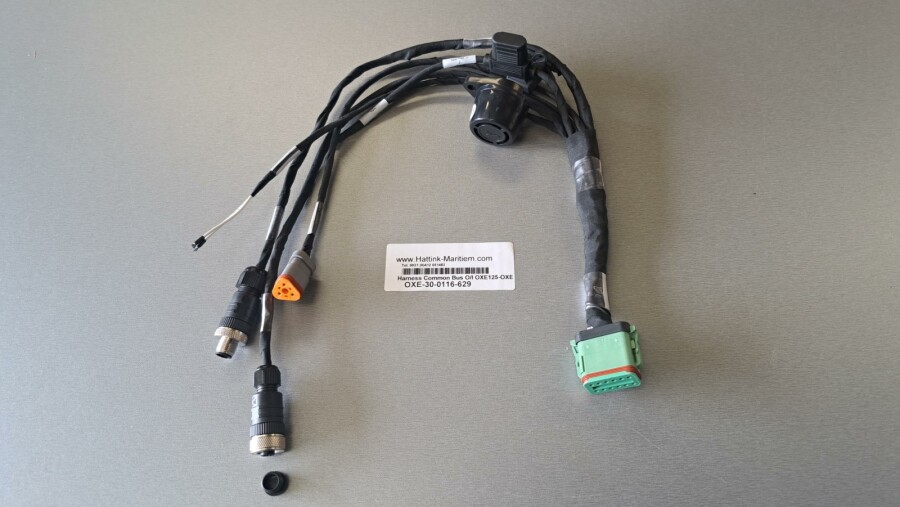

Common Bus O/I Wiring Harness
For connecting the OXE-G4 Helm wiring harness
to the throttle control and NMEA connection
With four connectors:
and three connection cables.

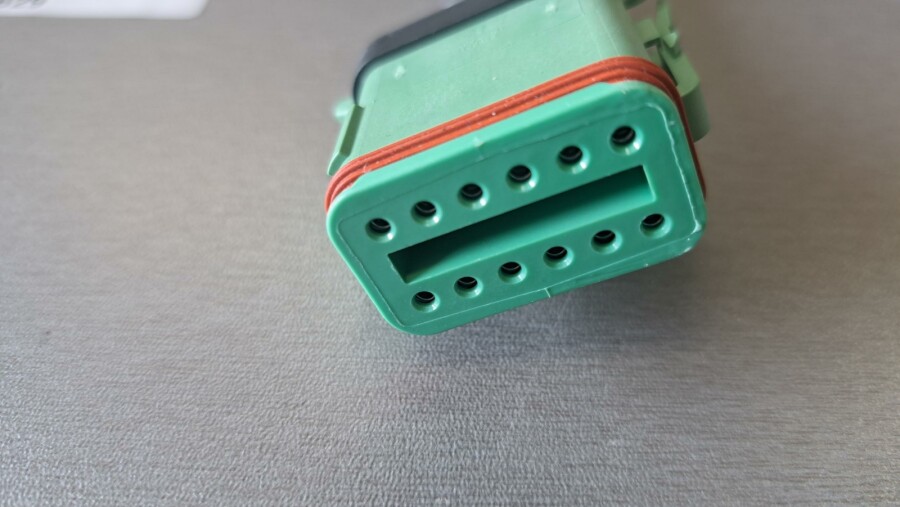

1x connector to engine wiring harness (Common Bus 1/O)

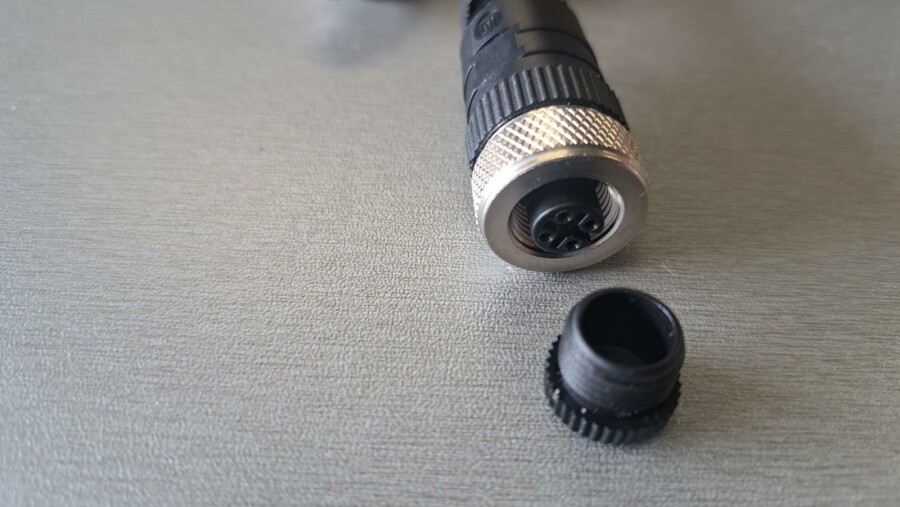

1x connector (Internal NMEA) with fuse holder

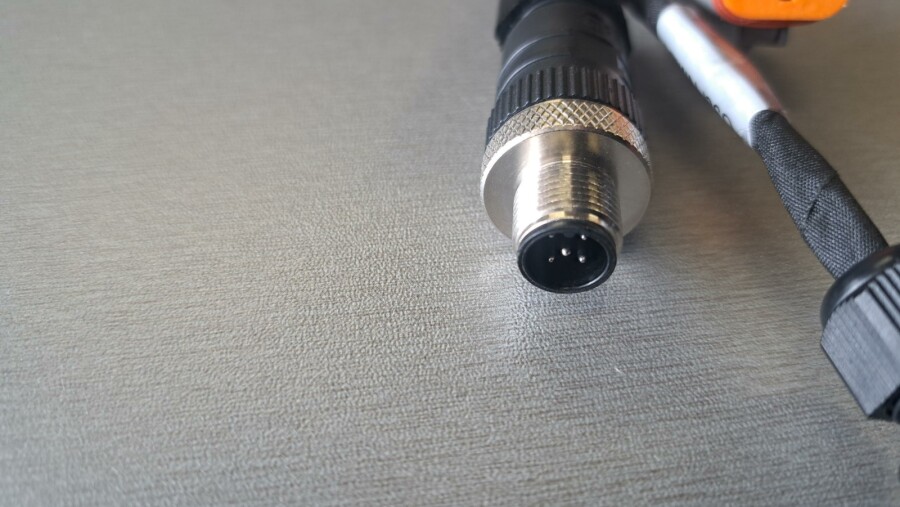

1x connector (User NMEA)
1x Throttle Control Head PTT Switch
1x connection with fuse holder without fuse (contact)
(User Ignition Signal)
2x Kill Cord Loop connections
with warning buzzer/alarm

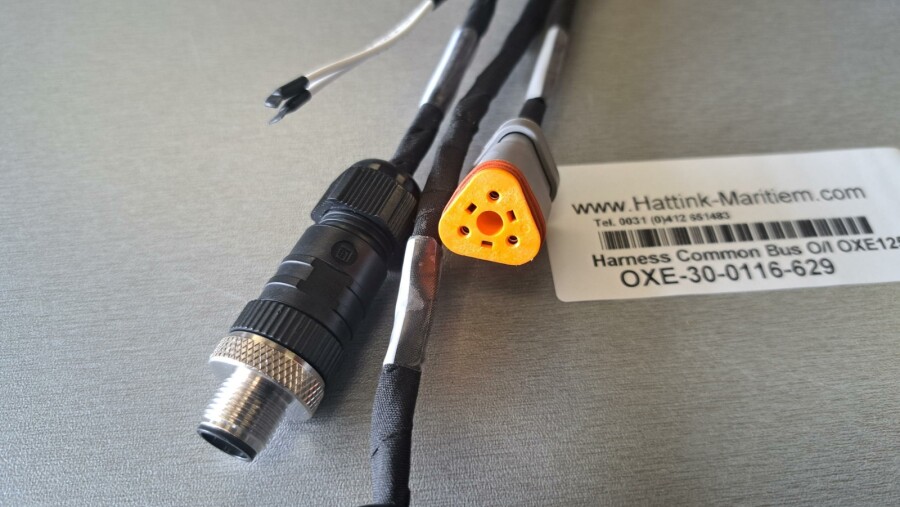

Description on the packaging:
OXE-marine
30-0116-629
Common Bus 1/O
Made in Sweden
For Oxe type:
OXE-125
OXE-150
OXE-200
OXE-225
OXE-250
OXE-300
< br/>
Below Descriptions, modifications
and applications of various article codes
Copying the text below is prohibited.
OXE-30-0116-629/OXE30-0116-629
30-0116-629
