Complete Fuel Filter:
Filter Support + Filter + Moisture Separator

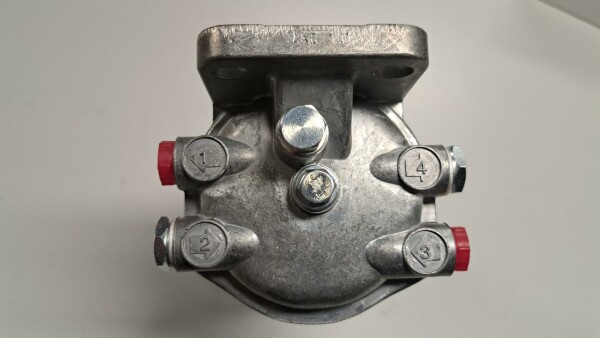

5836B100 CAV Fuel Filter Housing
The Delphi CAV fuel-water separator
is one of the world's most popular fuel filters.
It is used in a wide variety of applications,
from small engines such as generators and pumps
to pre-common rail cars, trucks
and machinery. Water is efficiently
separated by the 5-micron filter
and collected in the glass bowl
at the bottom of the unit, ready to be drained.
Suitable for: Small engines,
petrol or diesel, cars and trucks,
pre-Common Rail, stationary engines
Cross-references: IHC 3069607R92,
JCB 32/400100,
Leyland 13H2521,
Leyland 211761,
Leyland 781043,
Leyland 78-1043,
Lister Petter 299852
Specifications
Micron value: 5 µm
Inlet/outlet: 1/2" x 20 UNF
Overall length: 197 mm
Outer diameter: 107 mm
Flow rate: 45 litres per hour
OE DV-R5836b100/DVR5836b100
DV R5836b100/DV-5836B100
DV5836B100/DV 5836B100
Universal Fuel Filter Complete
DV-8501002/DV8501002
DV 8501002
