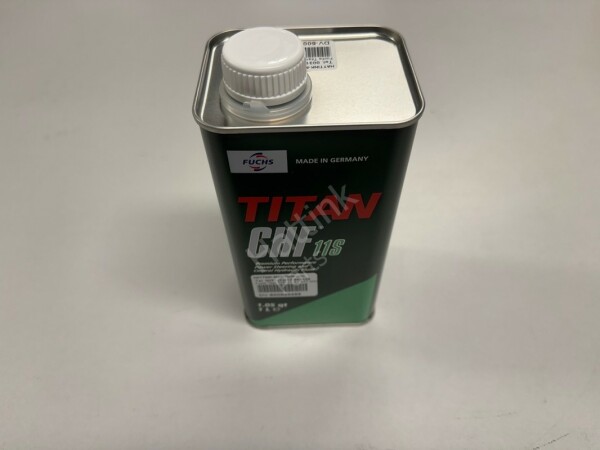

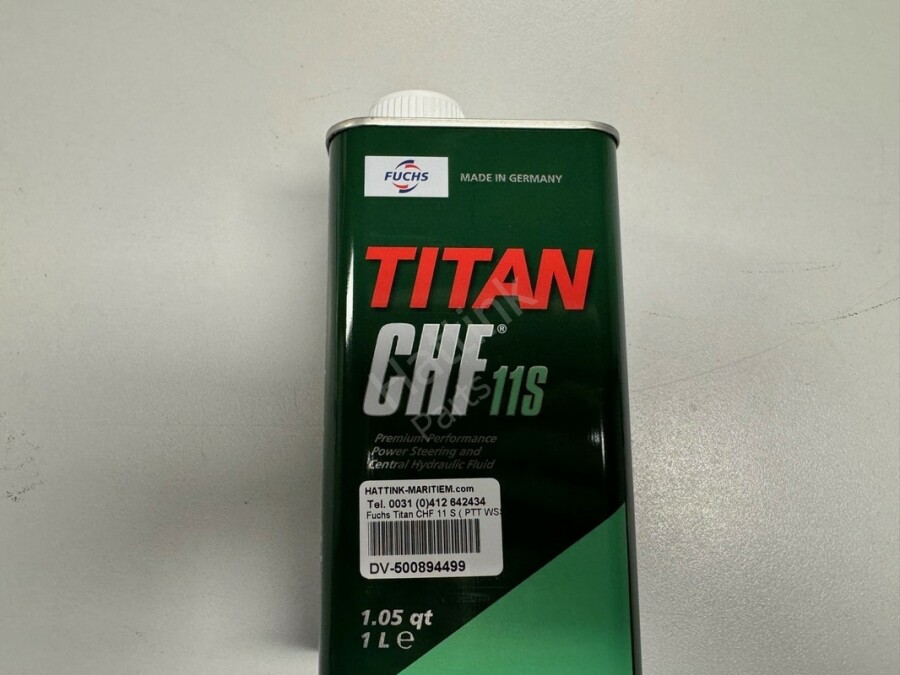

Steering and Central PTT Hydraulic
Oil Titan CHF 11S (1 liter)
TITAN CHF 11S
Premium performance power steering and central
hydraulic oil with a wide range of applications
and approvals for various manufacturers.
Hydraulic PTT Oil for OXE Diesel Outboard Motor Type:
OXE125+OXE150+OXE175+OXE200
Quantity of PTT/CHF oil.
Power Trim and Tilt Unit PTT: 0.5-0.7 Liter
Description
TITAN CHF 11S is a synthetic, high-quality
hydraulic oil for use in vehicles/products from
numerous automotive and component manufacturers.
The exclusive additive technology
combined with specially selected base oils
provides optimal performance in hydraulic
systems. The unique viscosity-temperature behavior of TITAN CHF 11S and its excellent performance in the cold temperature range
guarantee optimal operation at all
system temperatures. TITAN CHF 11S is also highly
compatible with elastomers and electronic
components in hydraulic control systems.
Furthermore, TITAN CHF 11S prevents wear on the
pump, ensuring reliable operation throughout
the component's entire life cycle. This exceptional performance
is one of the reasons why TITAN CHF
11S has such an impressive and unique
performance and approval profile in
the power steering and central hydraulics segment.
Application
TITAN CHF 11S is specially developed for use in
automatic hydraulic systems that must
meet the highest technical standards and
is used in a wide range of components:
power steering
(used as the original fluid in VW, BMW, MB, and other makes),
level control, shock absorbers, hydropneumatic springs,
stability and traction systems, electric/hydraulic
switching of convertible roofs, central locking systems, etc.
TITAN CHF 11S has an exclusive
spectrum of applications and is used by many manufacturers
as the initial filler fluid.
TITAN CHF 11S is suitable for mixing with CHF 202;
However, due to the additives, it
cannot be mixed with older formulas, such as CHF
7.1 or other hydraulic oils.
Advantages/Benefits
* Adapted viscosity-temperature patterns
* Excellent low-temperature performance
guarantees optimal oil supply to the system
at low temperatures
* Excellent oxidation and aging stability
* Optimal protection against corrosion and
wear
* Optimized air separation and
foam formation patterns
* Guarantees reliable operation of the
hydraulic system
even under the most demanding operating conditions
* Unique and exclusive performance and approval profile

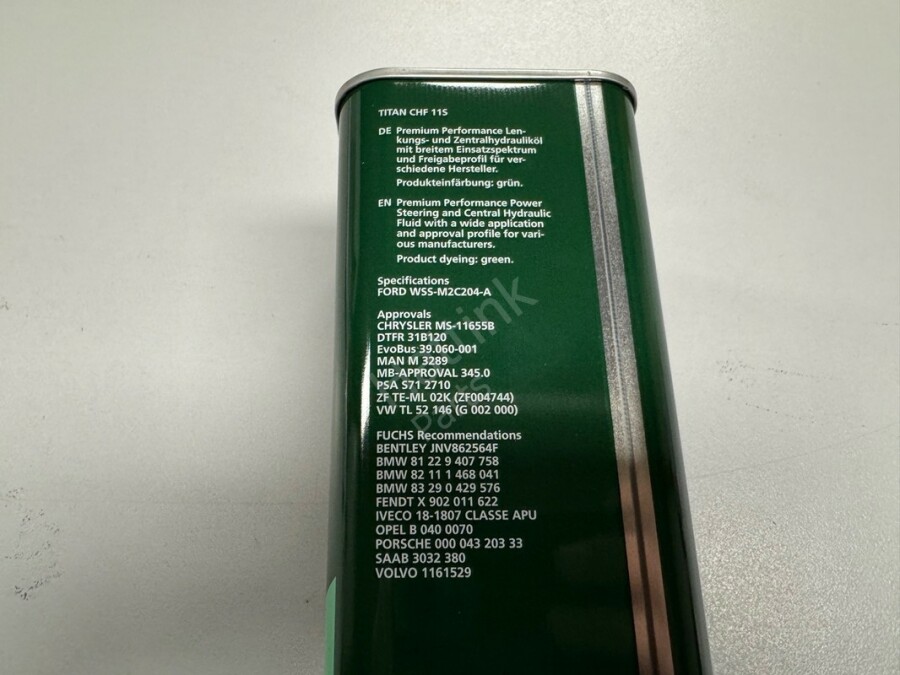

Specifications
* FORD WSS-M2C204-A
Approvals
* CHRYSLER MS-11655B
* MAN M 3289
* MB-APPROVAL 345.0
* PSA S71 2710
* ZF TE-ML 02K (ZF000832)
* VW TL 52 146 (G 002 000)
FUCHS recommendations
* BENTLEY JNV862564F
* BMW 81 22 9 407 758
* BMW 82 11 1 468 041
* BMW 83 29 0 429 576
* FENDT X 902 011 622
* OPEL B040 0070
* PORSCHE 000 043 203 33
* SAAB 3032 380
* VOLVO 1161529
TITAN CHF 11S
High-performance power steering and central hydraulic fluid with a wide range of applications
and approval profiles for various manufacturers.
PI60616e, PMA, 26-07-2019, Page 2
TYPICAL CHARACTERISTICS
Appearance DIN 10964 green
Density at 15°C DIN EN ISO 12185 830 kg/m³
Kinematic viscosity at 100°C DIN EN ISO 3104 6.0 mm²/s
Kinematic viscosity at 40°C DIN EN ISO 3104 18.7 mm²/s
Kinematic viscosity at -40°C DIN EN ISO 3104 1100 mm²/s
Viscosity index DIN ISO 2909 313
Flash point DIN EN ISO 2592 156°C
Pour point ISO 3016 -57 °C
