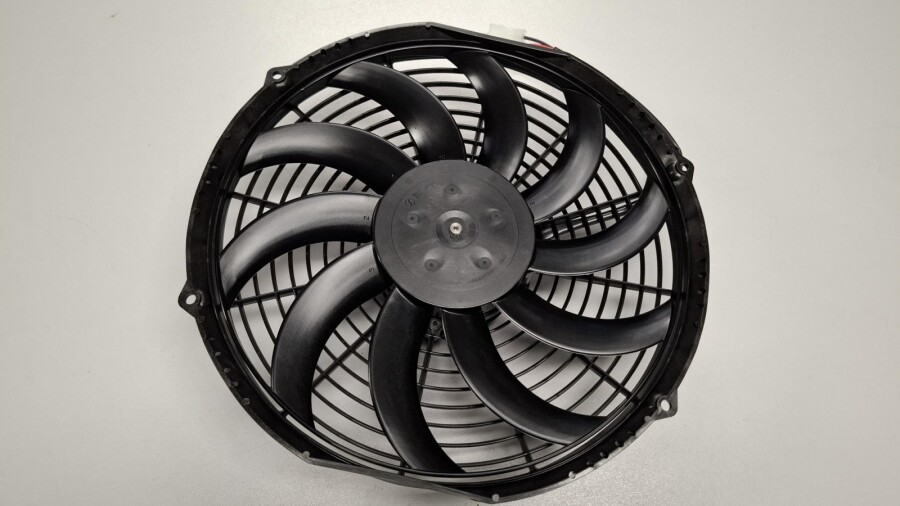

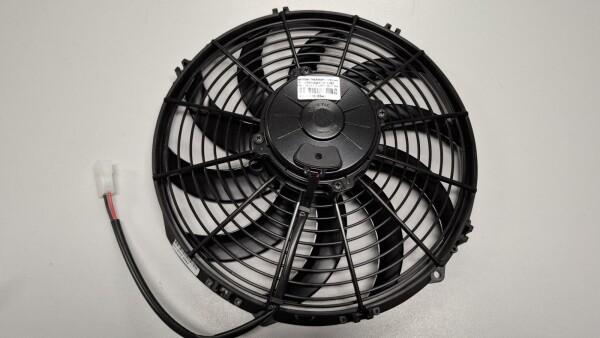

Fan 24V VA10-BP70/LL-61A
Technical specifications:
AC-3010.2542.pdf
Spal type comparison:
Spal Type VA10.pdf
Description:
24 Volt Spal Suction Fan
Spal Blower/Fan
Fan 24V DC
Ø 305 mm Suction 24V VA10-BP70/LL-61A
Max voltage 26V
Electric consumption (A) 6.5 A
Air volume (m³/h) 1440 m³/h
Voltage 24V
Fan Type Suction
Weight 1.1 kg
Blade Diameter Ø 305 mm
Thickness 62 mm
Total Diameter 335 mm
New Spal Code VA10BP70/LL-61A
Spal 3010.1814 / VA10BP70/LL61A
Thickness 52 mm
Blade Diameter Ø 305 mm
Channel size Ø 311 mm
Outer dimension at round side Ø 335 mm
Outer dimension at flat side Ø 320 mm
Hole size center to center Diagonal Ø 337 mm
Hole size center to center 168 mm
Hole size center to center 292 mm
Hole size Ø 6.5 mm
OE
Brand: part no.
TEXAS TRUCK: AC 100-1085HP
AIRSOURCE - MEI:3565HP
COOLSTAR - MEI:141-1041
PRIMATECH:PTAC3565HP
SPAL:30100823
SPAL:30102542
SPAL:VA10-BP1-61A
SPAL:VA10-BP70/LL-61A
SPAL:VA10BP70/LL61A
TRUCK AIR: 06-3565H
TRUCKAC+:T2039
TTA/C:35-6504HP
Your supplier for Spal Netherlands
Naturally also for Spal Automotive

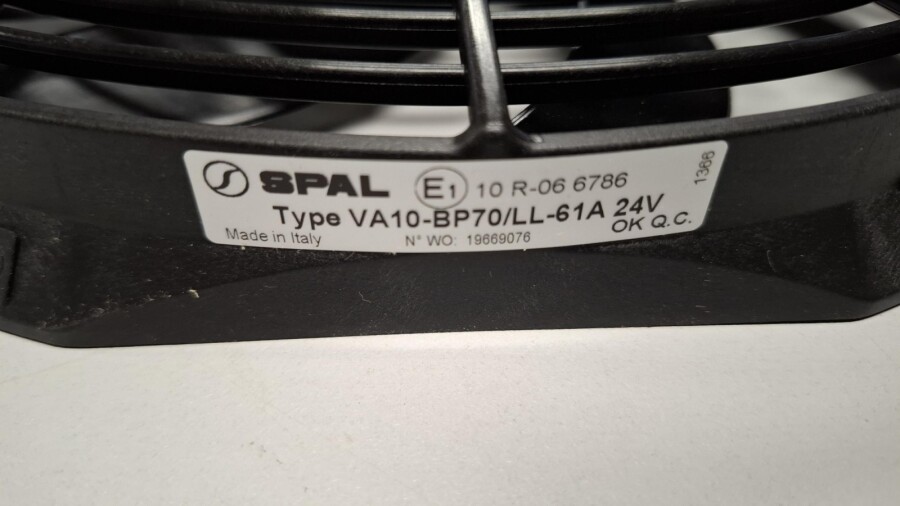

Description on item:
Spal Logo
VA10-BP70/LL-61A 24V
Made in Italy
1589 grams
Examples and applications or
Names:
Spal fans for livestock transport
Axial fan / axial fans
Cooling fans for cooling condenser/radiator
24 Volt fans for rally cars
Extra cooling fan/blower from the brand Spal
Spal fans for livestock transport, transport of live animals
Or in an air conditioning system for circulation
Spal fans for Autocross/racing/road racing
Tuning fans 24V for more horsepower
Also for classic cars with 24 Volt power supply as extra cooling
Suction fans from manufacturer Spal
