Blade/Wing Fan Govi Arktik Unit
For Govi Type:
To be used for evaporator and condenser
if it needs to be blowing.
also for other types.
For Artik units
Arktik 1600N Evaporator Motor and Condenser Motor
Arktik 1600N/T for Evaporator
Arktik 2000N for Evaporator Motor
Description on item:
Tech. info:

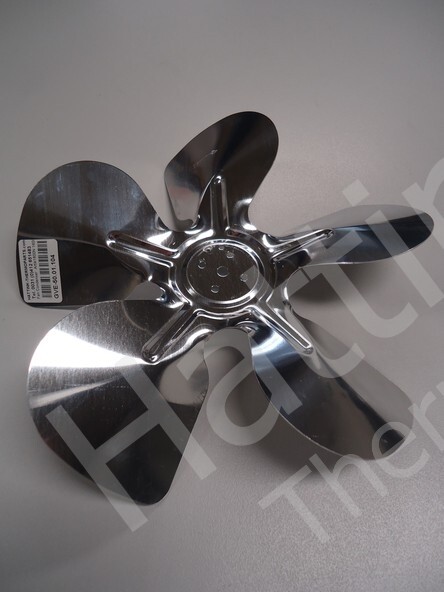

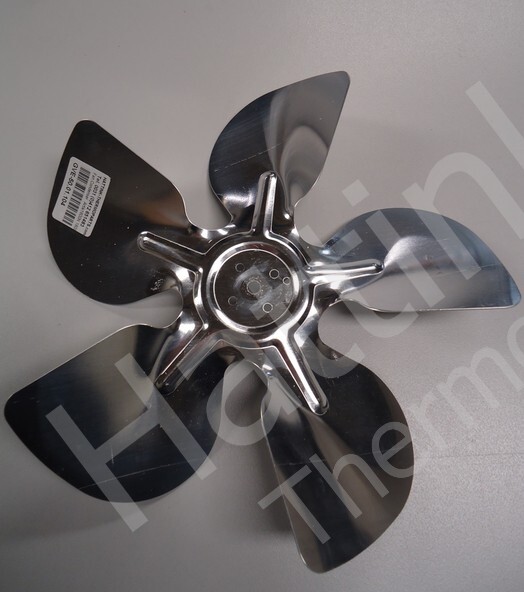

Blower fan blade
Material: ALUMINUM
5 blades
Ø25mm
Height 4.5mm
Blade type: blowing blade and suction over the motor
Mounting with arrow direction on blade
on motor side, then the operation is blowing
over the fan motor rotation direction
clockwise.
Mounting of stainless steel M4 bolt with washer
mount with locking compound,
which can still be loosened, see order together
OE GVE-50.01.104/E-50.01.104
50.01.104/50.01.104
Also fits the brands below with the
same connection and large blade:
Yanmis motors 33 Watt
Euro Motors Italia 25/85W
Elco fan motor VN5-13
evaporator fan motor ap361
FMI AA106640X - fan motor 25W
Elco NET3T25PVN004 - Fan motor ELCO 25W
