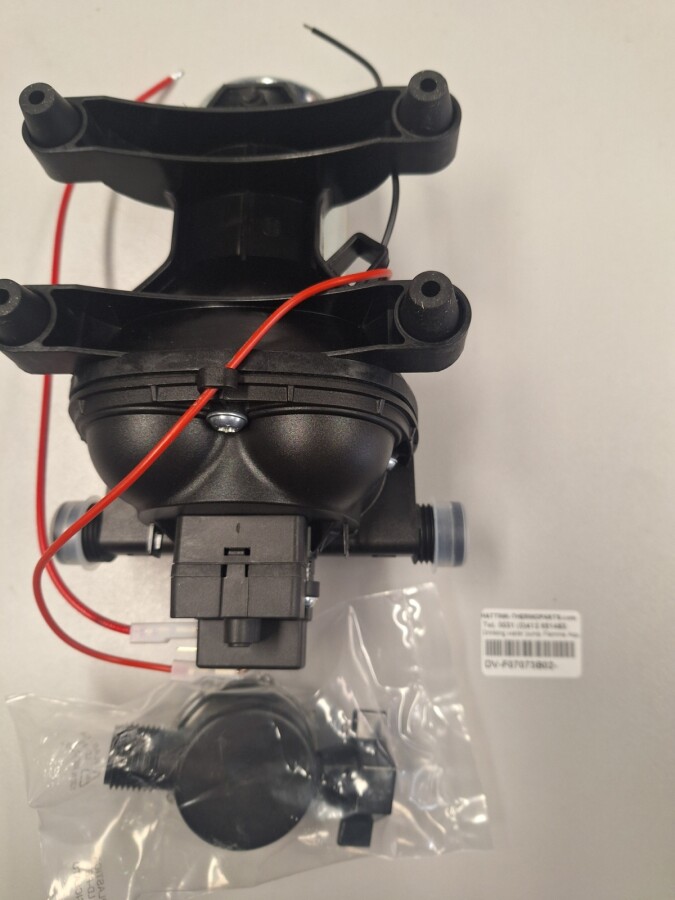

Self-priming Fiamma drinking water pump
New and improved self-priming water pump from Fiamma.
Automatically sucks and pumps water to a height of more than 3 meters.
Equipped with Silent Kit which prevents vibrations.
The stainless steel filter retains dirt and can be easily cleaned, which increases the durability of the pump.
Equipped with a pressure switch for automatic starting and stopping of the pump when opening and closing the tap.
All parts of the pump that come into contact with water are suitable for drinking water.
Resistant to limescale and oxidation and can run dry without any problems.
The pump will function in any position but it is recommended to install with the motor up and the pump head down to avoid any damage due to leakage.
Mount on a solid surface to reduce noise and vibration.
Easy maintenance, all parts are easy to replace.
Equipped with Anti-Vibration Silent Plate, a rubber on the bottom that prevents vibrations
Always install a pressure tank/pressure vessel in the system
so that the expansion pressure can build up and
already be released, such as a Fiamma A20 pressure vessel,
which also gives the pump a longer lifespan.

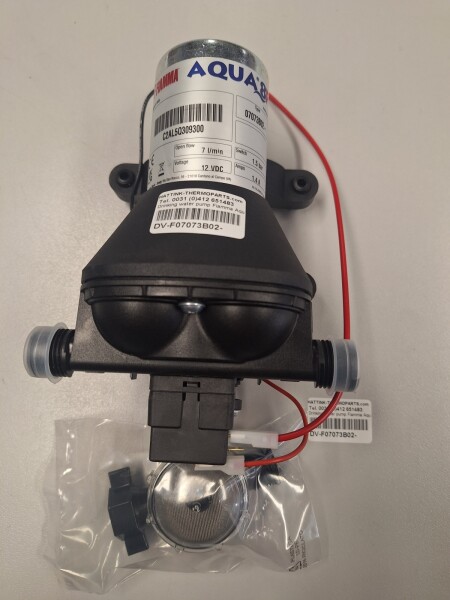

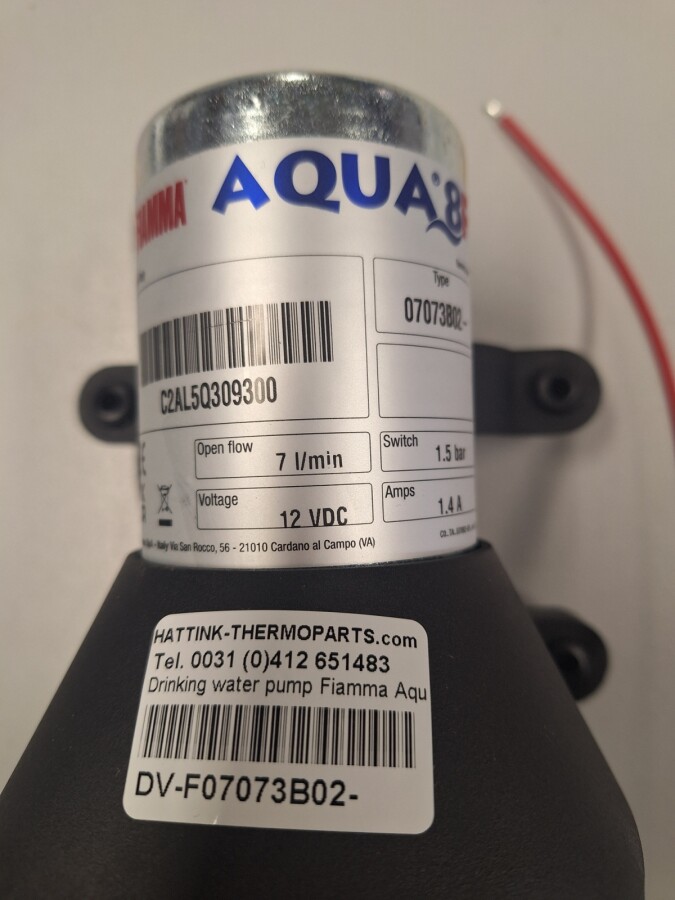

Description on Article:
Fiamma
Aqua 8F
Made in Italy
Model 07073B02-
Open Flow 7 l/min
Voltage 12V
Switch 1,5 bar
Amps 1,4A
C2AL5Q309300

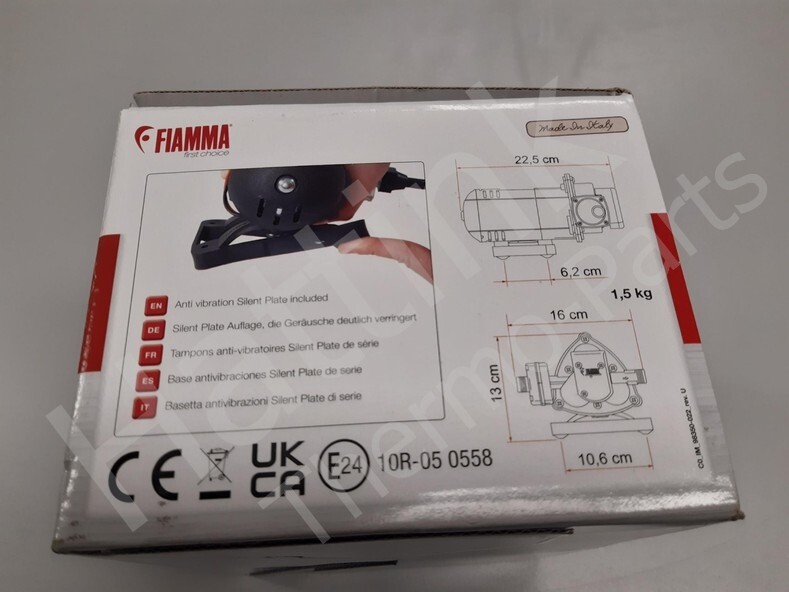

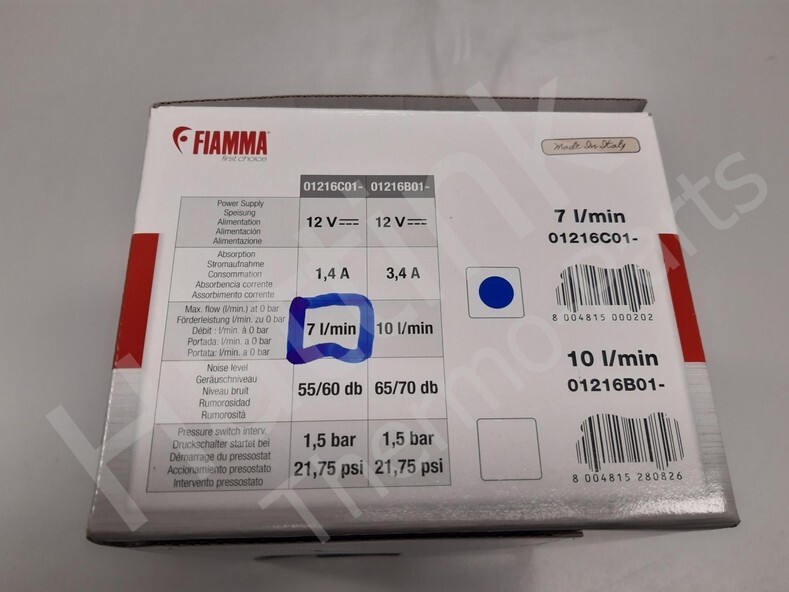

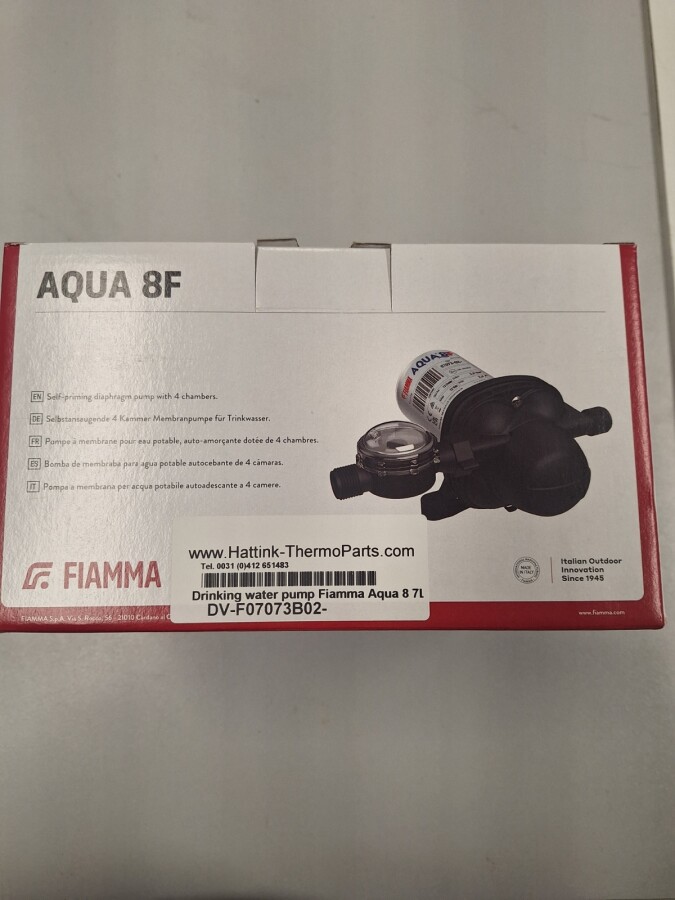

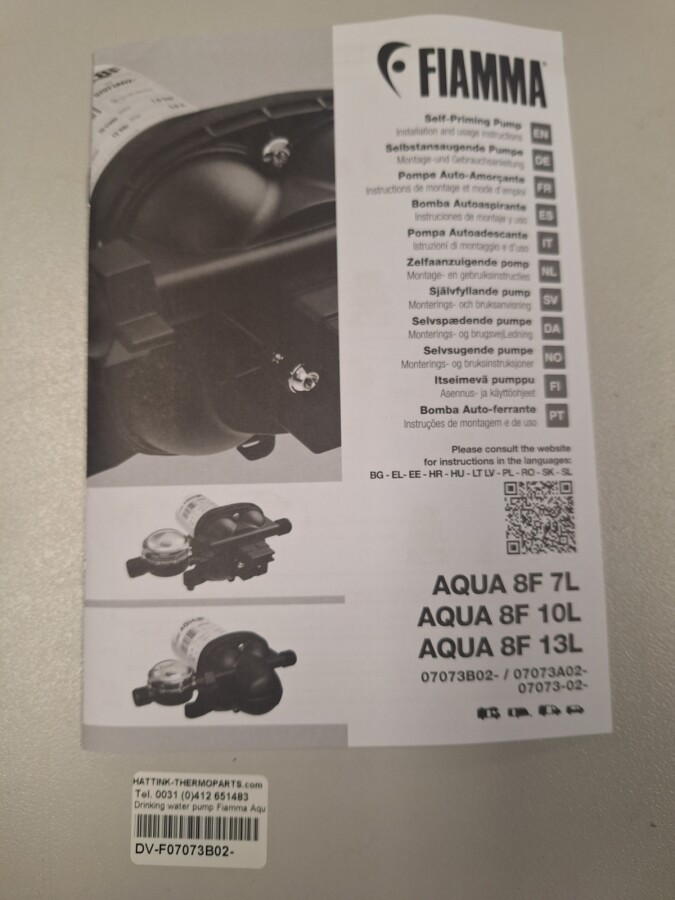

Description on packaging:
Fiamma
First choice
Made in Italy
Self-priming diaphragm pump for drinkwater
with 4 chambers
Aqua 8F
Quiet Power Pump
07073B02-
Power Supply12V
Max Flow 7l/min
Absorption 1,4A
Pressure Switch Int 1,5 bar/21,7 psi
Noise Level 50 db
Anti Vibration Silent plate included

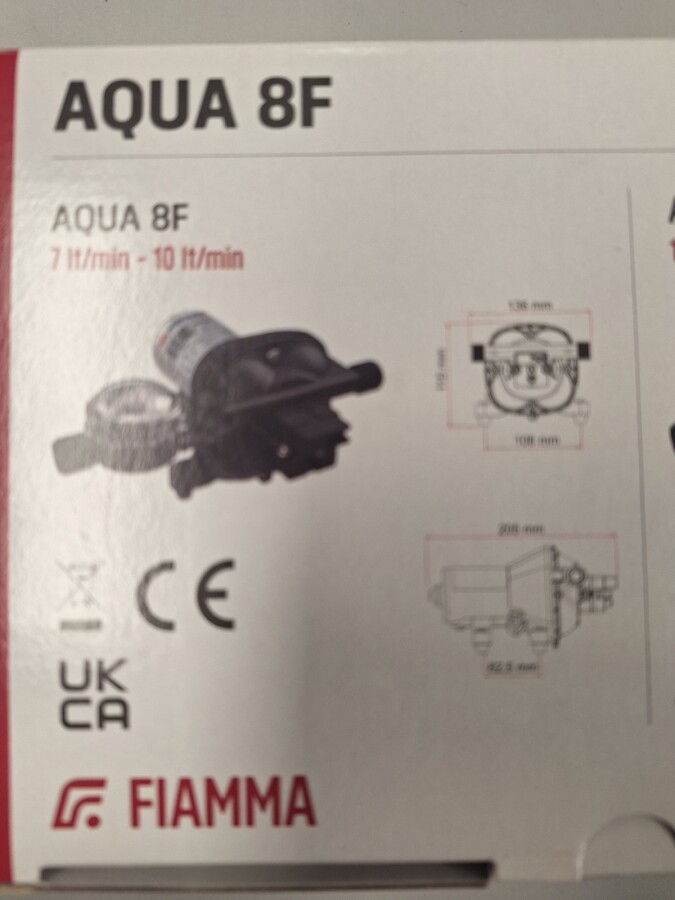

Lenght 20,5cm
High 11,5cm
Wide 13,6cm
Plate 10,6cm
8004815468255
Old number
DV-F01216C01-
F01216C01-
