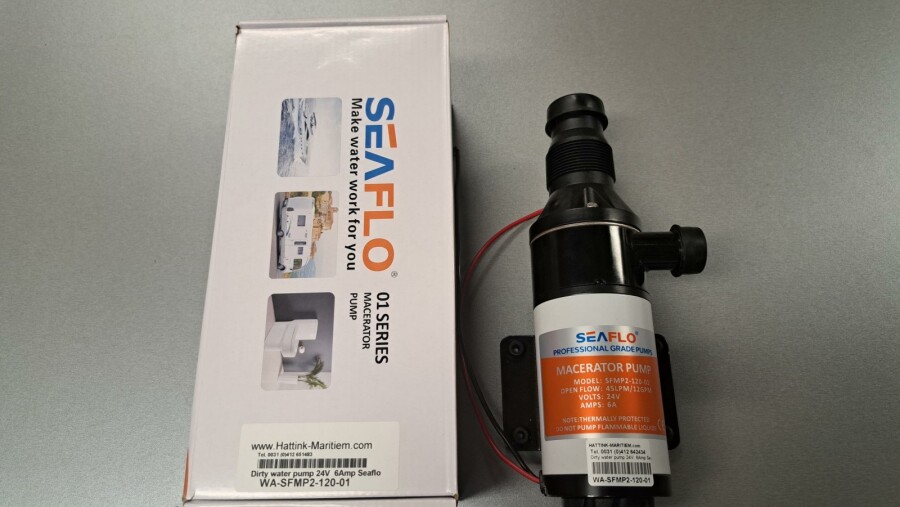

Seaflo 24V Macerator Pump
24V DC Wastewater Pump
Brand: Seaflo
Model: SFMP-120-01
Self-priming
Macerator Pump
With dry protection
Pump: Self-priming flexible impeller with
Stainless steel wear plate
Impeller: Seaflo
Pump Information:
New with Model SFMP-120-01
Macerator: Stainless steel cutter reduces
particle size to a maximum of 3 mm. New 4-blade design.
Seal: Lip Type

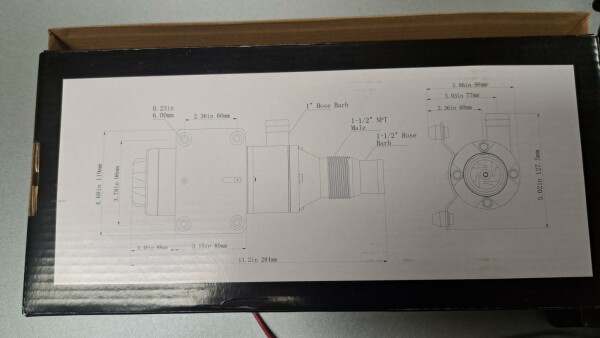

Ports: Inlet - 1-1/2" (38 mm) hose barb
and 1-1/2" N.P.T. (male)
Outlet - 1" (25mm) hose barb
NEW
Model: SFMP-120-01
Motor: Permanent magnet type, fully
Enclosed, with stainless steel shaft
Includes dry-run protection
that shuts off the pump. Powder-coated
Housing with sealed end caps and bearings.
CE approved
Weight: 1.9kg
Open flow: 45lpm/12gpm
Volt: 24V DC
Current: 6Amp
SPECIFICATIONS
Use a hose with a minimum 1" (19mm) ID
for the outlet and close it Connect to a thru-hull fitting
located approximately 4-6 inches above the waterline.
NOTE: The thru-hull discharge can be installed
below the waterline only if the discharge hose has a
vented loop fitting installed at least 8 inches
above the waterline at all heel or trim corners. Consult a qualified
plumber.
INSTALLATION FOR WASTE APPLICATIONS
Model SFMP-120-01
Although the Seaflo Macerator pump can be installed at
any convenient point in the waste discharge system, it is
recommended to install it as close to the holding tank as possible, as this will increase
NOTICE: The discharge thru-hull may be positioned
below the waterline only if the discharge hose has a
vented loop fitting installed at least 8 inches above the waterline at
all angles of heel or trim. Consult with a qualified
marine plumber.
INSTALLATION FOR WASTE APPLICATIONS
Although the Jabsco Macerator pump can be installed at
any convenient point in the waste discharge system, it is
recommended that it be installed as close to the holding
tank as possible, this will increase
Description on item:
Seaflo pump
24 volts
Made in China
Below Descriptions, modifications
and applications of various article codes
Copying the text below is prohibited.
OE 671880564380/WA-18590-2094/WA-18590-2094
WA 185902094/WA-185902094/WA18590-2094
WA 18590-2094
WA-SFPM-120
