Aircopomp/Pompairco/ACpomp/Aircocompressor
Always supplied without crankcase oil

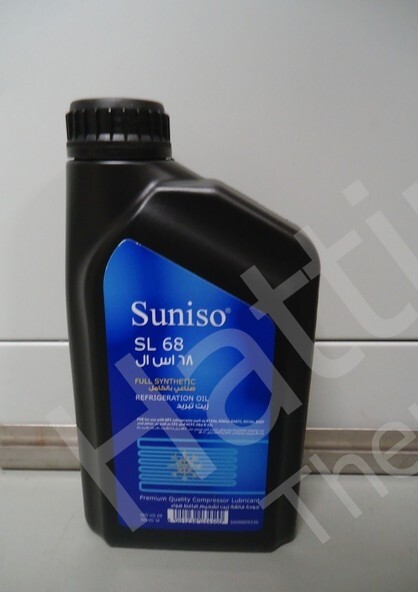

Possibly the correct oil separately when ordering
Description:

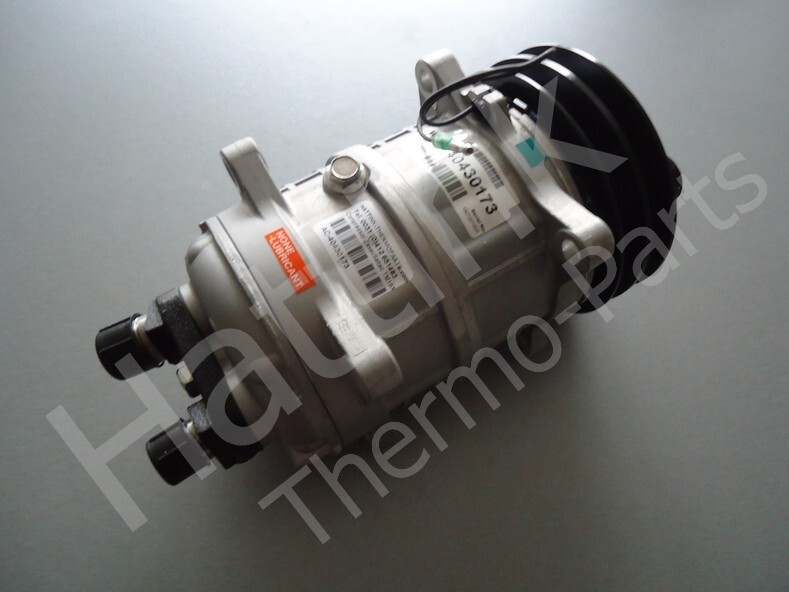

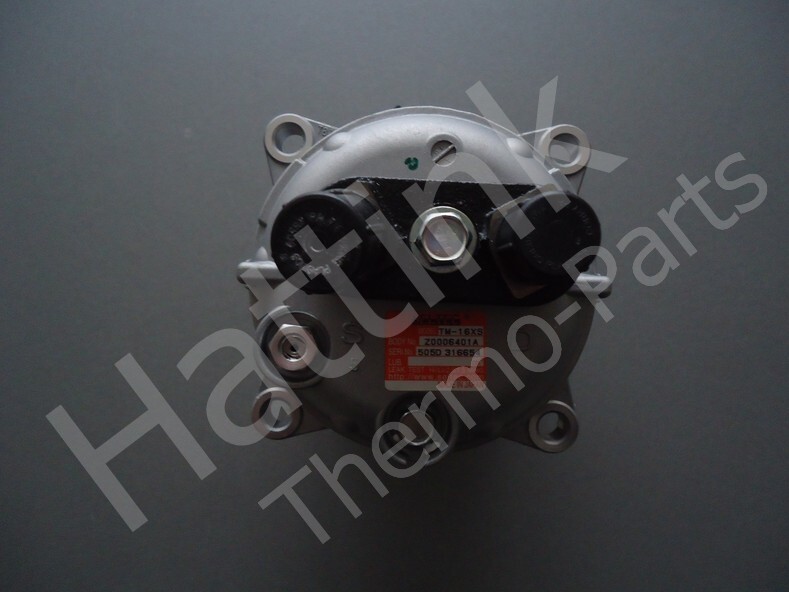

Air conditioning pump
TM16XS OR Horizontal 12V 5"1/4 2G A
Displacement 162,9 cc
Refrigerant R404a/R134a/R452a
Oil Type ZXL 100PG (or Equiv.)
Oil Quantity 180 cc
Autoclima Oil code AC-80813043 (R134a)
Suction fitting 7/8" 14UNF
Discharge fitting 3/4" 16UNF

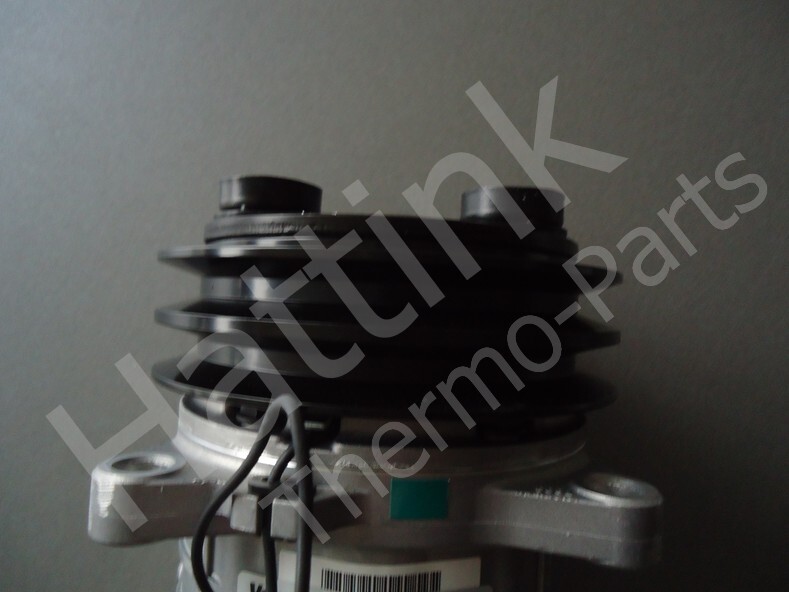

Pulley Diameter Ø 132 mm
Voltage 12V
Number of grooves 2 "A"
Section Groove 2,7 mm

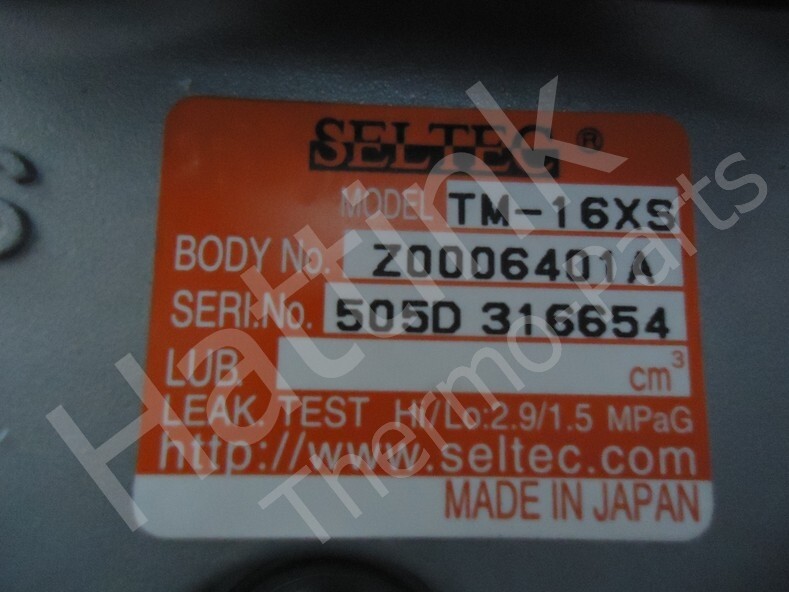

Compressor Type Zexel TM16XD
Body Type Z0006401A/T78287CA
Fittings OR O.
B (mm) 39,5 mm
C (mm) 83,3 mm
Mod. builder-
OE TK-1021133/ TK 1021133
TK-102-1133 TK 102-1133
OE C-18-10158-07/ C 18-10158-07
C-181015807/ C 181015807
OE C-18-10158-29/ C 18-10158-29
C-181015829/ C 181015829
Description on Article:
Applications and Examples or
Names and product codes:
It is not allowed to copy this.
OE134684430 / 30789000
Aircopomp/Pompairco/ACpomp
Seltec / Zexel / Tama
Seltec TM16HD / TM16XS
Zexel TM16HD / TM16XS /TM-16XS
Tama TM16HD / TM16XS / TM-16XS
