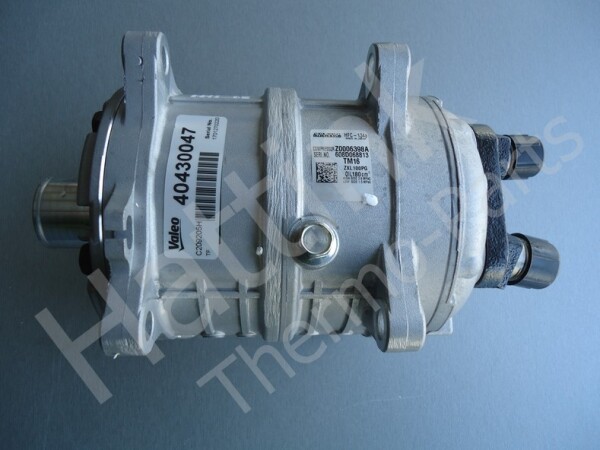

This Compressor version
TM16HS-TM16HD)

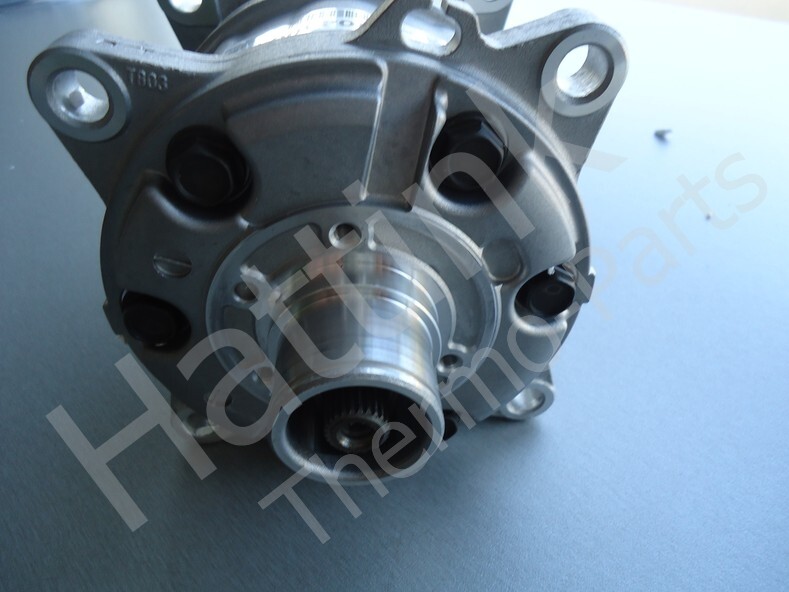

Always without magnetic coupling / Clutch
Evt. is the right oil / coupling loose when ordering
Look below: Order accessories
Compressor TM 16 HD OR Horizontal 12V 5"1/4 2G A
Displacement 162,9 cc
Refrigerant R134a
Oil Type ZXL 100PG (or Equiv.)
Change the oil to the oil in your system
Oil Quantity 180 cc
Autoclima Oil code AC-808'13043

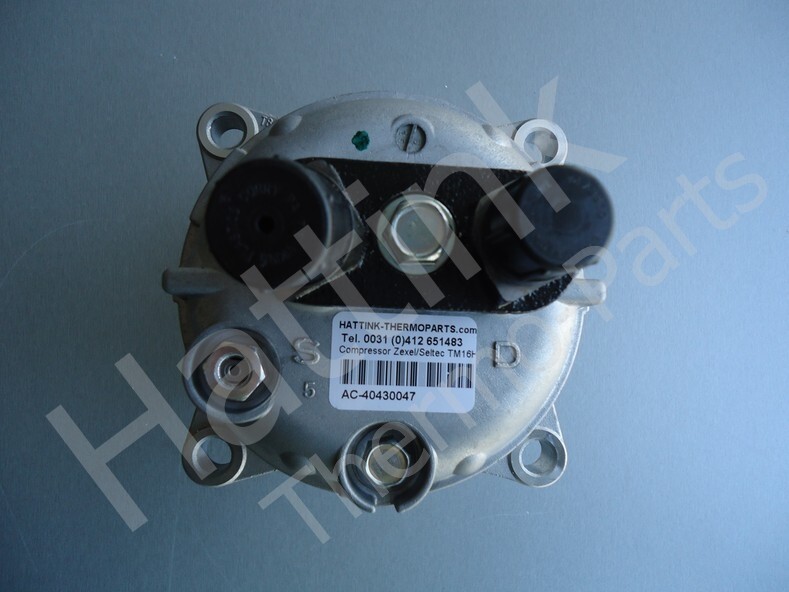

Suction fitting 7/8" 14UNF
Discharge fitting 3/4" 16UNF
Compressor Type Zexel TM16
Fittings OR O.
B (mm) 53,9 mm
C (mm) 83,3 mm
Mod. builder-Valeo
Valeo C209205H
Seltec HFC 134a
Model TM-16HS
Body No.Z0006398A
LUB.ZXL 100PG 180cm³
Made in Japan
Netto 7,2 kg
OE TK-1021133/ TK 1021133
TK-102-1133 TK 102-1133
OE TK-1021068/ TK 1021068
TK-102-1068 TK 102-1068
OE C-18-10158-04/ C 18-10158-04
C-181015804/ C 181015804
OE C-18-10158-09/ C 18-10158-09
C-181015809/ C 181015809
OE C-18-10158-26/ C 18-10158-26
C-181015826/ C 181015826
OE C-18-10158-12/ C 18-10158-12
C-181015812/ C 181015812
OE C-18-10158-02/ C 18-10158-02
C-181015802/ C 181015802
OE-C-18-10158-14/ C 18-10158-14
C-181015814/ C 181015814
OE C-18-10158-29/ C 18-10158-29
C-181015829/ C 181015829
OE C-18-10158-07/ C 18-10158-07
C-181015807/ C 181015807
