This Compressor version
(TM16XS-TM16XD)
Will always be delivered without carter oil
and magnetic clutch

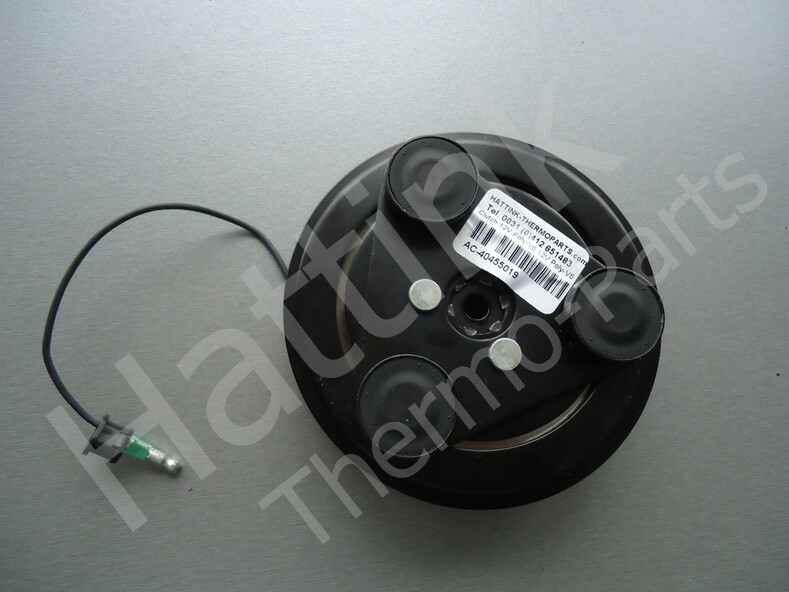

It is possibly to order the correct oil and Clutch
See below: Adding Accessories

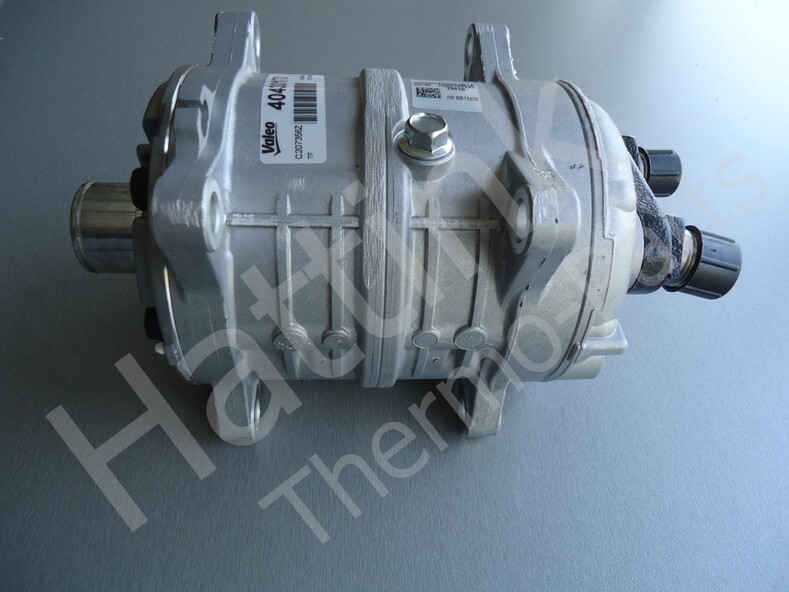

Description A/C Compressor
TM 16 XS OR Horizontal
Displacement 162,9 cc
Refrigerant R404a/R134a
Oil Type-air
Oil Quantity 0 cc

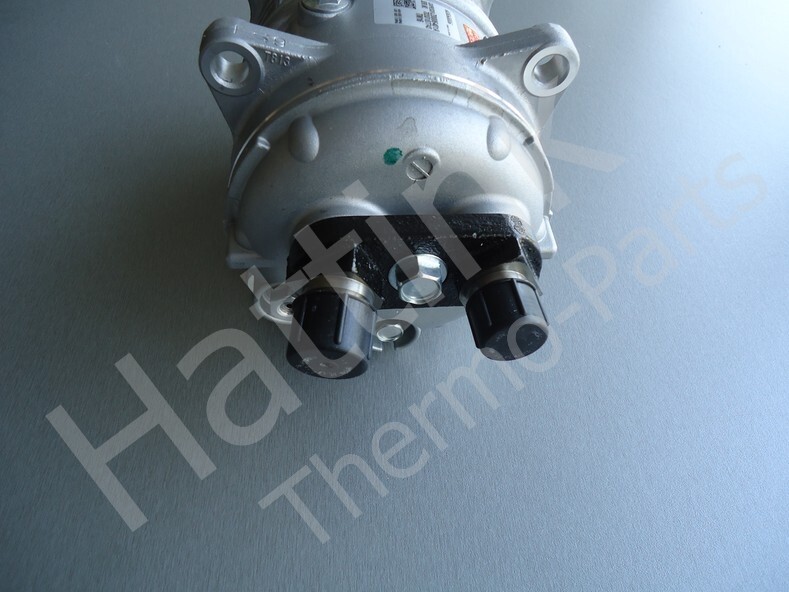

Suction fitting 7/8" 14UNF
Discharge fitting 3/4" 16UNF
Compressor Type Zexel TM16XS
Fittings OR O.
B (mm) 39,5 mm
C (mm) 83,3 mm
Valeo C208247S
Seltec
Model TM-16XS

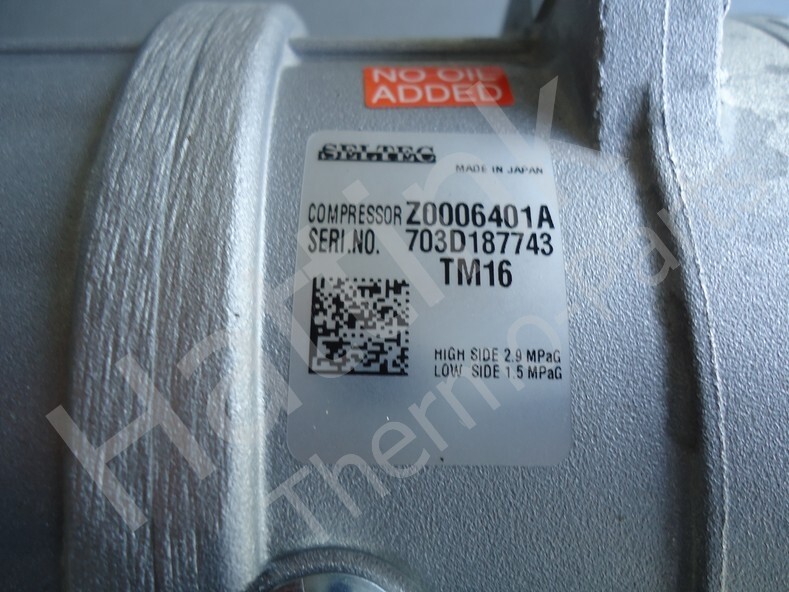

Body No. Z0006401A
A/C Compressor/Aircopomp
Made in Japan
Net 7400 gram
OE TK-1021133/ TK 1021133
TK-102-1133 TK 102-1133
OE TK-1021068/ TK 1021068
TK-102-1068 TK 102-1068
OE C-18-10158-04/ C 18-10158-04
C-181015804/ C 181015804
OE nr. 3CMT202 / C208247S
AC-40430175/40430175
OE C-18-10158-09/ C 18-10158-09
C-181015809/ C 181015809
OE C-18-10158-26/ C 18-10158-26
C-181015826/ C 181015826
OE C-18-10158-12/ C 18-10158-12
C-181015812/ C 181015812
OE C-18-10158-02/ C 18-10158-02
C-181015802/ C 181015802
OE C-18-10158-07/ C 18-10158-07
C-181015807/ C 181015807
OE C-18-10158-29/ C 18-10158-29
C-181015829/ C 181015829
OE-C-18-10158-14/ C 18-10158-14
C-181015814/ C 181015814
Examples and applications or
names and product codes:
It is forbidden to copy the text below.
Zexel/Seltec Compressor
