Aircopomp/Pompairco/ACpomp/Aircocompressor
Please note that no oil in the compressor !

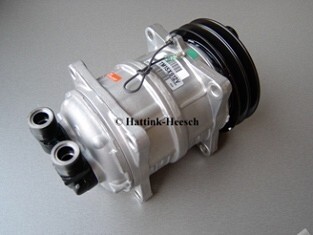

Seltec Compressor
TM 15 XS Vertical Rotolock 12V 5"1/4 2G A
Note oilless
Displacement 146,7 cc
N° Cylindres 6
Refrigerant R404a/R134a
Oil Type Eartic 68 (or Equiv.)
Oil Quantity 150 cc
RPM Max. 6000 r.p.m.
Installation position ± 45°
Rotation Clockwise
Suction fitting 1" 14UNS
Discharge fitting 1" 14UNS
Pulley Diameter Ø 132 mm
Voltage 12V
Number of grooves 2
Groove type A
Section Groove (S) 12,7 mm
561310
Seltec
Model TM-15XS
Body No. Z006351A / C211022F
Description on Article:
Seltec
Model TM-15 XS
Body No.Z0006351A
LUB. CM³
LEAK.TEST Hi/Lo:2.9/1.5 MPaG
Made in Japan
7600 gram
