This Compressor version
(TM15XS-TM15XD)
Is always supplied without crankcase oil
If necessary. the correct oil loose when ordering
Zexel/Tama/Valeo
Compressors 24V:
Description Airco Compressor:
AC Compressor: TM15XS (TM15XS)
Connection: O-ring
Coupling Type: 3-Eye
Voltage: 24Volt DC
Ø135 2xGroof A2
Connection: Horizontal
Compressor info:
Capacity: 147cc
Refrigerant: R404a/R134A/R452a
Amount of oil: 0 cc
Oil type of ours: see photo
Connection Type: O-Ring
Suction Coupling: (G10) 7/8" 14UNF
Press Coupling: (G8) 3/4" 16UNF
Mounting: 4 mounting ears
with hole size Ø10.3
Center size Hole/Hole 104mm
Cylinders: 6
Compressor bolt tightening torque:
35N.m 93.5kgfm

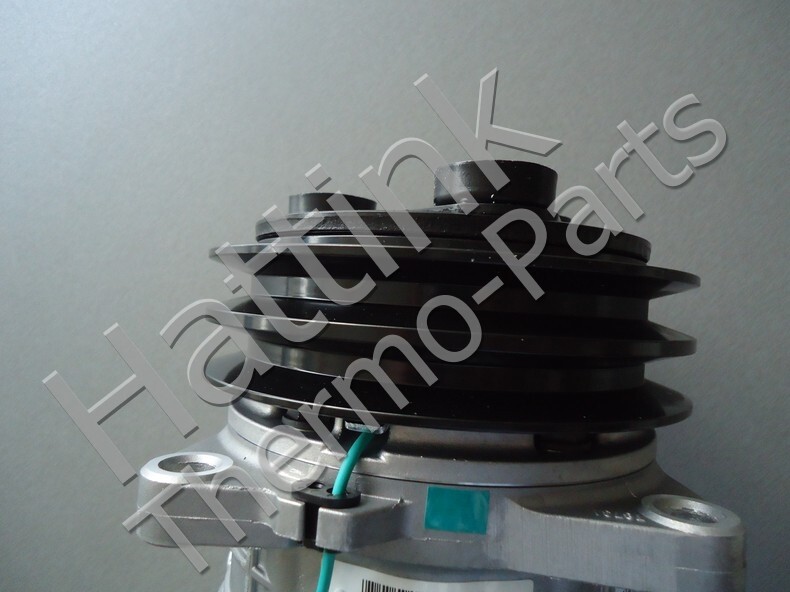

Coupling/Clutches info:
Pulley at groove: Ø 132mm
Voltage: 24V DC
Consumption: 45 Watt 1.88amp

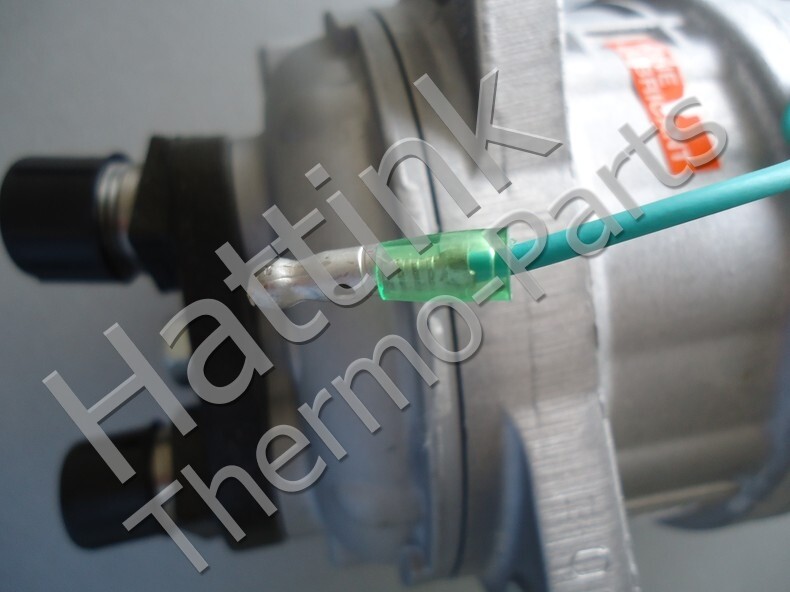

Connection: 1x wire +side / Ground is Body
Number of grooves: 2 Type 2AG
Groove size: 12.7mm
Speed range: 700-6000 RPM
Compressor type: Seltec/Zexel TM15 XS / TM-15XS
Connection: O-ring
Housing type:Z0006351/Z006339C
B (mm) 39.5 mm
C (mm) 83.3 mm
br/>

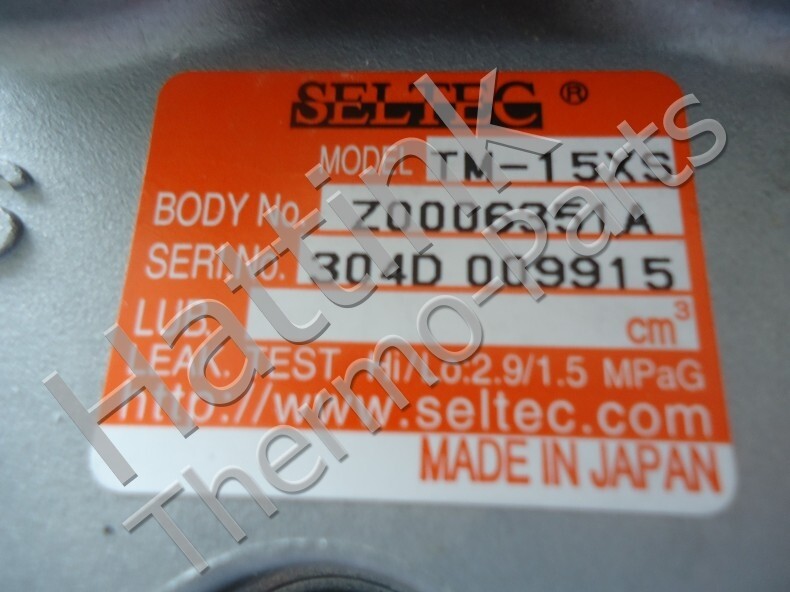

Description on Aircopomp:
Seltec
Model TM-15XS
Body No.Z0006351A/Z006339C
LUB.
LEAK.TEST Hi/Lo:2.9/1.5 MPaG
Made in Japan
Net 7600 grams
OE no. 3CMT102
