This compressor model
(TM15XS-TM15XD)
Is always supplied without crankcase oil
If necessary. Please order the correct oil separately
Zexel/Tama/Valeo
12-Volt Compressors:
www.Hattink-Heesch.com
Air Conditioning Compressor Description:

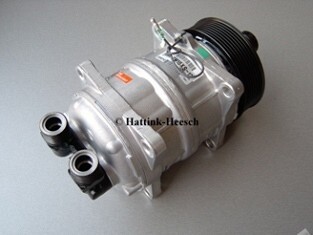

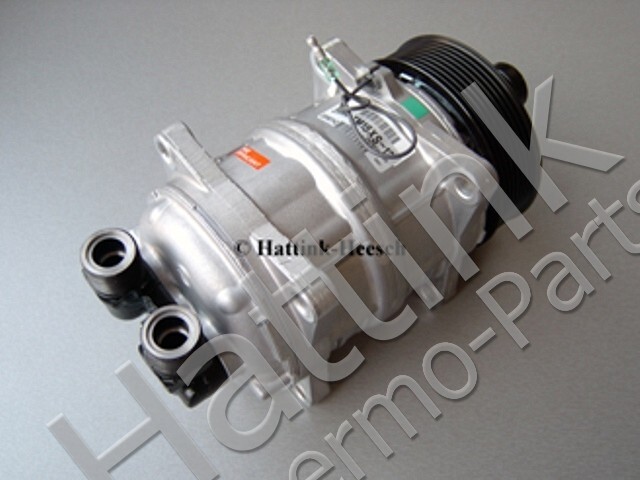

AC Compressor: TM15XS TM15HS (TM15HD)
Connection:
Rotolock / Rotalock O-ring
Coupling Type: 3-Eye
Voltage: 12V DC
Ø119mm Poly-V 8
Connection: Vertical
www.Hattink-Heesch.com
www.Hattink-Heesch.nl
Compressor info:
Capacity: 147cc
Refrigerant: R134a
Refrigerant: R404a
Oil type: Supplied without oil
Oil quantity: 150 ml
See photo for our oil type
Connection type: Rotalock O-ring
Suction coupling: (G10) 7/8" 1"14UNS
Pressure coupling: (G10) 7/8" 1"14UNS
Mounting: 4 mounting ears
with hole size Ø10.3
Center distance hole/hole 104mm
Cylinders: 6
Rotation: CW/CCW
www.Hattink-ThermoParts.nl
www.Hattink-ThermoParts.com
Coupling/Clutch info:
Pulley at groove: Ø 119 mm
Pulley at side edge: Ø 122.8 mm
Voltage: 12V DC
Consumption: 45 Watts 3.75 Amps
Connection: 1x wire + side / Ground is Body
Number of grooves: 8
Type: Poly-V 8
Groove size: 3.56 mm
Speed range: 700-6000 RPM
www.Hattink-ThermoParts.com
Compressor type:
Seltec/Zexel TM15 XS / TM-15HD / TM-15HS
Connection: Rotalock O-ring
Housing type:Z0006351A / Z0006339C
W (mm) 46.5mm
C (mm) 83.3mm
www.Hattink-ThermoParts.com
www.Hattink-ThermoParts.com
Description on Air conditioning pump:
Seltec
Model TM-15XS
Body No.Z0006351A
LUB. CM³
LEAK.TEST Hi/Lo:2.9/1.5 MPaG
Made in Japan
www.Hattink-ThermoParts.com
According to the rules art.SAE-J639
www.Hattink-ThermoParts.com
OE No. Valeo C211186H
Pump air conditioning/AC pump/Air conditioning compressor
Celtec/Zeltec/Seltek/Zeltek/Sexel
www.autoclima-parts.nl
www.Hattink-ThermoParts.com
Not included with this product, but required for replacement:
O-ring Press G8 AC-707.0188983
O-ring Press G10 AC-707.0188984
Oil PAG 46 AC-808.13043
