Caution is provided without oil
An O-ring
Not included,
See photo, s
Zexel / Tama / Valeo
Compressor 12V:

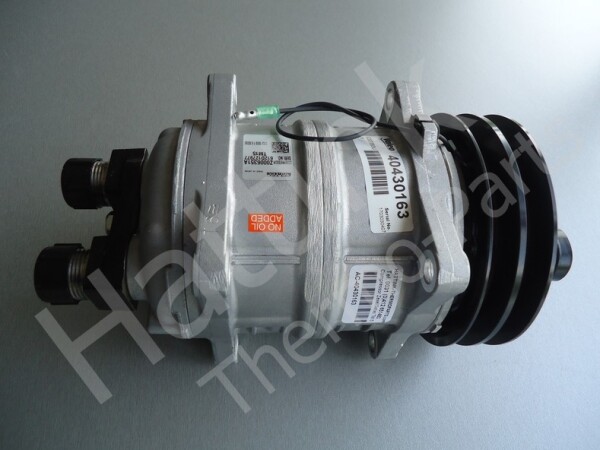

Description Air Compressor:
AC Compressor: TM15XS (TM15HD)
Connection: Rotolock O-ring
Coupling Type: Spring Leaf
Voltage: 12V DC
Ø132 2xGroef A2
Connection: Horizontal
Compressor info:
Capacity: 147cc
Refrigerant: XS R404a
Refrigerant: HS R134a
Oil type: Delivered without oil
Quantity of oil: 150 ml
Oil type of us see Photo

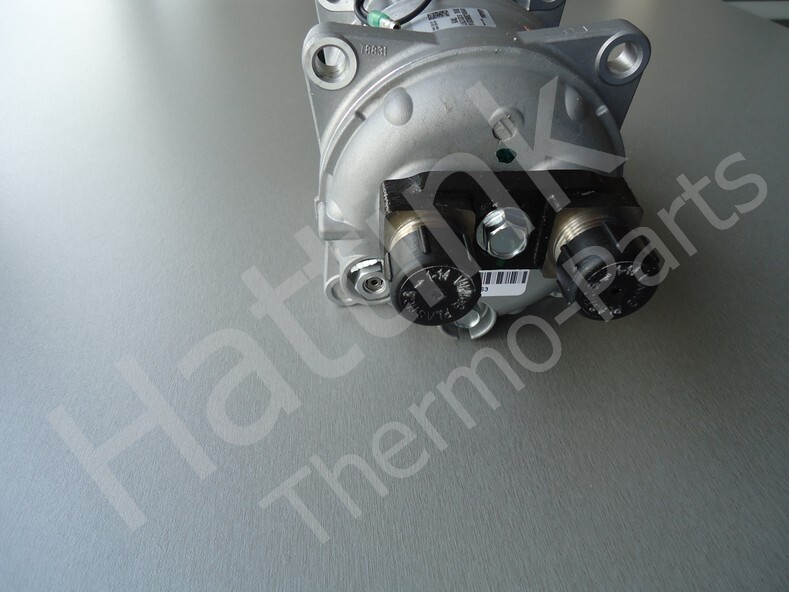

Connection Type: Rotolock O-Ring
Coupling suction: (G10) 1 "14UNS
Coupling Press: (G10) 1 "14UNS
Mounting: 4 mounting ears
With hole size Ø10,3
Heart Size Hole / Hole 104mm
Cylinders: 6
Rotation: CW / CCW

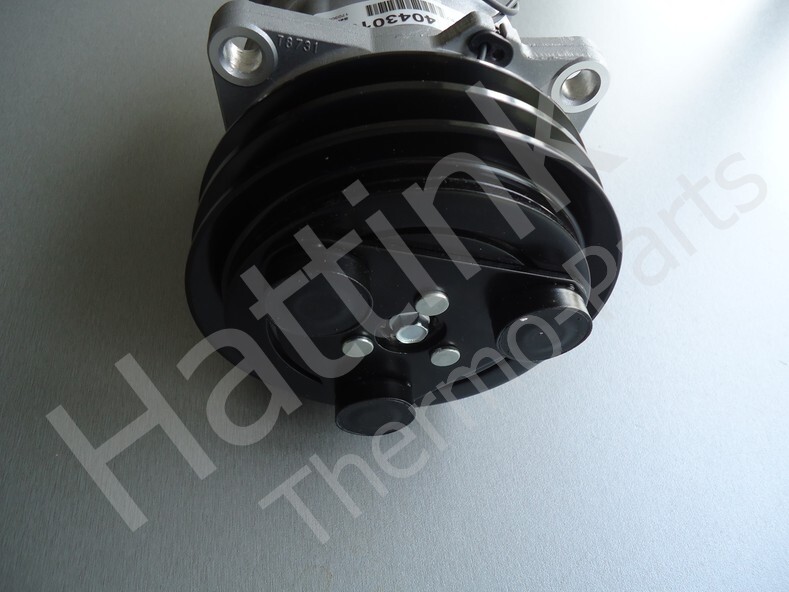

Link / Cluts info:

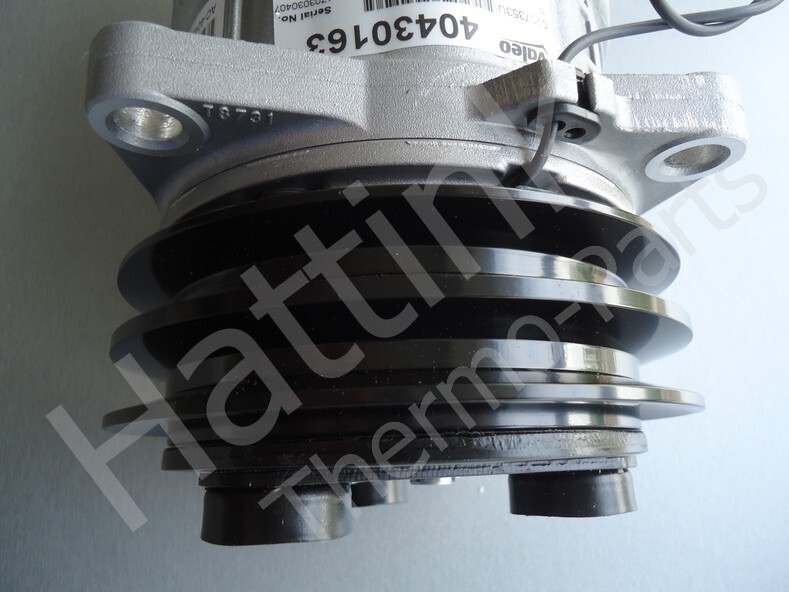

Pulley at groove: Ø132mm
Voltage: 12V DC
Consumption: 45 watts 3.75amp

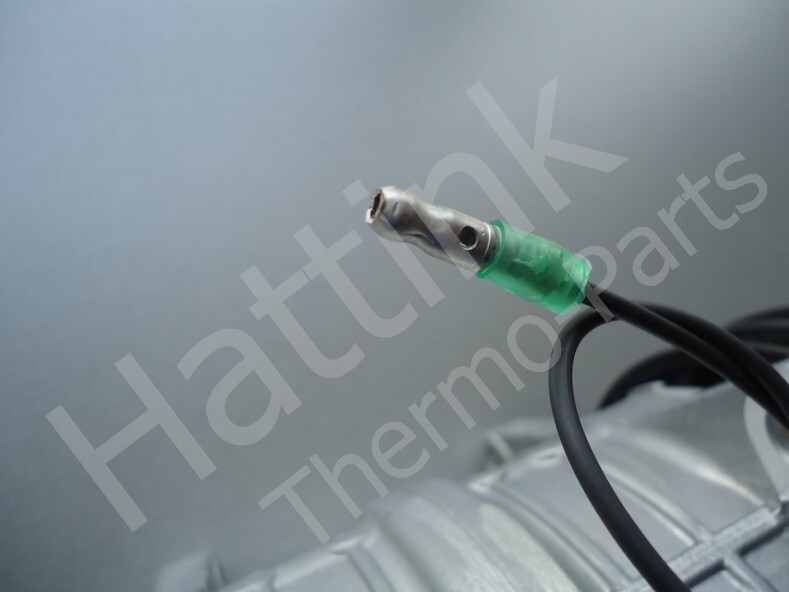

Connection: 1x wire + silk / Mass is Body
Number of grooves: 2 Type 2AG
Groove size: 12.7mm
Tours range: 700-6000 RPM
Compressor type:
Seltec / Zexel TM15 HS / TM-15HD
Connection: Rotolock O-ring
Housing Type: Z0006351
B (mm) 39.5 mm / B (mm) 46.5 mm
C (mm) 83.3 mm

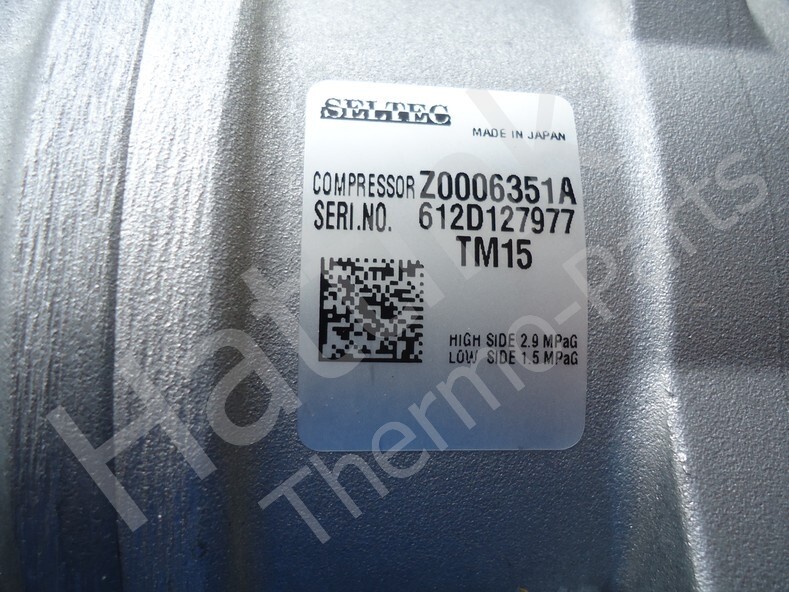

Description on Aircompomp:
Seltec
Model TM-15XS
Body No.Z0006351A
LUB. CM³
LEAK.TEST Hi / Lo: 2.9 / 1.5 MPaG
Made in Japan
According to the rules art.SAE-J639
OE No.
Not included with this product, but required when replacing:
2x O-ring Press G10
