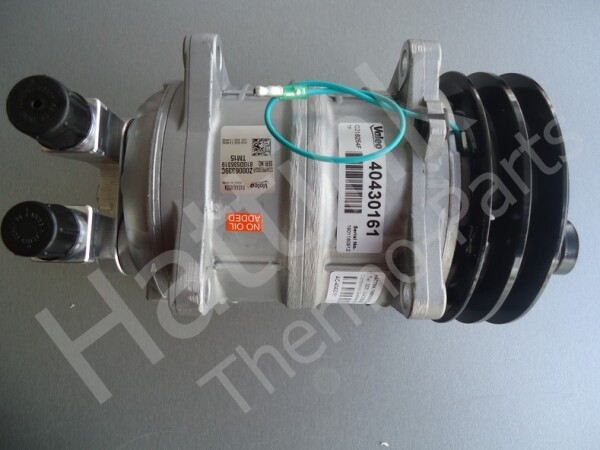

No oil in the compressor supplied
Description A/C Compressor
TM 15 XS OR Vertical 24V 5"1/4 2G A
Displacement 162,9 cc
Refrigerant R404a
Oil Quantity 0 cc

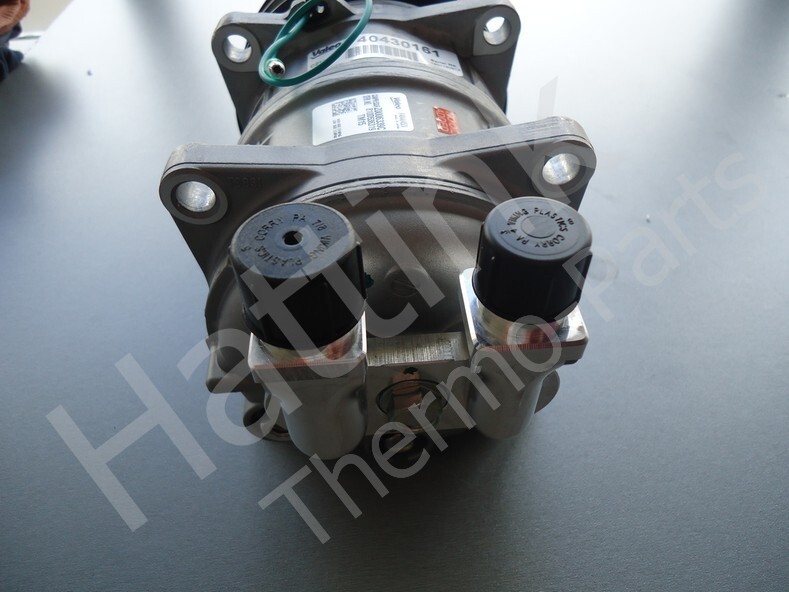

Suction fitting 7/8" 14UNF
Discharge fitting 3/4" 16UNF

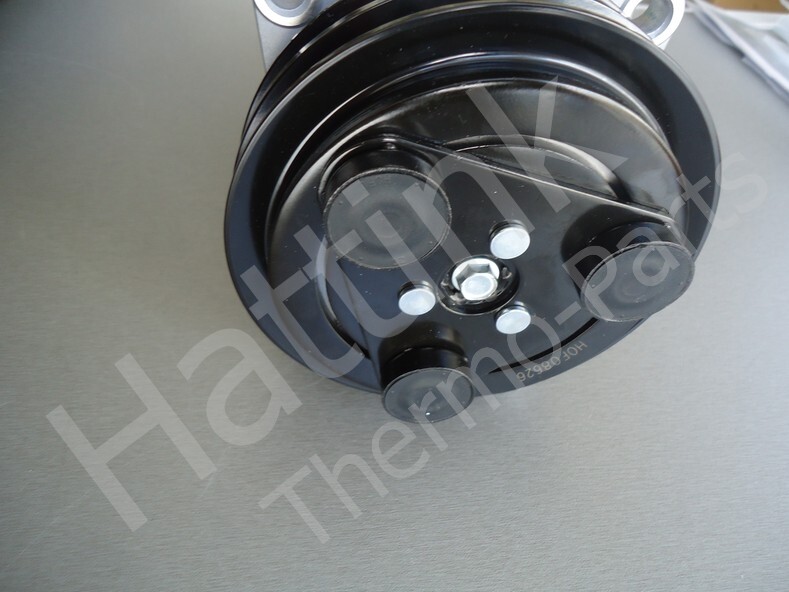

Pulley Diameter Ø 135 mm
Voltage 24V
Number of grooves 2 "A"
Section Groove 12,7 mm
Compressor Type Zexel TM15XS
Fittings OR O.
B (mm) 39,5 mm
C (mm) 83,3 mm

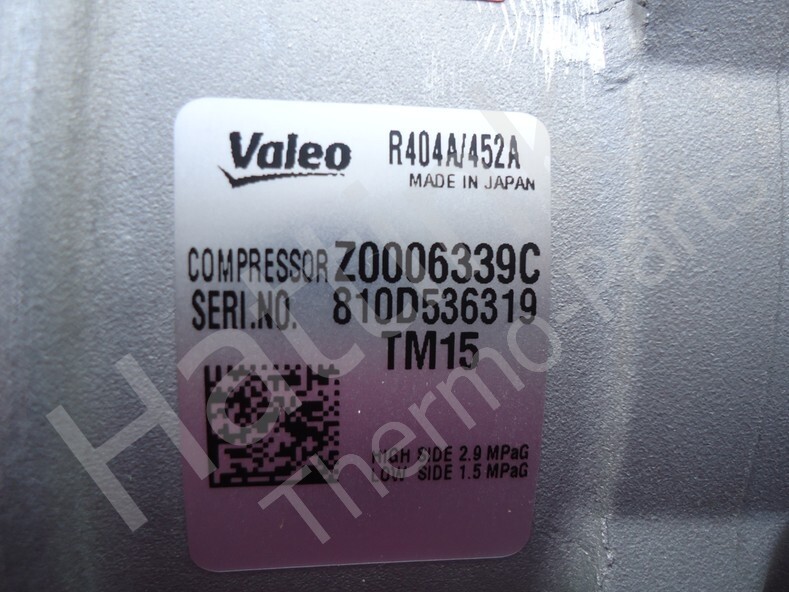

Description on Article:
Valeo R404A/452A
Compressor .Z0006339C
High Side: 2.9 MPaG
Low Side: 1.5 MPaG
Made in Japan
Net 7400 gram
Applications and Examples or
Names and product codes:
