Note O-rings and oil in Compressor
Not included,
See photo, s
Zexel / Tama / Valeo
TM13XS O-ring Horiz.12V Ø119mm Poly-V
Compressor 12V:
Description Air Compressor:
AC Compressor: TM13XS
Connection: O-ring
Coupling Type: 3-Eye
Voltage: 12 Volt DC
Ø119mm Poly-V8
Connection: Horizontal
Compressor info:
Capacity: 131cc
Refrigerant: (HS) R404a / R134A
Oil type:
Quantity of oil:
Oil type of us see Photo

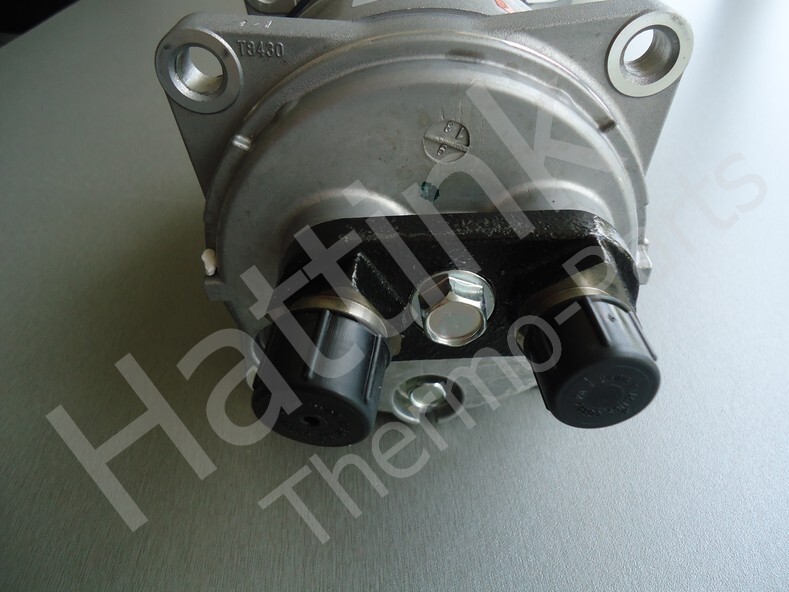

Connection Type: O-Ring
Coupling suction: 7/8 "14UNF
Coupling Press: 3/4 "16UNF
Mounting: 4 mounting ears
With hole size Ø10,3
Heart Size Hole / Hole 104mm
Cylinders: 6
Rotation CW / CCW

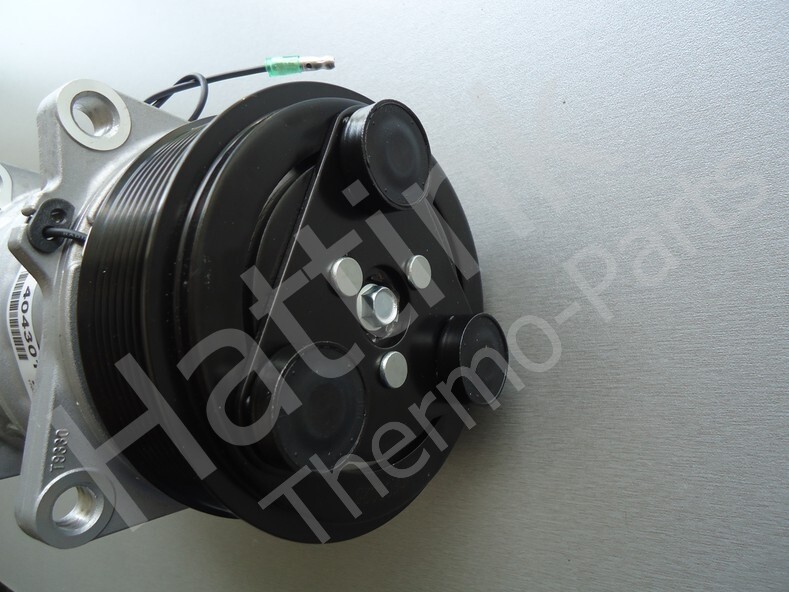

Link / Cluts info:
Pulley at groove: Ø119mm
Voltage: 12V DC
Consumption: 45 watts 3.75amp

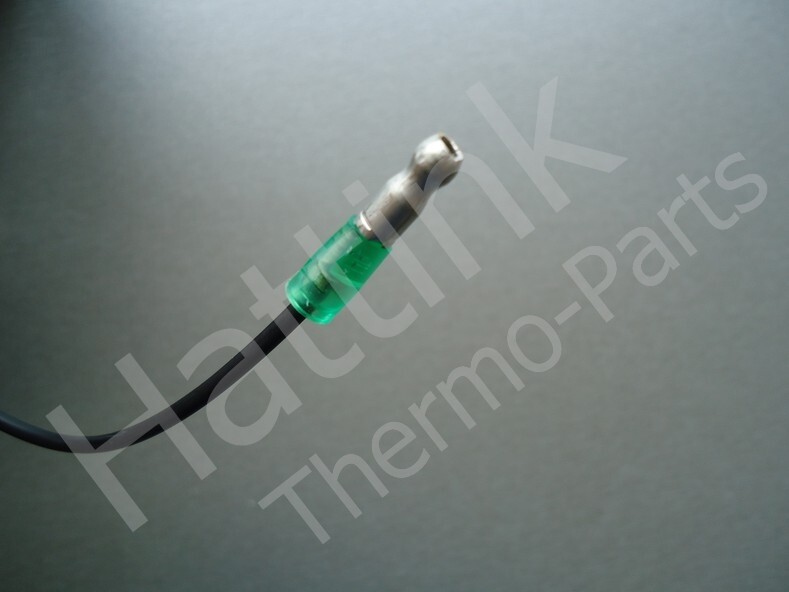

Connection: 1x wire + silk / Mass is Body
Number of grooves: Poly-V8
Groove size: mm
Tours range: 700-6000 RPM
Compressor type:
Seltec / Zexel TM13 XS
Connection O-ring
Housing Type: Z0006332A
B (mm) 39.5 mm
C (mm) 83.3 mm

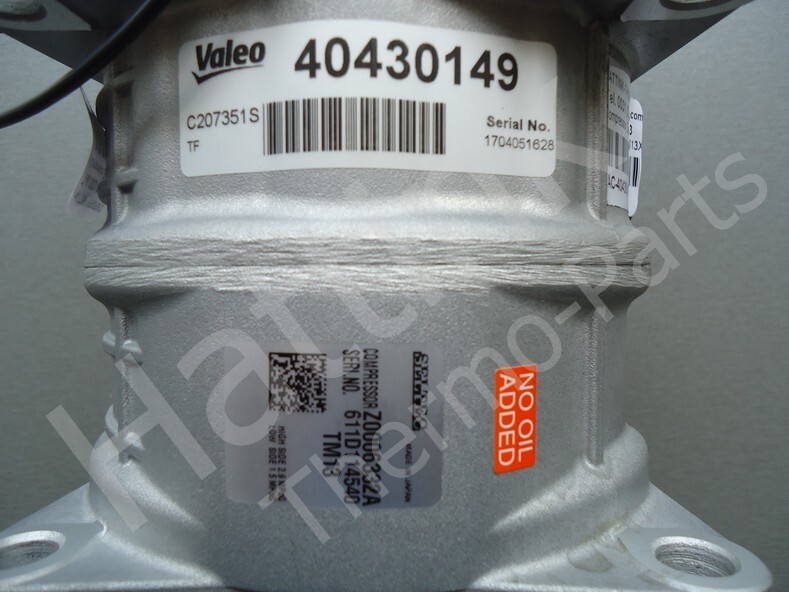

Description on Aircompomp:
Valeo 40430149
C207351S
Seltec Model Z0006332A
Leak test Hi / Lo: 2.9 / 1.5 MPaG
Made in Japan
Net 7300 grams
Examples and applications or
Designations and item codes:
