Pay attention to O-rings
Not included, see photo,
This compressor is supplied without oil
possibly, when ordering look here under
Zexel / Tama / Valeo
Compressors 24V:
Description Air Compressor:
AC Compressor: Seltec TM13XS
Connection: Vertical O-ring
Clutch / Clutch Type: 3-Eye
Voltage: 24V DC
Ø119 mm PolyV 8
Compressor info:
Capacity: 131cc
Refrigerant: (HS) R404A / R134A
Oil type: (HS) ZXL no oil in crankcase
Quantity of oil: 150 ml

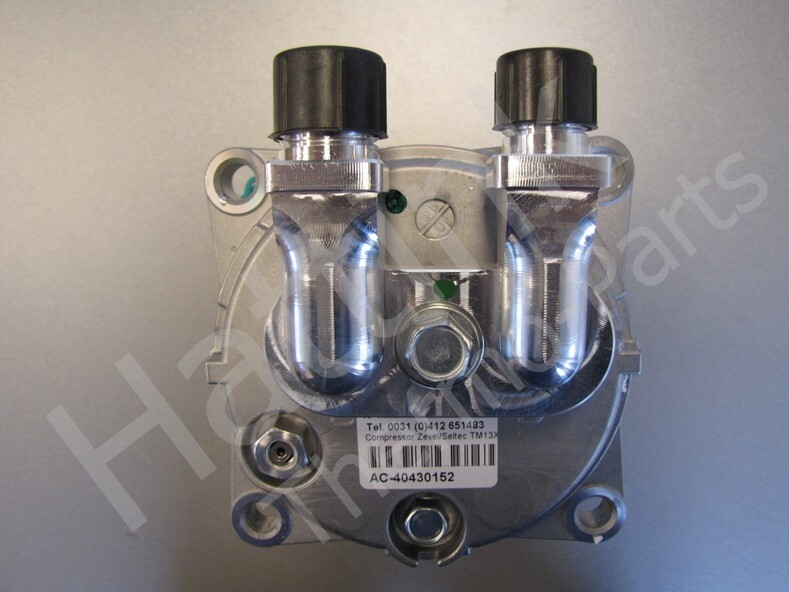

Connection Type: O-Ring
Coupling Suction: (G10) 7/8 "14UNF
Coupling Press: (G8) 3/4 "16UNF
Mounting: 4 mounting ears with hole size Ø10.3
Heart size Hole / Hole 104mm
Cylinders: 6
Tighten torque bolts from Compressor:
35N.m 93.5kgfm

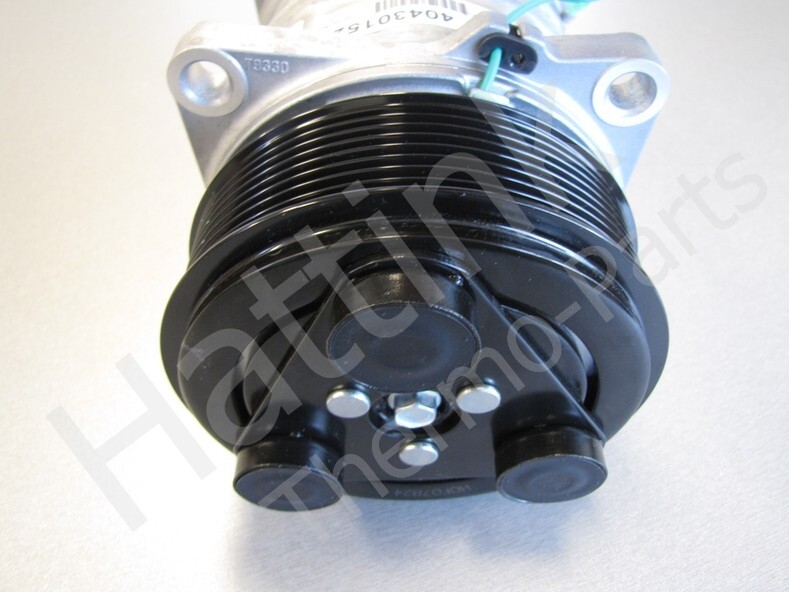

Extra Link / Cluts info:
Pulley with groove: Ø119 mm
Pulley outer edge: Ø 122.8 mm
Voltage: 24V DC
Consumption: 45 Watt 3.75amp

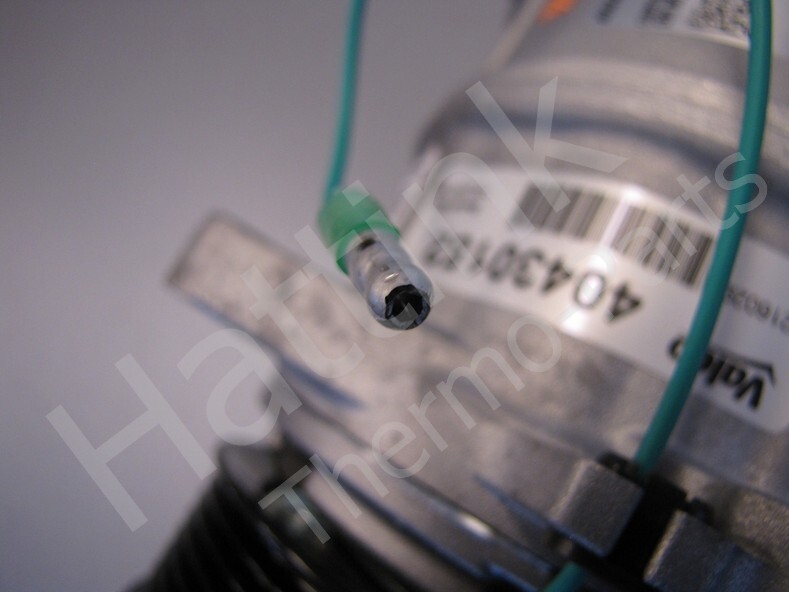

Connection: 1x thread + side / Mass is Body
Number of grooves: 8 Type Poly-V 8
Groove diameter: 3.56 mm
Speed ??range: 700-6000 RPM
Compressor type:
Seltec / Zexel TM13 XS / TM-13XD
O-ring connection
Housing type:
B (mm) 46.5 mm
C (mm) 83.3 mm

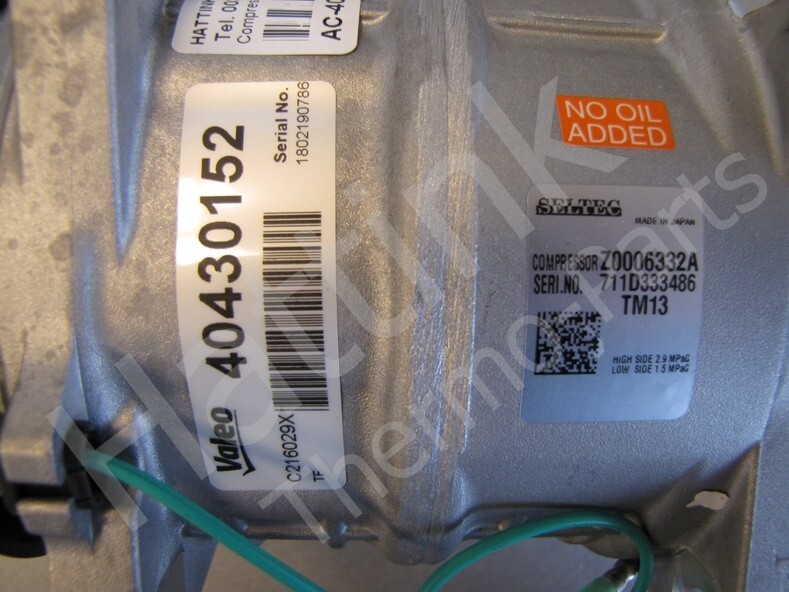

Description on the back of the air conditioning pump:
Seltec
HFC134a Model TM-13XS
Body No.
LUB.ZXL100PG 150 CM³
LEAK.TEST Hi / Lo: 2.9 / 1.5 MPaG
Made in Japan
According to the rules of art.SAE-J639
OE No. 3CMT408
OE Valeo 40430152
Pump air conditioner / AC pump / Air conditioning compressor
Description on article:
Made in Japan
