This Compressor version
QP15 XD (without oil in crankcase)
Is always supplied without
a magnetic clutch / Clutch
Etc. order the correct oil/clutch separately
Look under: Order accessories with it
Compressor for low temperatures
for cooling Direct drive
such as Carrier / Thermoking
Frigosoft / Zanotti / Govet / Kerstner
Konvecta / Davia / Cibin / Webasto.
Zexel/Tama/Valeo
Description Air Conditioning Compressor:

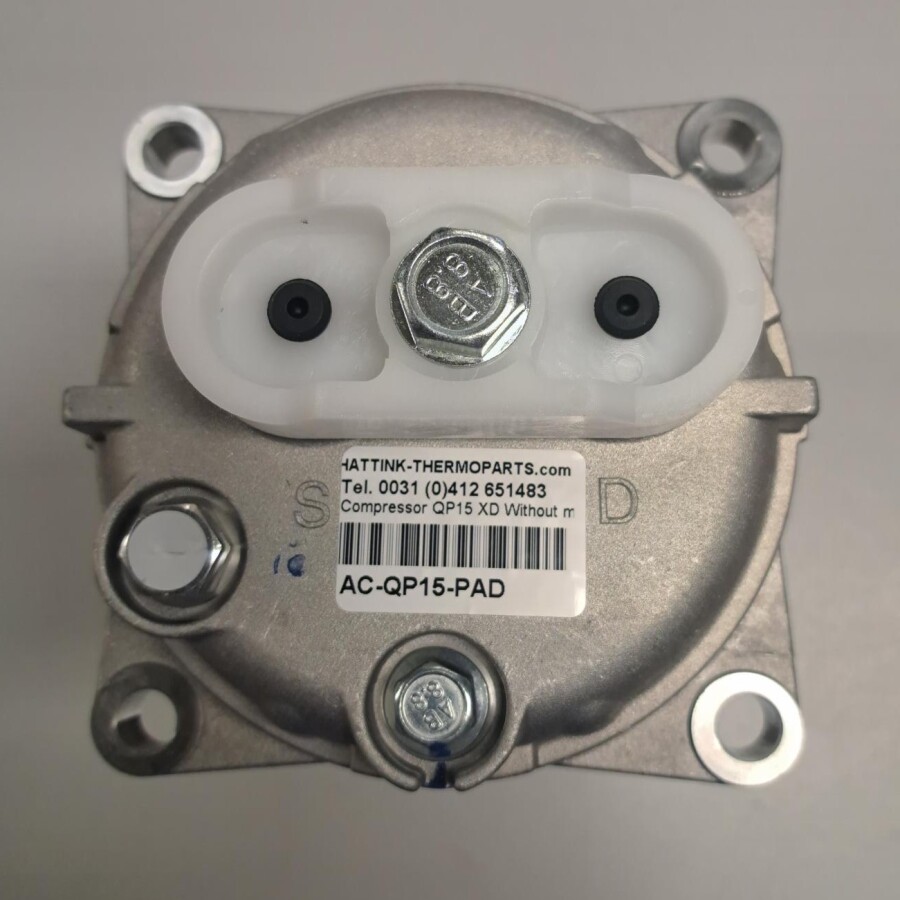

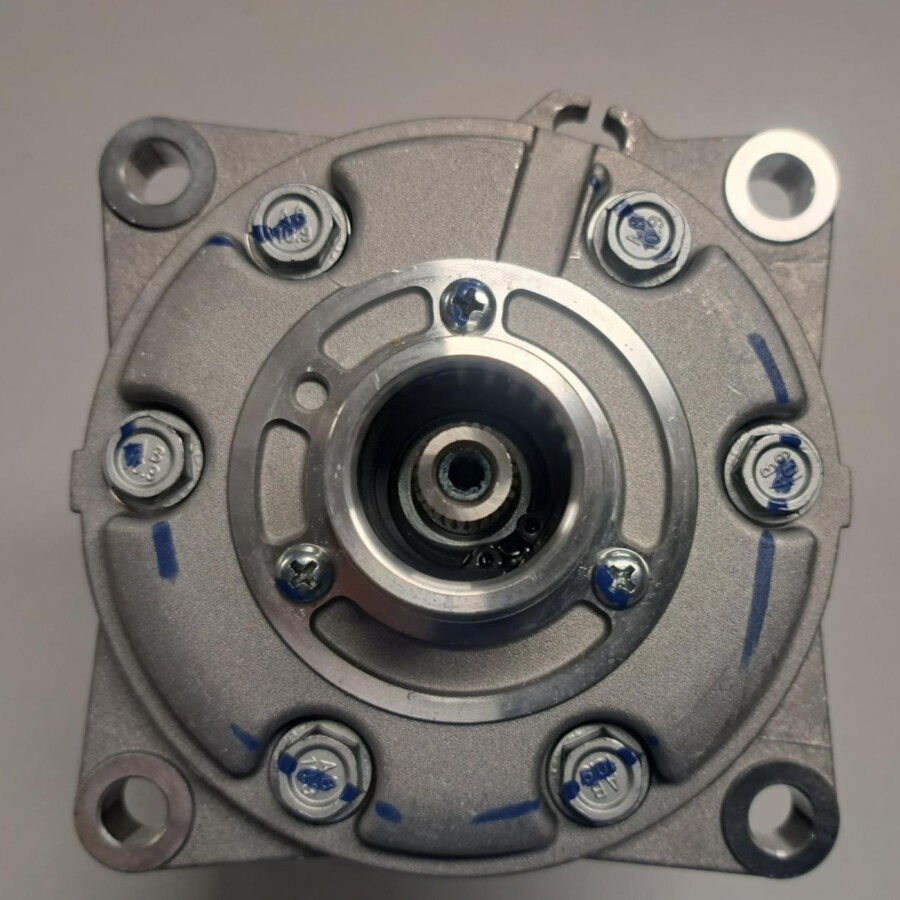

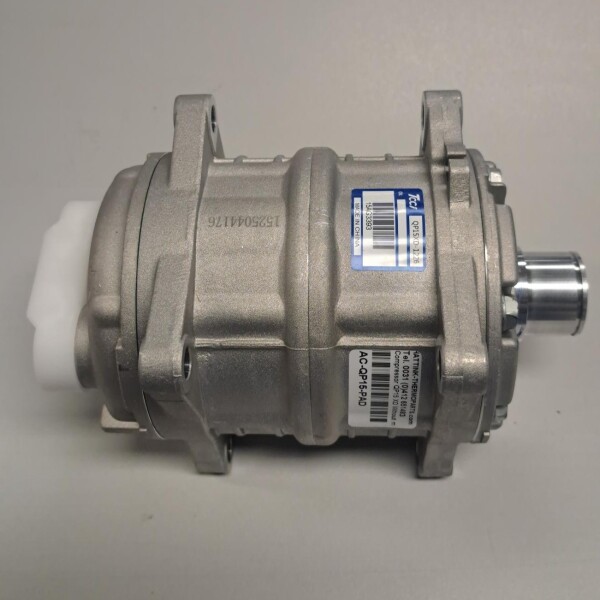

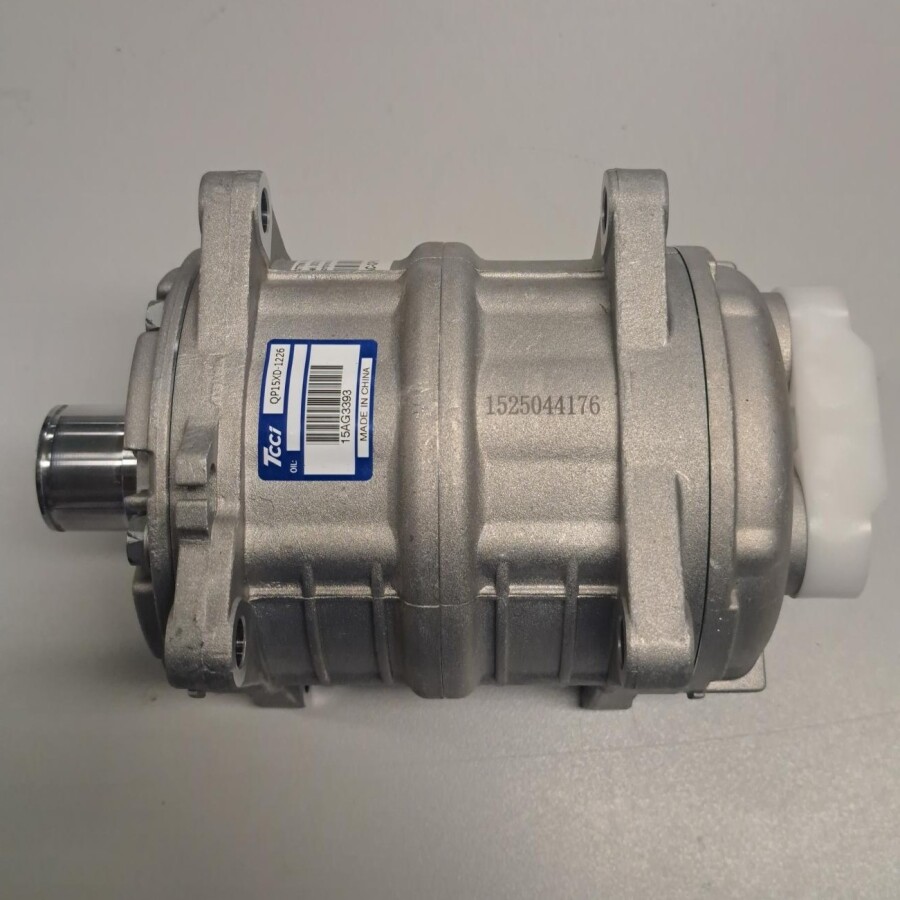

QP15
AC Compressor: QP15, QP15-XD, QP15-XS (QP15)
Connection: Sealing flange
(transfer connection flange from old compressor)
Connection: Sealing flange
(transfer connection flange from old compressor)
Compressor info:
Capacity: 147cc
Refrigerant: R134a, R404
Oil type: Supplied with oil
Oil quantity: 150 ml
Our oil type see Photo
Connection Type: PAD (sealing flange)
Mounting: 4 mounting lugs
with hole size Ø10.3
Center size Hole/Hole 104mm
Cylinders: 6
Rotation: CW/CCW
Speed range: 700-6000 RPM
Compressor type:
Seltec/Zexel QP15 XD
Connection:
Housing type: 1226
W (mm) 39.5 mm / W (mm) 46.5 mm
C (m) 83.3 mm
Description on Air conditioning pump:
Seltec
Model QP15-1226
Body No.1226 without coupling
LUB. CM³
Made in China
Net grams
According to regulations art.SAE-J639
