This compressor model
(TM16XS-TM16XD)
Is always supplied without crankcase oil
If applicable Please order the correct oil separately
Compressor for low-temperature applications
For direct-drive refrigeration systems
such as Thermo King/Carrier
Frigosoft/Zanotti/Govet/Kerstner
Davia/Konvecta/Cibin/Webasto
Zexel/Tama/Valeo
24-volt compressors:

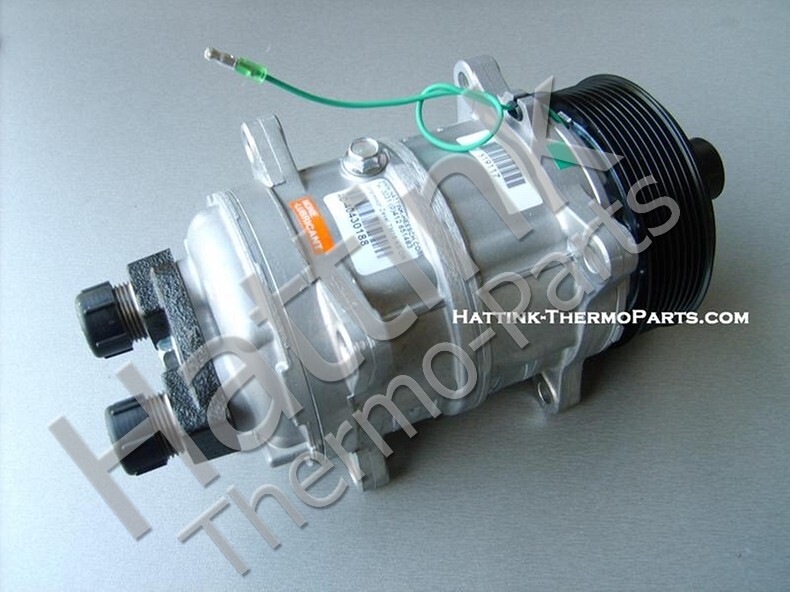

Air conditioning compressor description:
AC compressor: TM16XS (TM16HS)
Connection:
Rotalock / Rotalock O-ring
Clutch type: 3-eye
Voltage: 24V DC
Ø119 mm, 8-groove poly-V pulley
Connection: Horizontal
Compressor info:
Displacement: 163cc
Refrigerant: R134a
Refrigerant: R404a
Oil type: Supplied without oil
Oil quantity:

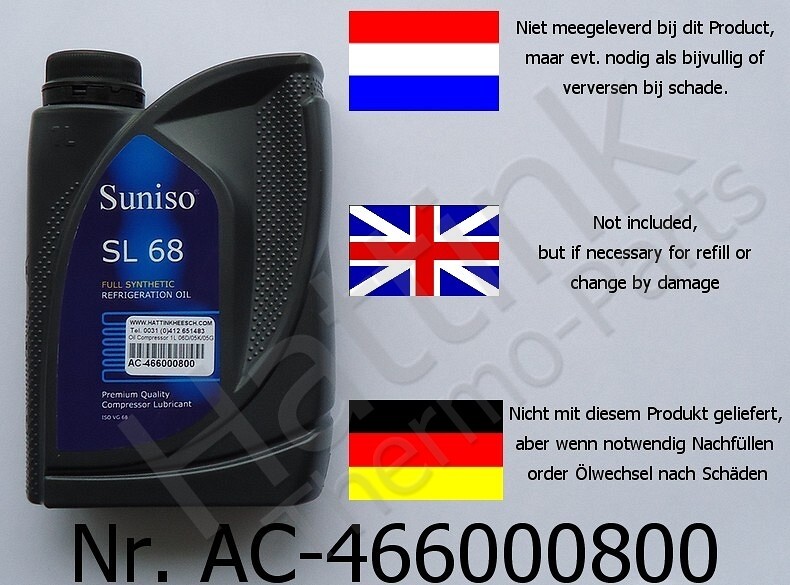

See photo for the oil type we provide
Connection type: Rotalock O-ring
Suction port: (G10) 7/8" 1"-14 UNS
Discharge port: (G10) 7/8" 1"-14 UNS
Mounting: 4 mounting lugs
With hole diameter: Ø10.3 mm
Center-to-center distance between holes: 104 mm
Cylinders: 6
Rotation: CW/CCW (clockwise/counter-clockwise)

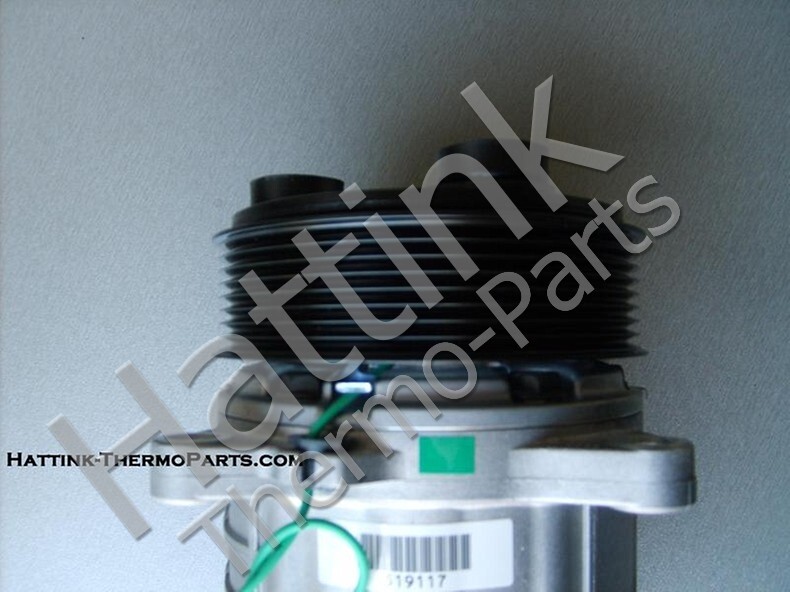

Clutch info:
Pulley diameter: Ø 119 mm
Pulley diameter: Ø 122.8 mm
Voltage: 24V DC
Power consumption: 45 Watts, 1.88 A
Connection: 1x positive wire / Ground via housing
Number of grooves: 8 (Poly-V 8 type)
Groove pitch: 3.56 mm
Operating speed range: 700–6000 RPM
Compressor type:
Seltec/Zexel TM16 XS / TM-16HS / TM-16HD
Connection: Rotalock O-ring
Housing type: Z0006401

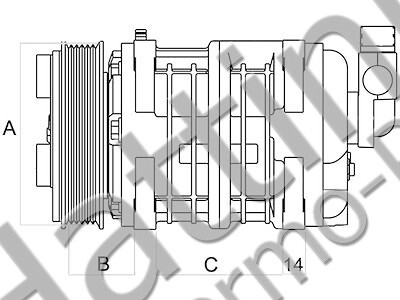

B (mm): 46.5 mm
C (mm): 83.3 mm

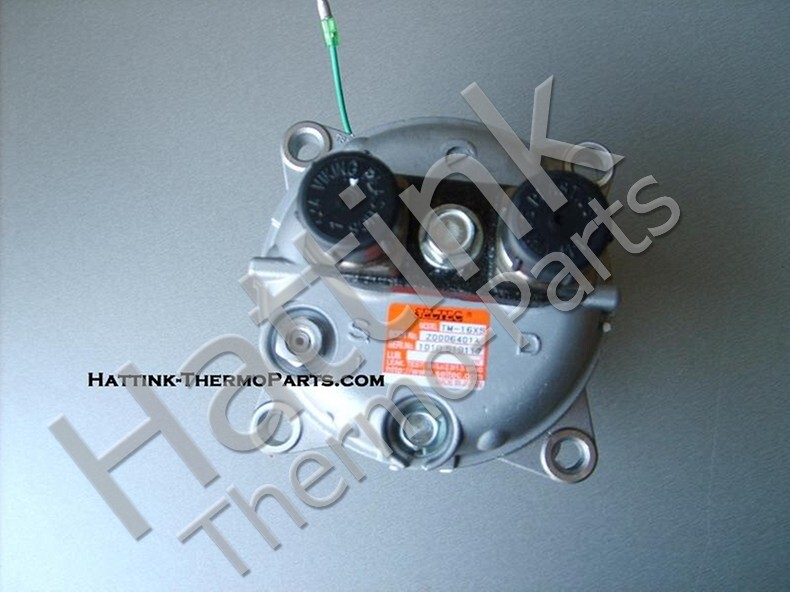

Description on A/C compressor:
Seltec
Model TM-16XS
Body No. Z0006401A
LUB. CM³
LEAK.TEST Hi/Lo:2.9/1.5 MPaG
Made in Japan
According to the rules art.SAE-J639
OE TK-1020668/ TK 1020668
TK-102-668 TK 102-668
OE-C-18-10158-14/ C 18-10158-14
C-181015814/ C 181015814
Not supplied with this product, but required for replacement:

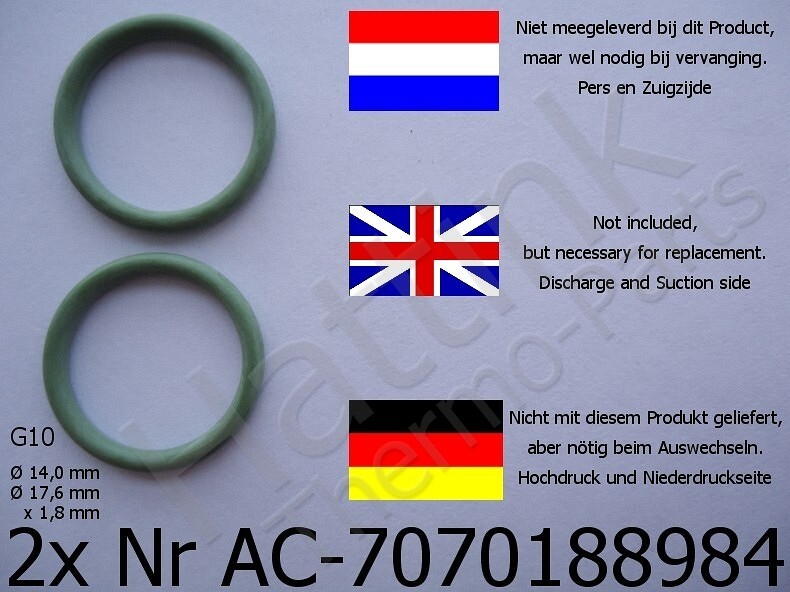

O-ring Press G10
AC-707.0188984
O-ring Press G10
AC-707.0188984
Oil PAG 46
AC-808.13043
