This Compressor version is
Special with a mounting ear less

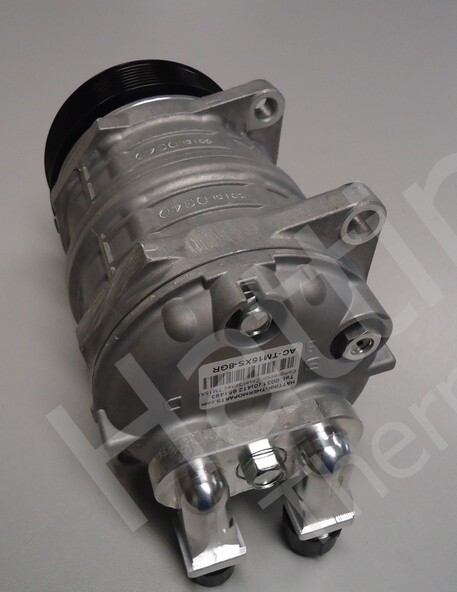

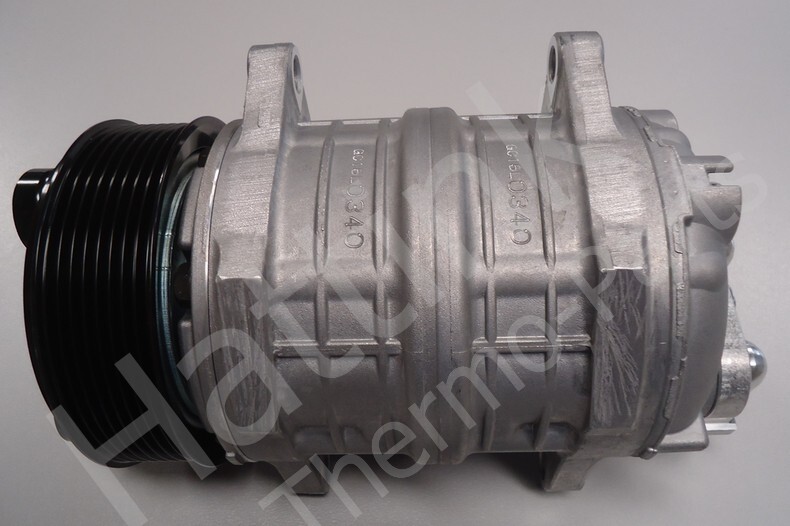

look at photos
TM15XS 8GR 12V B H ORG 3E
Always delivered without crankcase oil
possibly the correct oil separately when ordering
Low Temperature Compressor
for refrigeration Direct drive
such as Thermoking/Carrier
Frigosoft/Zanotti/Govet/Christmasner
Davia/Konvekta/Cibin/Webasto
Zexel/Tama/Valeo
Compressors 12V:
Description Airco Compressor:
AC Compressor:TM15XS)
Connection: O-ring
Clutch Type: 3-Eye
Voltage: 12V DC
Ø119 mm Poly-v 8
Connection: Vertical
Compressor info:
Capacity: 147cc
Refrigerant: R134a
Refrigerant: R404a
Oil type: Supplied without oil
Amount of oil: 150 ml
Oil type of ours see Photo
Connection Type: O-Ring
Clutch Suction:(G10) 7/8" 14UNF
Clutch Press:(G8) 3/4" 16UNF
Mounting: 3 mounting ears
with hole size Ø10.3
Heart size Hole/Hole 104mm
Cylinders: 6
Rotation: CW/CCW
Clutch/Cluts info:
Pulley at groove: Ø 119 mm
Pulley at side edge: Ø 122.8 mm
Voltage: 12V DC
Consumption: 45 Watts 3.75amp
Connection: 1x wire + side / Ground is Body
Number of grooves: 8 Type Poly-V 8
Groove size: 3.56mm
RPM range: 700-6000 RPM
Compressor type:
Valeo TM15 HX TM15 XS
Connection: O-ring
Housing type: Z0006339C
W (mm) 46.5mm
C (mm) 83.3mm
Description on Air conditioning pump:
Seltec
Model TM-15XS
Compressor Z0006339C
High Side 2.9 MPaG
Low Side 1.5 MPaG
Made in Japan
Net 7.4 kg
OE no.
Pump air conditioner/AC pump/Air conditioner compressor
Celtec/Zeltec/Seltek/Zeltek/Sexel
www.autoclima-parts.nl
www.Hattink-ThermoParts.com
Not included with this product, but required for replacement:
O-ring Press G8
