This Compressor version
(TM13XD / TM13XS)
Will always be delivered without carter oil
and magnetic clutch
It is possibly to order the correct oil and Clutch
See below: Adding Accessories
TM13 HS Rotolock vertical
Displacement 131 cc
Refrigerant R404a / R134A
Oil Type ZXL 100PG (or Equiv.)
Oil Quantity 150 cc
Oil Code 80813043
Suction fitting 1" 14UNS
Discharge fitting 1" 14UNS
Compressor Type Zexel TM13
Fittings Rot O.
B (mm) 46,5 mm
C (mm) 83,3 mm
Valeo N204824A
Seltec Z0006329A
OE no. 3CMP785
OE-C-18-10156-05/ C 18-10156-05
C-181015605/ C 181015605
OE-C-18-10156-03/ C 18-10156-03
C-181015603/ C 181015603
OE-C-18-10156-11/ C 18-10156-11
C-181015611/ C 181015611
OE-C-18-10156-01/ C 18-10156-01
C-181015601/ C 181015601
OE-C-18-10156-09/ C 18-10156-09
C-181015609/ C 181015609
OE-C-18-10156-07/ C 18-10156-07
C-181015607/ C 181015607

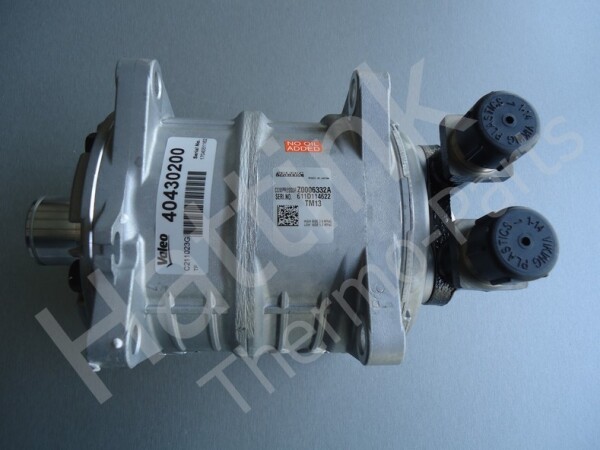

Description on Article:
Valeo / N204824A / SAE-J639 / B2/ T9430
17 / 2 / 3 / SELTEC / HFC-134a / G312E0019
BODY No. ZOOO6329A / LUB. ZXL100PG 150cm³
LEAK. TEST Hi/Lo:2.9/1.5 MPaG / 16
Made in Japan
5,1 kg
