Air Conditioning Pump / Air Conditioning Pump
AC Pump / Air Conditioning Compressor
Caution!!! No oil included in the compressor

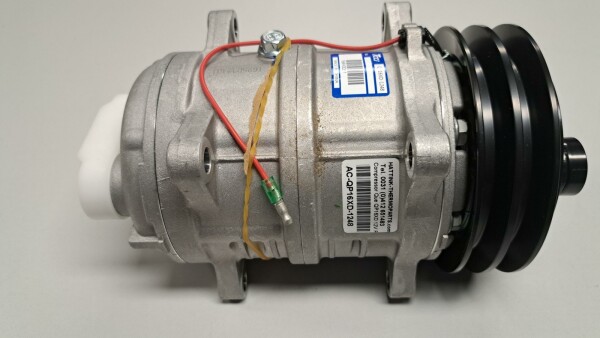

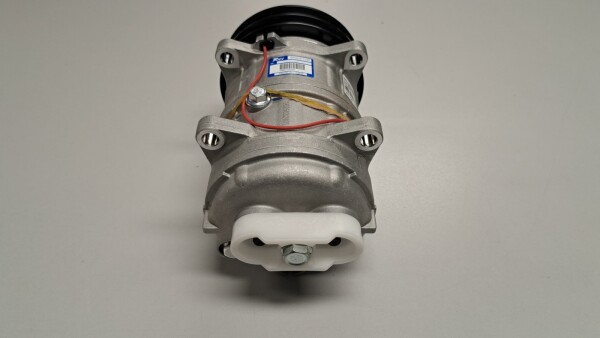

Compressor QP16 XD 12V
Supplied as TM16XD-1248
With a sealed PVC sealing flange
You can select the correct one yourself
or reuse the existing one. and is interchangeable with:
Type: Compressor (Connecting Flange Type)
QP16HD-1180 (Vertical O-ring).
QP15XD-1635 (Horizontal O-ring)
AC-40430047 (Vertical O-ring).
AC-40430044.1 (Vertical O-ring).
AC-40430047.1 (Horizontal O-ring)
AC-40430173 (Horizontal O-ring)
AC-40430177 (Vertical O-ring).
Compressor QP16 XD 12V
Interchangeable for TM16XD-1248
Capacity/Displacement: 162.9 cc
Cylinder No.: 6
Refrigerant: R134A/R404a/R1234yf/R452a
Oil Type:
Pulley Diameter: Ø 132 (135) mm
Voltage: 12V
Number of Grooves: 2
Groove Type: 2A
Type: 3-eye
Groove Width: 12.7 mm
Compressor Type: Que QP16 XD
Model: 1248
You can assemble this compressor with the correct connecting flange
or transfer the old one by removing the center bolt.
Oil Type: According to Specifications Vehicle-
If applicable
See "Order Accessories"
If applicable
See "Order Accessories"
Air Conditioning Car/Truck R134a setting: AC-80813043
Carrier Transicold R134a/R404a: AC-656009500 (1L)
Thermo-King R134a/R404a/R452a: HP-203-513 (1L)
R1234yf AC-80813140 / AC-80813130
Amount of oil to be added
required: 150ml
Description on Item:
Logo QUE/TCCI
TCCI QP16XD-1248
Oil: 500cc
Refrigerant: R134a/R404a/
Made in China
7200 grams
OE AC-QP16XD-1248/AC QP16XD-1248
AC QP16XD1248/AC-QP16XD 1248
Also the same as the QP 16XD - with the correct pulley and voltage
This one is normally without a connection, so
We sometimes also sell it with a connection
You can then transfer the old one
IndelB Autoclima parts
IndelB parts
Autoclima Netherlands
IndelB Netherlands for IndelB
parts
Below Descriptions, modifications
and applications of various article codes
Copying the text below is prohibited
Que QP16 HD/Que QP16 XD
Que QP16 XD/Que QP16 XD
Que QP16 HD/Que QP16 XD
Que QP16 XD/Que QP16 XD
TM16XD-1248
TM16XD1248
TM16XD 1248
20-QP16XD-1248
AC-QP16XD-1248
Compressor
