Air Conditioning Pump / Air Conditioning Pump
AC Pump / Air Conditioning Compressor
Caution!!! No oil included in the compressor
Compressor QP15 XS 12V
Supplied as QP15 XS-1226
With a sealed PVC sealing flange
You can select the correct one yourself or reuse
the existing one. and is interchangeable with:
Type: Compressor (Connecting Flange Type)
QP15XS-1226 (Sealed Interchangeable Flange)
QP15XS-1239 (Vertical O-ring)
QP15XS-1241 (Vertical O-ring)
QP15XS-2072 (Vertical O-ring)
AC-40430168 (Vertical O-ring)
AC-40430166 (Horizontal O-ring)
AC-40430010 (Horizontal Rotolock)
AC-40430170 (Horizontal Rotolock)
AC-40430206 (Rotolock Vertical).
AC-40432026 (Vertical O-ring).

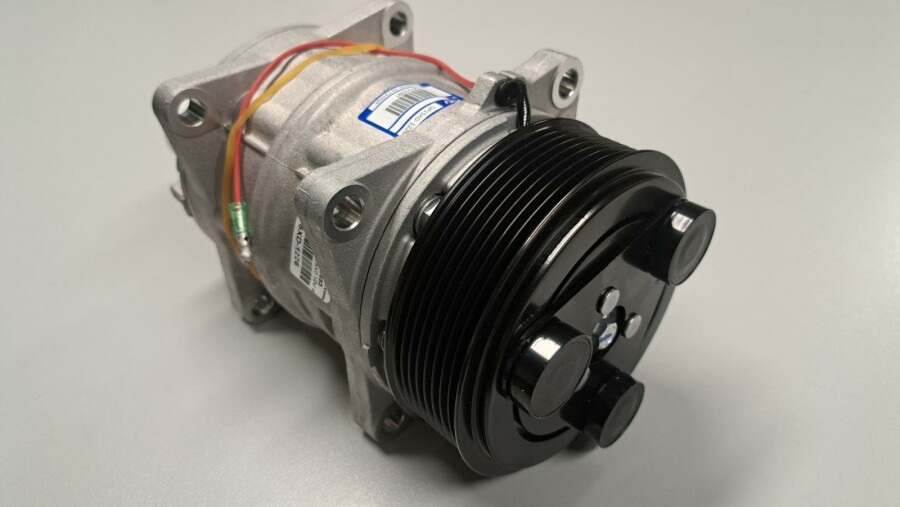

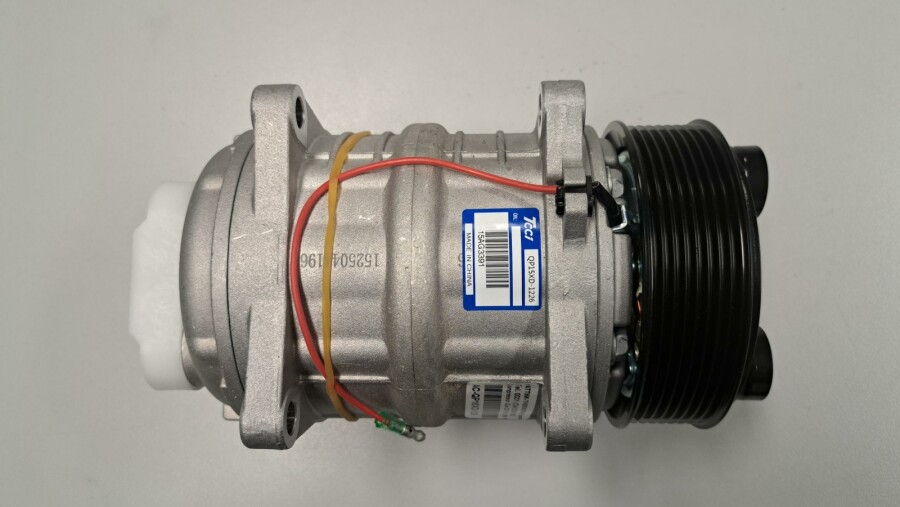

Compressor QP15 XD-126
Ø119mm Poly-V 8
Capacity/Displacement: 146.7cc
Cylinder No.: 6
Refrigerant: R134A/R404a/R1234yf/R452a
Oil Type:
Pulley Diameter: Ø 119 mm
Voltage: 12V
Number of Grooves: 8
Groove Type: Poly-V
Groove Diameter: 3.56mm
Compressor Type: QP15 XD
Model: 1226

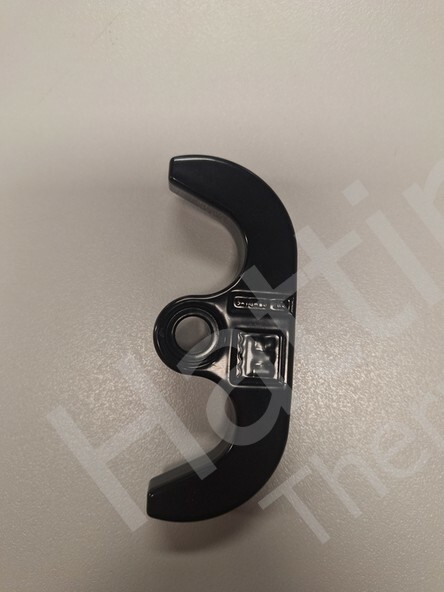

You can assemble this compressor with the correct connecting flange
or transfer the old one by removing the middle bolt.
Oil type: According to vehicle specifications
If necessary
See "Order Accessories"
Air Conditioning Car/Truck R134a setting: AC-80813043
Carrier Transicold R134a/R404a: AC-656009500 (1L)
Thermo-King R134a/R404a/R452a: HP-203-513 (1L)
R1234yf AC-80813140 / AC-80813130
Oil quantity that needs to be filled: 150ml

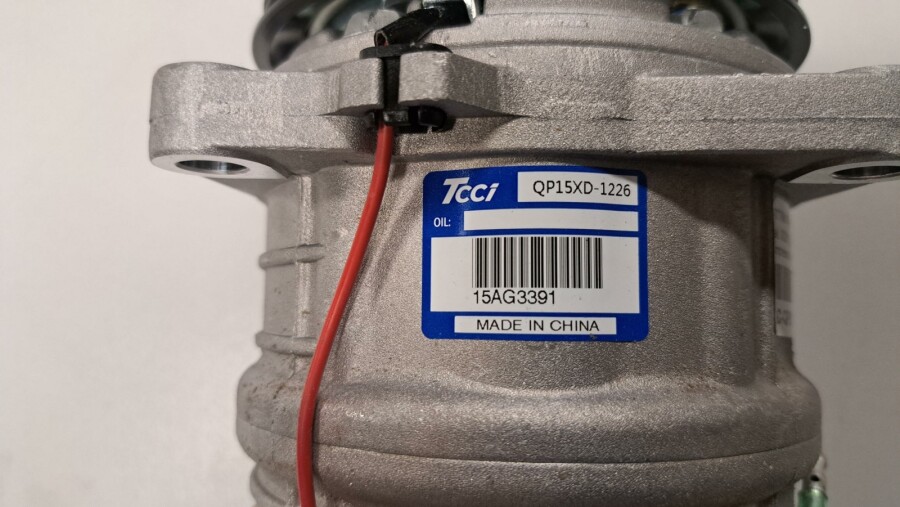

Description on item:
Logo QUE/TCCI
TCCI QP15XD-1226
Refrigerant: R134A/R404a/R1234yf/R452a
Made in China
7200 grams
Also the same as the QP 15XD - with the correct pulley and voltage
This one is normally without a connection, so
we sometimes also sell it with a connection
You can then transfer the old one
IndelB Autoclima parts
IndelB parts
Autoclima Netherlands
IndelB Netherlands for parts IndelB
Below Descriptions, modifications
and applications of various article codes
Copying the text below is prohibited.
Que QP15 HD/Que QP15 XD
Que QP15 XD/Que QP15 XD
TM15XD-1226
TM15XD1226
TM15XD 1226
