This Compressor version
TM13XS-TM13XD)
Is always supplied without crankcase oil
and magnetic clutch/clutch
If necessary, order the correct oil/clutch separately
Look under:
Attention!!! No oil supplied in compressor

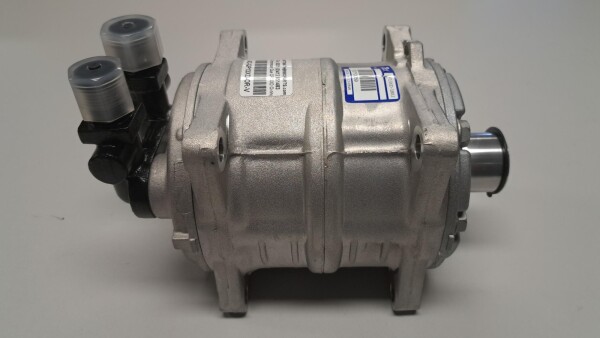

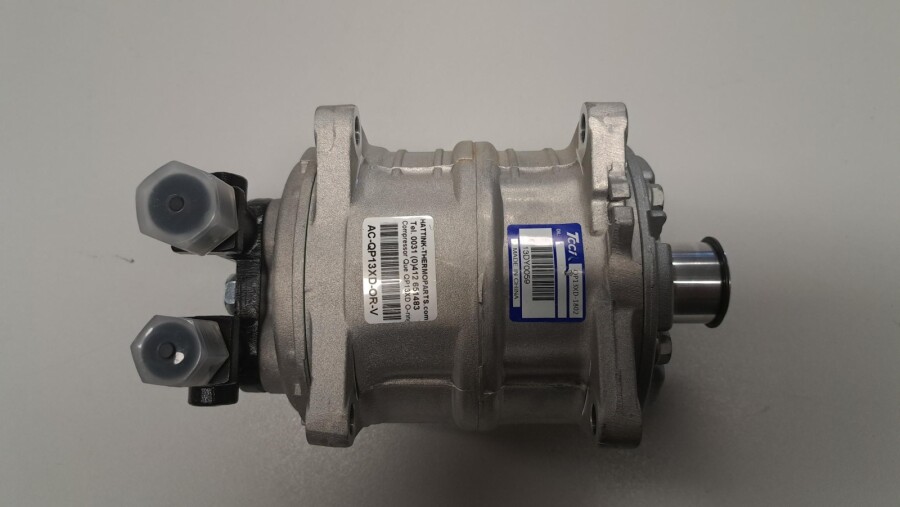

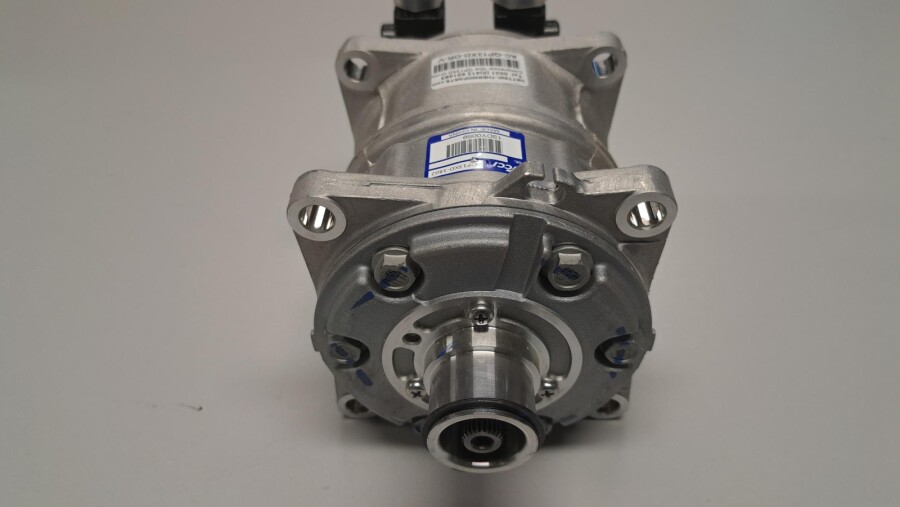

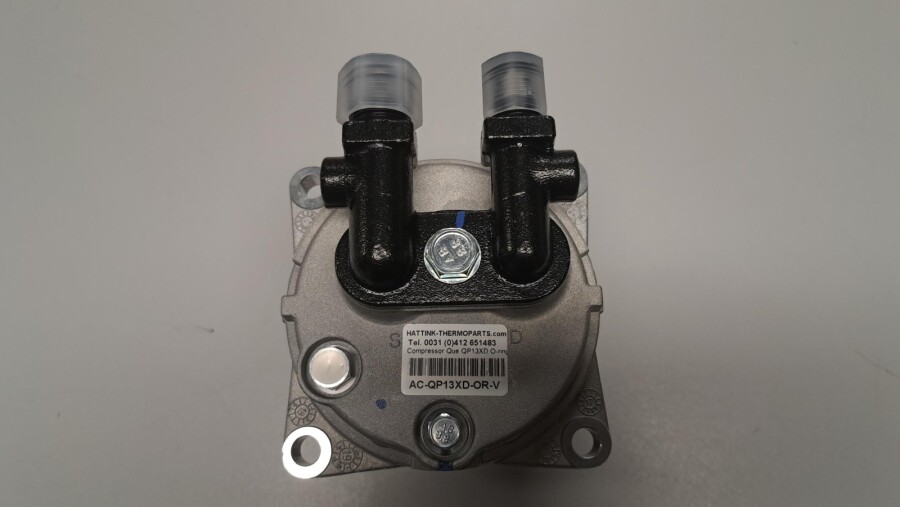

QP13XD Air Conditioning Pump Que
Compressors :
Accident Compressor Description:
AC Compressor: QP13XD
Interchangeable for TM13XD
Capacity: 131cc
Refrigerant: (XS) R134A/R404a
R452a
Mounting: 4 mounting lugs
with hole size Ø10.3
Center size Hole/Hole 104mm
Cylinders: 6
Rotation CW/CCW
Cooling connection: Vertical O-ring
Oil type: According to specification vehicle-
Optional
See Order Accessories
Air Conditioning Car/Truck R134a install: AC-80813043
Transicold Carrier R452a/R134a/R404a :AC-656009500 (1L)
Thermo-King R452a/R134a/R404a :HP-203-513 (1L)
Amount of oil to be filled
to be: 150ml
W (mm) 46.5 mm
C (mm) 83.3 mm
Description on item:
Logo QUE
QP13XD
Made in China
7100 grams
Below descriptions, modifications
and applications of various article codes
Copying the following texts is prohibited
QP-13HD/QP13HD/QP-13XD
QP13XDQP-13HD/QP13HD
Compressor
OE CO-6095CAXD/CO6095CAXD
