Cutting pump 24V Jabsco
Model 18590-2094
Self Priming
Macerator Pump
With Dry Protection
Features
Pump: self-priming flexible impeller with
Wear plate made of stainless steel
Impeller: Jabsco Nitrile compound
Information about the pump:
New Model 18590-2094
Macerator: stainless steel cutter reduces
particle size up to 3 mm. New 4
blade design.
Seal: Lip Type
Ports: Inlet - 1-1 / 2 "(38mm) hose tail
and 1-1 / 2 "N.P.T. (male)
Exhaust - 1 "(25mm) hose tail
NEW
Model 18590-2094
Motor: permanent magnet type, complete
Enclosed, with stainless steel shaft
Including dry-running protection
that switches off the pump. Powder coated
housing with sealed end bells and bearings.
Complies with USCG regulation
183,410 and ISO 8846 MARINE for
Ignition protection.
Weight: 5 lb (2.3 kg) Approx.
SPECIFICATION
Model 18590-2094
Priming - 5ft when wet
4ft when dry
MAIN CAPACITY AND FLOW RATES
AMPS
Delivery head Meter GPM Liter 12 Volt 24 Volt
0 0 12.5 47 14.0 7.6
5 1.5 11.5 44 14.5 7.8
10 3 10.5 40 15.0 8.1
15 4.5 9.0 34 16.0 8.6
20 6 7.5 28 16.5 8.9
Flow rate and amperage will vary slightly depending on
loading pump (design sanitary system).
VARIATIONS AVAILABLE
MODEL NO. DESCRIPTION
18590-2092 12 Volt EMC
18590-2094 24 Volt EMC
Grinding capacities - able to reduce waste
up to a particle size of max. 1/8 "(3 mm)
Able to pass on waste,
toilet paper, facial tissues,
cigarettes, cigars, pieces
soft fruits or vegetables less
than 2.5 cm, fish scales, or
bait residue. Not designed to
pass fruit kernels, rags, wet
strength kitchen towels,
tampons or sanitary napkins.
APPLICATIONS
Model 18590-2094
WASTE DISPOSAL
The Jabsco 18590 series DC grinder pump unit is the
ideal solution for emptying sea tanks when
not in a discharge restricted area. Self-priming up to 1.5 meters this
pump will empty a typical capacity of 115 liters (30 gallons)
refuel in less than 3 minutes. Duty cycle of the pump is 15
minutes continuously, which means a 180 gallon (680 liters)
can be emptied in one operation
It is recommended that recovery tanks are flushed
several liters of water after each pump. This will
reduce the possibility of sustained sediment build-up
in the tank, which could cause a possible blockage.
FISHBOX AND LIVEWELL TANK EVACUATION
The Jabsco Macerator Pump is the ideal pump for the
emptying fish box and live well bins. Very often
the live well tank will be above the waterline of the boat,
when this is the case, gravity can be used to determine the
livewell tank. If not installed in this format, it is beneficial to use the Jabsco macerator pump for evacuation
because of its self-priming properties and also the grinding
properties.
APPLICATIONS
WASTE DISPOSAL
FISHBOX AND LIVEWELL TANK EVACUATION
Able to pass on waste,
toilet paper, fish scales or
bait residue. Not designed
pass rags, kitchen
towels, tampons, wet
wipes or sanitary napkins.
Fishing boxes are usually placed in the floor of the
vessel and are often located below the waterline or alone
partially above the waterline. Again the Jabsco
Macerator pump has the characteristics that lend itself to
itself to this application. The bait remnants
particles of ice, fish scales and everything else
could possibly be found in the Fish-Box
managed to buy the Jabsco Macerator Pump, and get it yourself
The priming capabilities are perfect for fish box installations
common to many of today's sport fishing boats.
GENERAL INSTALLATION SUGGESTIONS
The pump can be mounted in any direction without
loss of performance. However, it is recommended that if
the pump is mounted vertically than the pump head
mounted under the motor (pump head pointing down)
Use the supplied rubber grommets to absorb vibrations
The Macerator pump can be placed directly in a
1-1 / 2 "(38 mm) NPT tank flange or female pipe fitting.
If you need to attach the inlet port to a pipe fitting this may be necessary
removing the hose tail port, this can be done with
a hacksaw. Wrap gate wires with a few turns
Teflon tape and screw the pump assembly into the tube
appropriate. Hand tighten, not too tight.
Note: An air leak somewhere in the suction side of
the plumbing system can cause prolonged drought
run. All suction connections must be airtight and
free from sharp bends

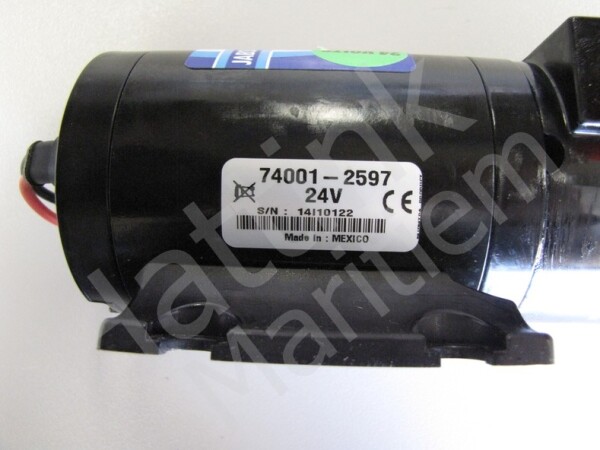

Description on article:
Jabsco
24 volts
Ignition Protected Motor Complies With USCG
183.410 and ISO 8846 Marine
Made in Mexico
S/N14I56793
74001-2597 24V
USA UK Canada Germany Japan Italy
Description on packaging
Pump Sealed Macerator HD 24CE
S/N: 18B40297
Model: 18590-2094
Made in Mexico
